TOORX MSX3000 - Assembly Step（11

31

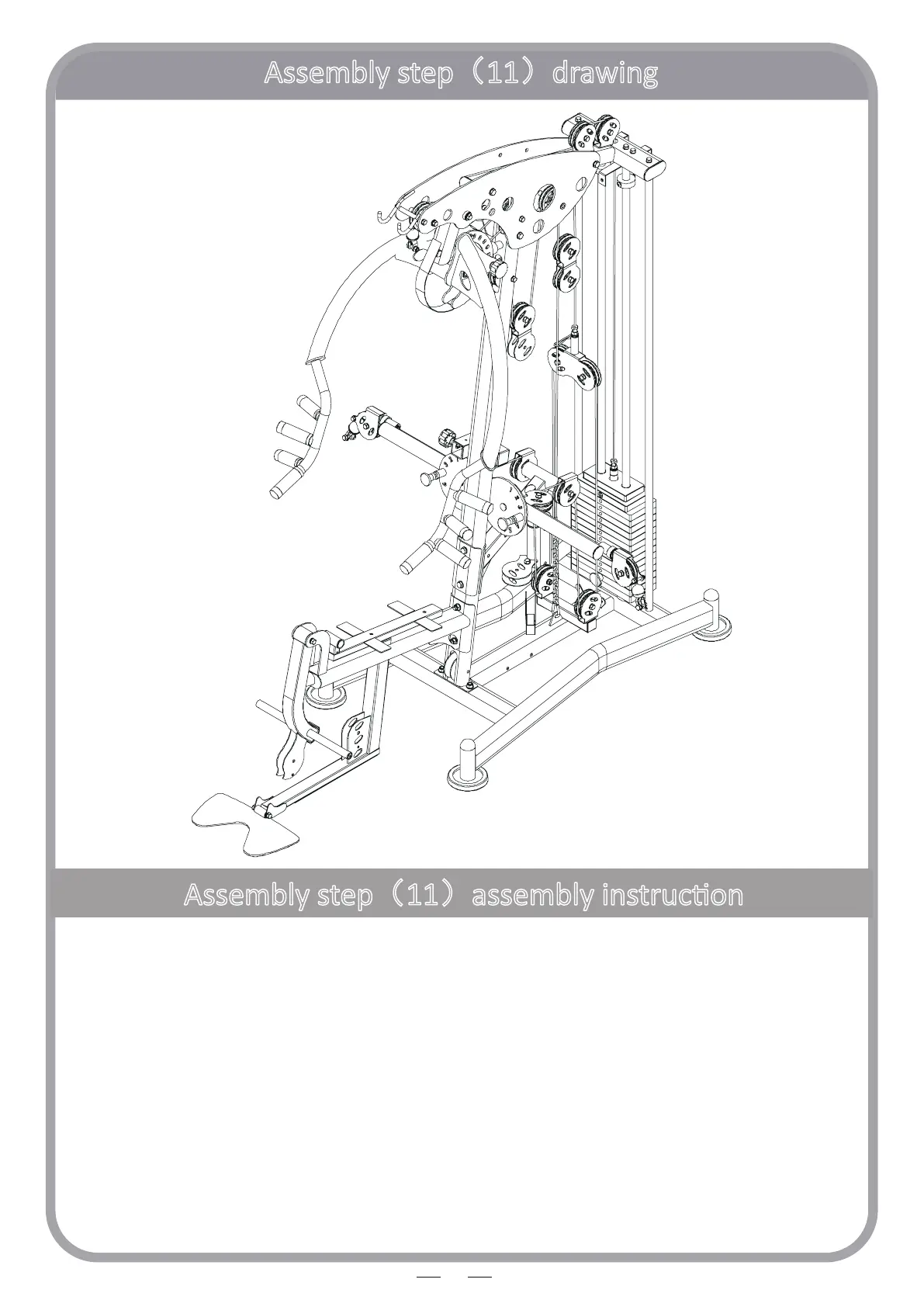

Assembly step（11）drawing
Assembly step（11）assembly instrucon
1. Fix 8pcs pulley(55) fastening on pint: K,L,N,O,P,Q,R,S,T using:
M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23)
2
. Fix 2pcs pulley(55) fastening on pint: M,R using:
M10*45 hexagon bolt(52),Ф10 washer(5)
3
. Take buerfly arm cable(64) end equipped ball head down
4
. Buerfly arm cable(64)head down end from point P according through
point: L,M,N,O,P,Q,R,S,T final installed ball head back to buerfly arm cable(64)
5
. Installed M8*45 hexagon bolt(63),Ф8 washer(15),M8 lock nut(11) near point: K,T
