TOORX MSX3000 - Assembly Step（9

26

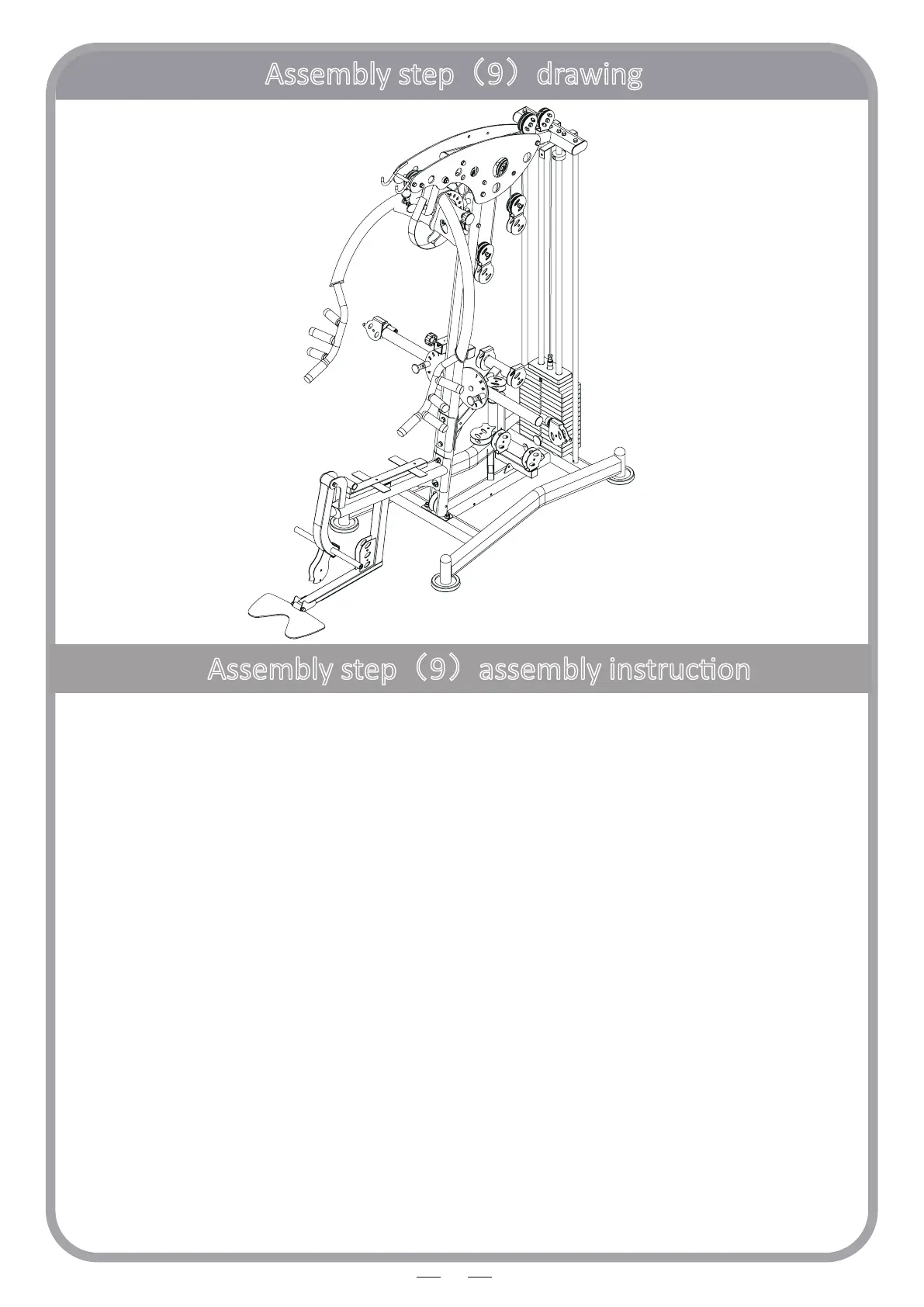

Assembly step（9）drawing
Assembly step（9）assembly instrucon
1. Fix 4pcs pulley(55) fastening on pint: A ,B,C,E using:
M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23)
2
. Fix 2pcs pulley(55) fastening on pint: I,D using:
M10*130 hexagon bolt(50),pulley spacer(57),Ф10 washer(5),M10 lock nut(23)
3
. Fix pulley(55) fastening on pint G using:
M10*130 hexagon bolt(50),Ф10 washer(5),M10 lock nut(23)
4
. Fix pulley(55) fastening on pint H using:
M10*45 hexagon socket buon head bolt(63),Ф10 washer(5),M10 lock nut(23)
5
. Fix pulley(55) fastening on pint F using:
M10*115 hexagon bolt(51),Ф10 washer(5),M10 lock nut(23)
6
. Fix M10*130 hexagon bolt(50),connecng sleeve(56),Ф10 washer(5),M10 lock nut(23)
fastening on le cover, right cover(near point I)
7
. Remove lat pull cable(58) end which equipped ball head
8
. Connect lat pull cable(58) terminal and selector rod,
head down end from point A in turn through point: B,C,D,E,F,G,H,I,
final installed ball head back to cable
