TOORX MSX3000 - Assembly Step 12: Support Plates and Pulley Arrangement

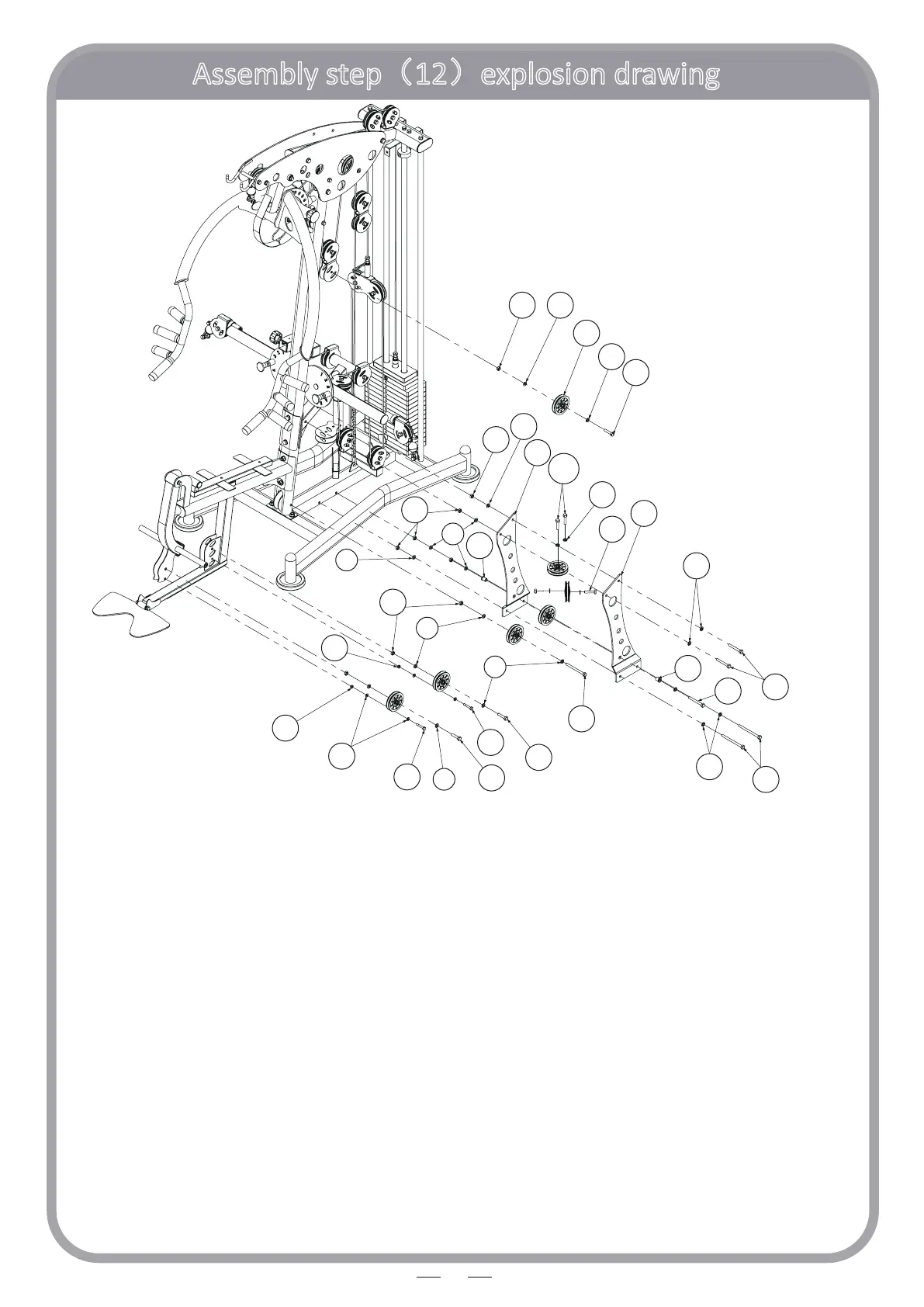

Assembly step（12）explosion drawing
32
5
5
5
5
5
5
5
23
23
23
52
15
51
50
65
66
67
67
52
63
63
11
11
23
55
52
52
162
69
68
5
5
5
5
No. Descripon Note Qty.
5 washer Φ10 22
11 lock nut M8 2
15 washer Φ8 4
23 lock nut M10 10
50 hexagon bolt M10*130 2
51 hexagon bolt M10*115 1
52 hexagon bolt M10*45 4
55 pulley Φ95*26 7
63 hexagon bolt M8*45 2
65 hexagon bolt M10*75 2
66 hexagon bolt M10*85 1
67
powder metallurgy
sleeve
Φ10 2
68 le support plate 1
69 right support plate 1
162 hexagon bolt M10*40 2
