TOORX MSX3000 - Assembly Step（12

Assembly step（12）assembly instrucon
33

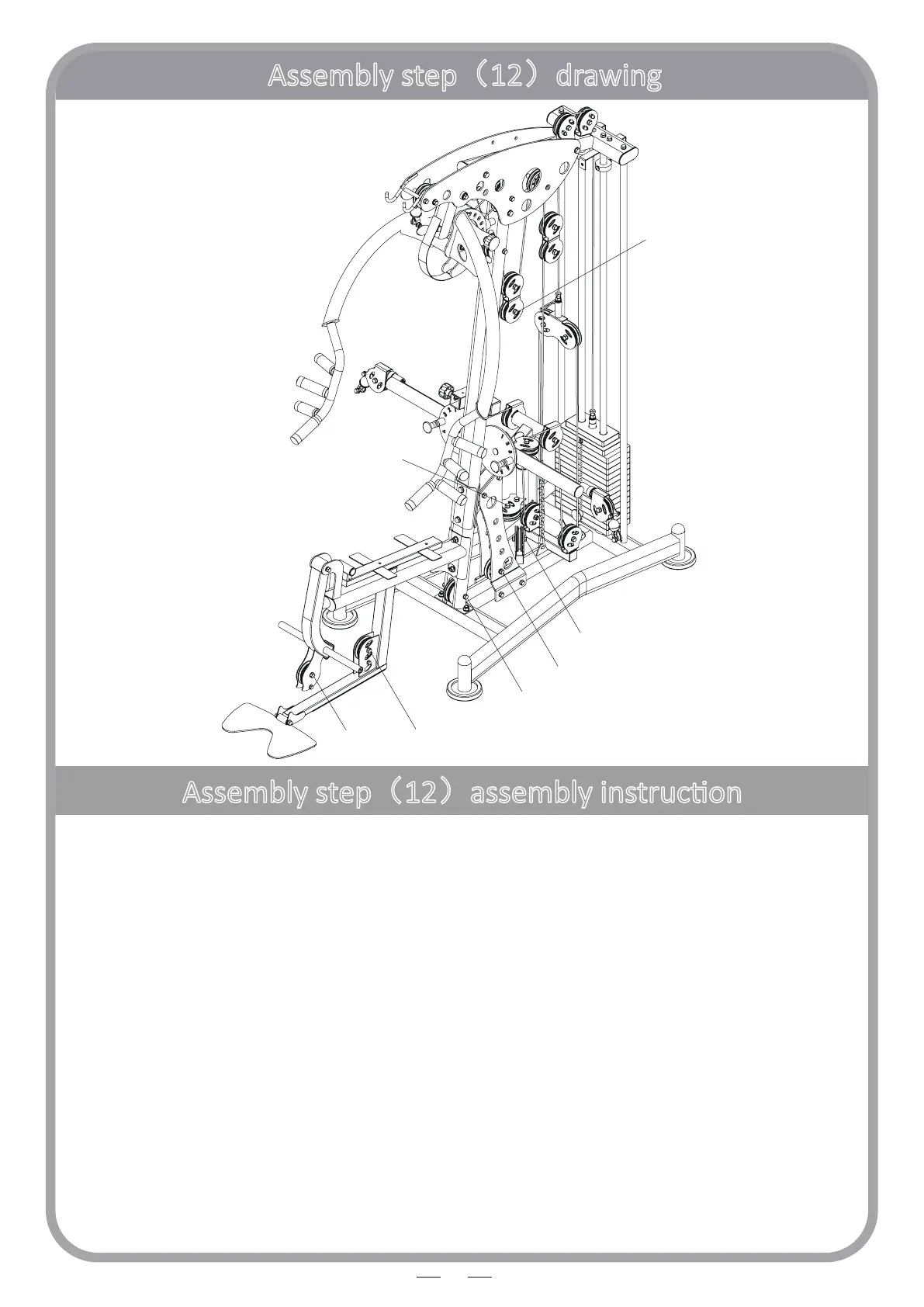

Assembly step（12）drawing
A1
U
V
X
Y
Z
W
1. Fix le support plate(68) & right support plate(69) fastening on
ground frame and front frame using:
M10*130 hexagon bolt(50), M10*75 hexagon bolt(65), Ф10 washer(5),M10 lock nut(23)
2
. Fix 4pcs pulley(55) fastening on pint: V,W,Z,A1 using:
M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23)
3
. Fix pulley(55) fastening on pint Y using:
M10*115 hexagon bolt(51),Ф10 washer(5),M10 lock nut(23)
4
. Fix pulley(55) fastening on pint X using:
M10*85 hexagon bolt(66),Ф10 washer(5),powder metallurgy sleeve(67),M10 lock nut(23)
5
. Fix pulley(55) fastening on pint U using:
M10*40 hexagon bolt(162),Ф10 washer(5)
6
. Installed M10*40 hexagon bolt(162),Ф10 washer(5) near point: U
7
. Installed M8*45 hexagon bolt(63),Ф8 washer(15),M8 lock nut(11) near point: A1,Z
