TOORX MSX3000 - Assembly Step 2: Counterweight System Setup

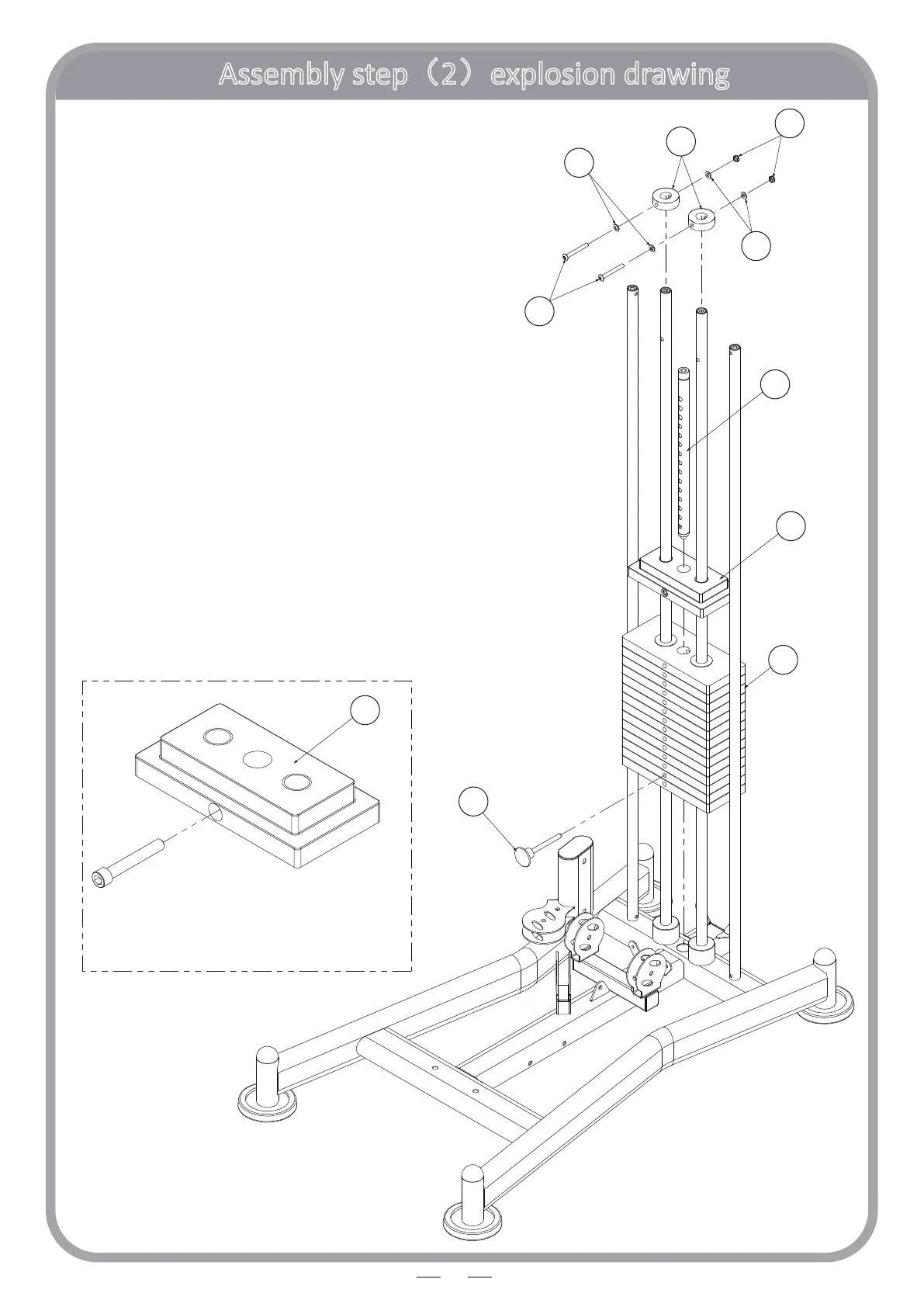

Assembly step（2）explosion drawing
10
14
Topmost counter weight (14)
Paral enlarged drawing
10
9
11
15
15
12
14
13
16
No. Descripon Note Qty.
9
counter weight rubber
cushion
Φ60*Φ26*20
2
10
hexagon socket buon
head bolt
M8*70
2
11 lock nut M8
2
12 selector rod 92 KG
1
13 counter weight 6 KG
14
14 topmost counter weight 8 KG
1
15 washer Φ8
4
16 weight pin Φ10*100
1
