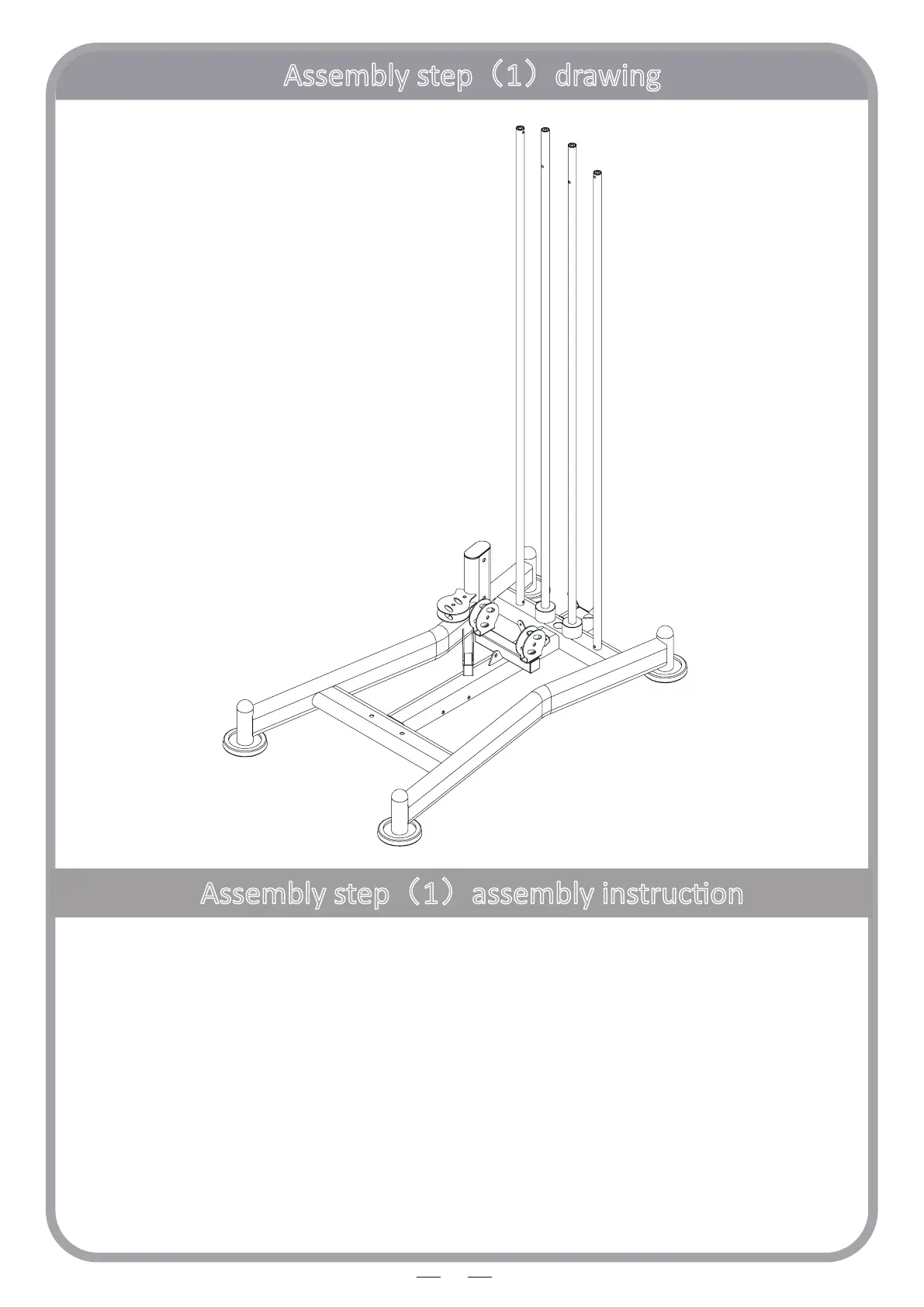

Assembly step（1）drawing
9
Assembly step（1）assembly instrucon
1. Fix back support rod(3) on ground frame(1) using:
M10*65 hexagon bolt(4),Ф10 spring washer(7),Ф10 washer(5)
2
. Fix guide rod(2) on ground frame(1) using:
M10*20 hexagon bolt(6),Ф10 spring washer(7),Ф10 washer(5)
3
. Put rubber damper(8) on guide rod(2)
CAUTION: All bolts should be ghtening.
