TOORX MSX3000 - Assembly Step（6

19

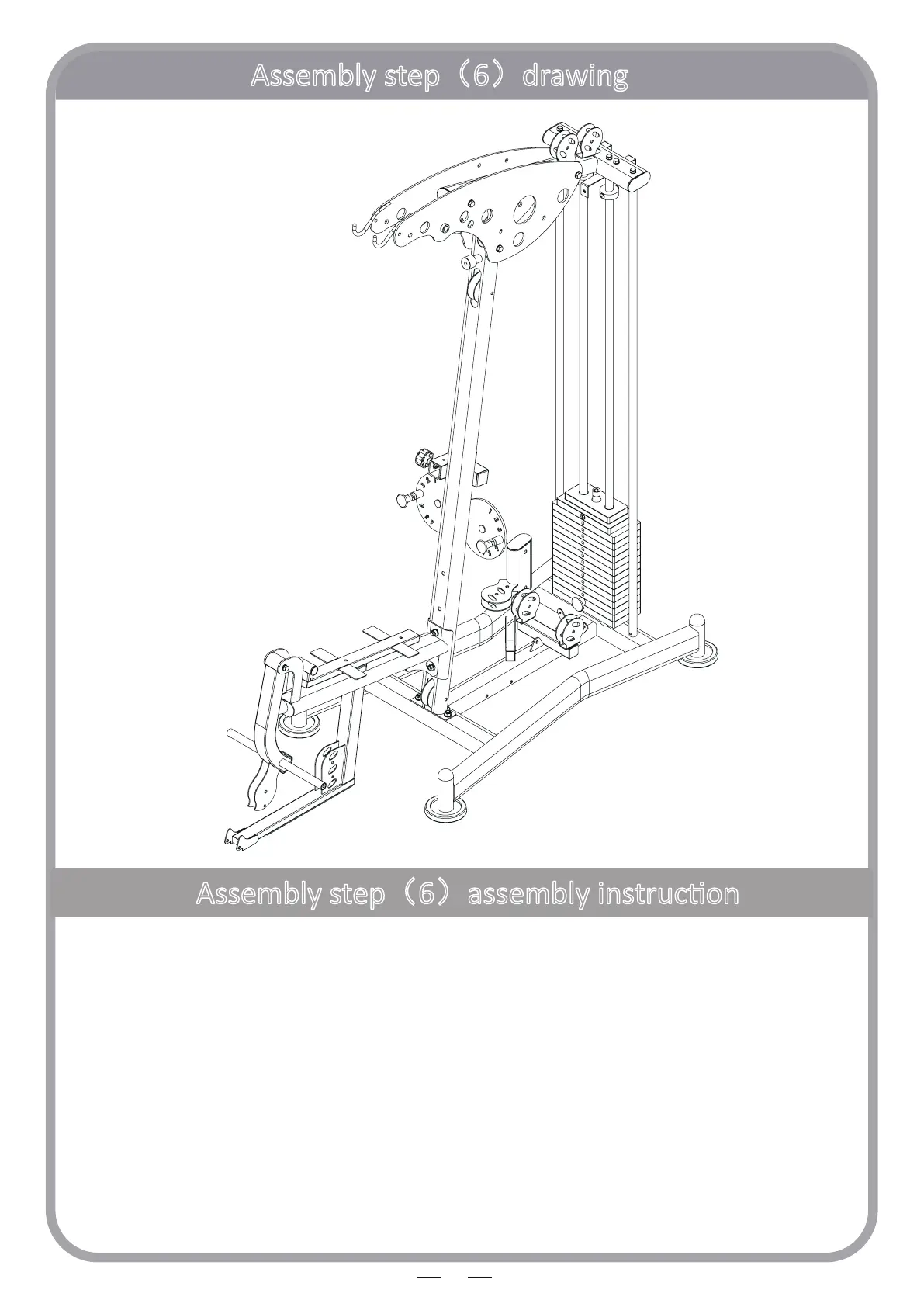

Assembly step（6）drawing
Assembly step（6）assembly instrucon
1. Fix seat cushion tube(33) fastening on front frame using:
M12*75 hexagon bolt(29),Ф12 washer(20),M12 lock nut(21)
2
. Fix leg curl elbow tube(34) on seat cushion tube(33) using:
axis of rotaon(31),M10*25 hexagon bolt(30),Ф10 spring washer(7),Ф10 washer(5)
3
. Fix seat cushion adjust frame(32) fastening on seat cushion tube(33) using: pull pin(18)
CAUTION: All bolts should be ghtening.
