TOORX MSX3000 - Assembly Step 6: Seat Cushion and Leg Curl Assembly

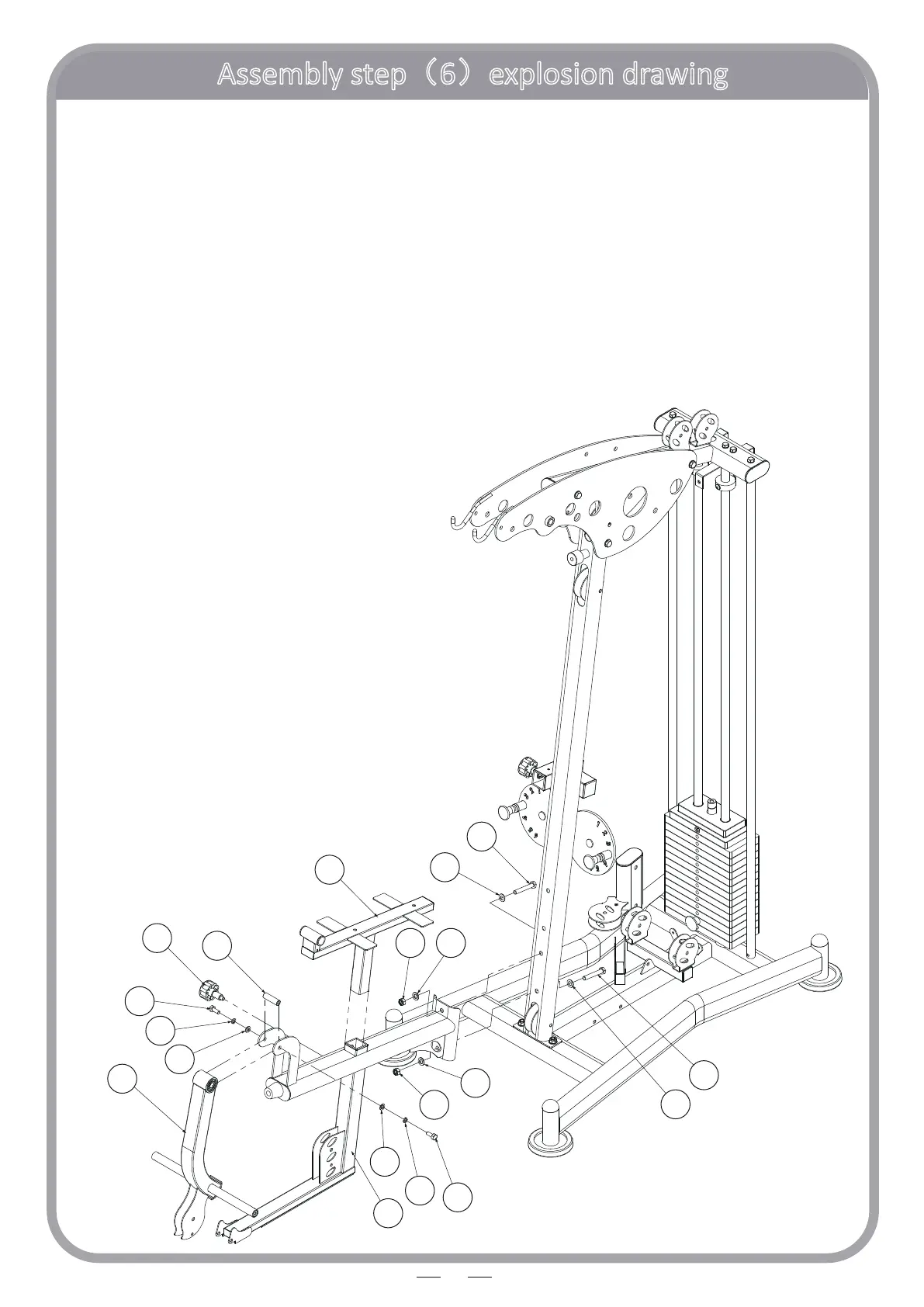

Assembly step（6）explosion drawing
18
30
30
21
21
20
20
20
20
33
34
7
7
5
5
29
29
18
31
32
No. Descripon Note Qty.
5 washer Φ10 2
7 spring washer Φ10 2
18 pull pin Φ10 1
20 washer Φ12 4
21 lock nut M12 2
29 hexagon bolt M12*75 2
30 hexagon bolt M10*25 2
31 axis of rotaon Φ17*57 1
32
seat cushion adjust
frame
1
33 seat cushion tube 1
34 leg curl elbow tube 1
