TOORX MSX3000 - Assembly Step 9: Lat Pull Cable and Pulley Setup

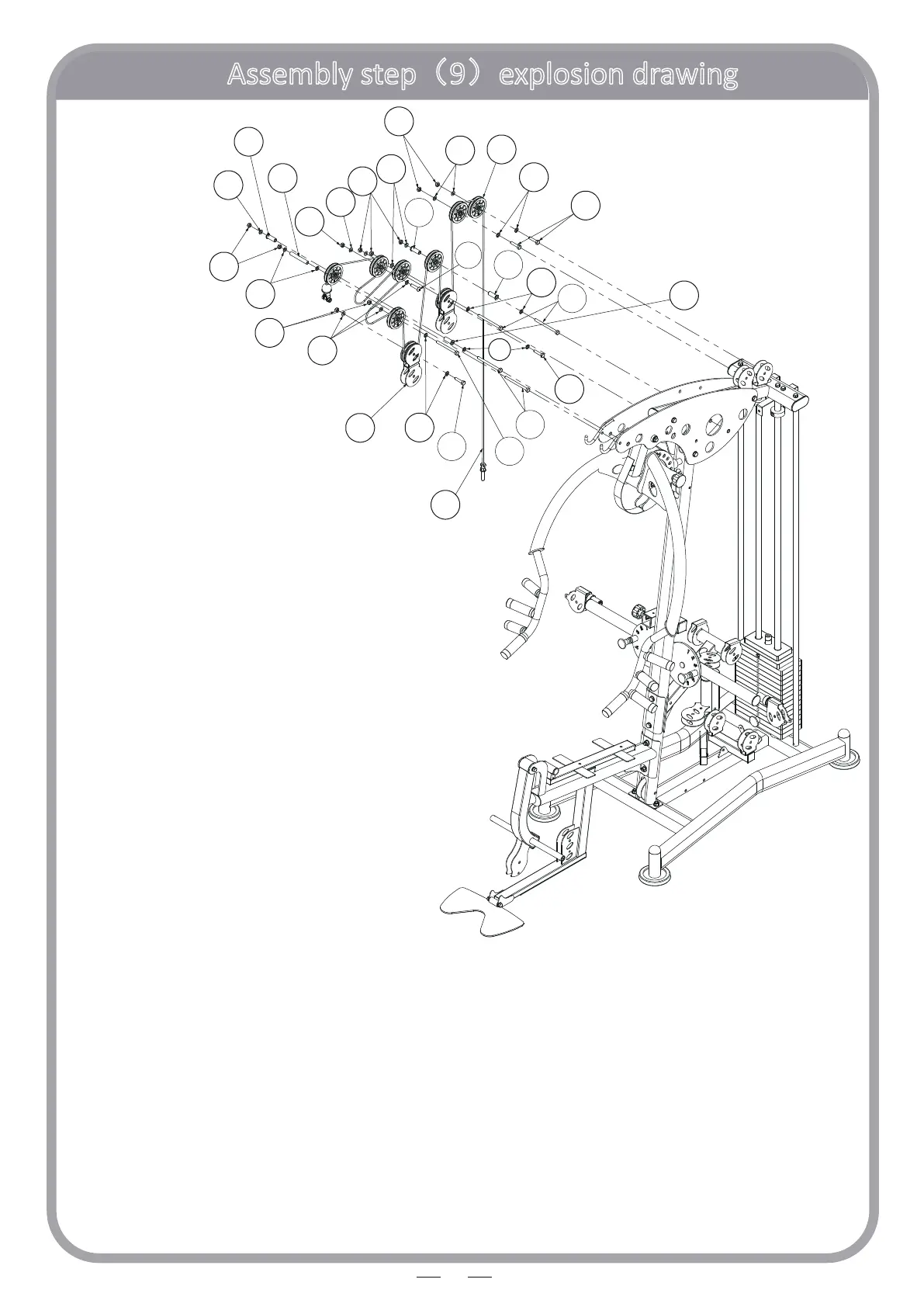

Assembly step（9）explosion drawing
24
58
57
57
53
50
50
51
52
52
23
23
23
23
54
23
55
5
5
5
5
5
5
5
5
5
56
57
57
52
5
No. Descripon Note Qty.
5 washer Φ10 20
23 lock nut M10 10
50 hexagon bolt M10*130 4
51 hexagon bolt M10*115 1
52 hexagon bolt M10*45 4
53
hexagon socket buon
head bolt
M10*45 1
54 “-” shape pulley frame 2
55 pulley Φ95*26 9
56 connecng sleeve Φ14*100 1
57 pulley spacer Φ22*Φ10.5*45.5 4
58 lat pull cable L:4540mm 1
