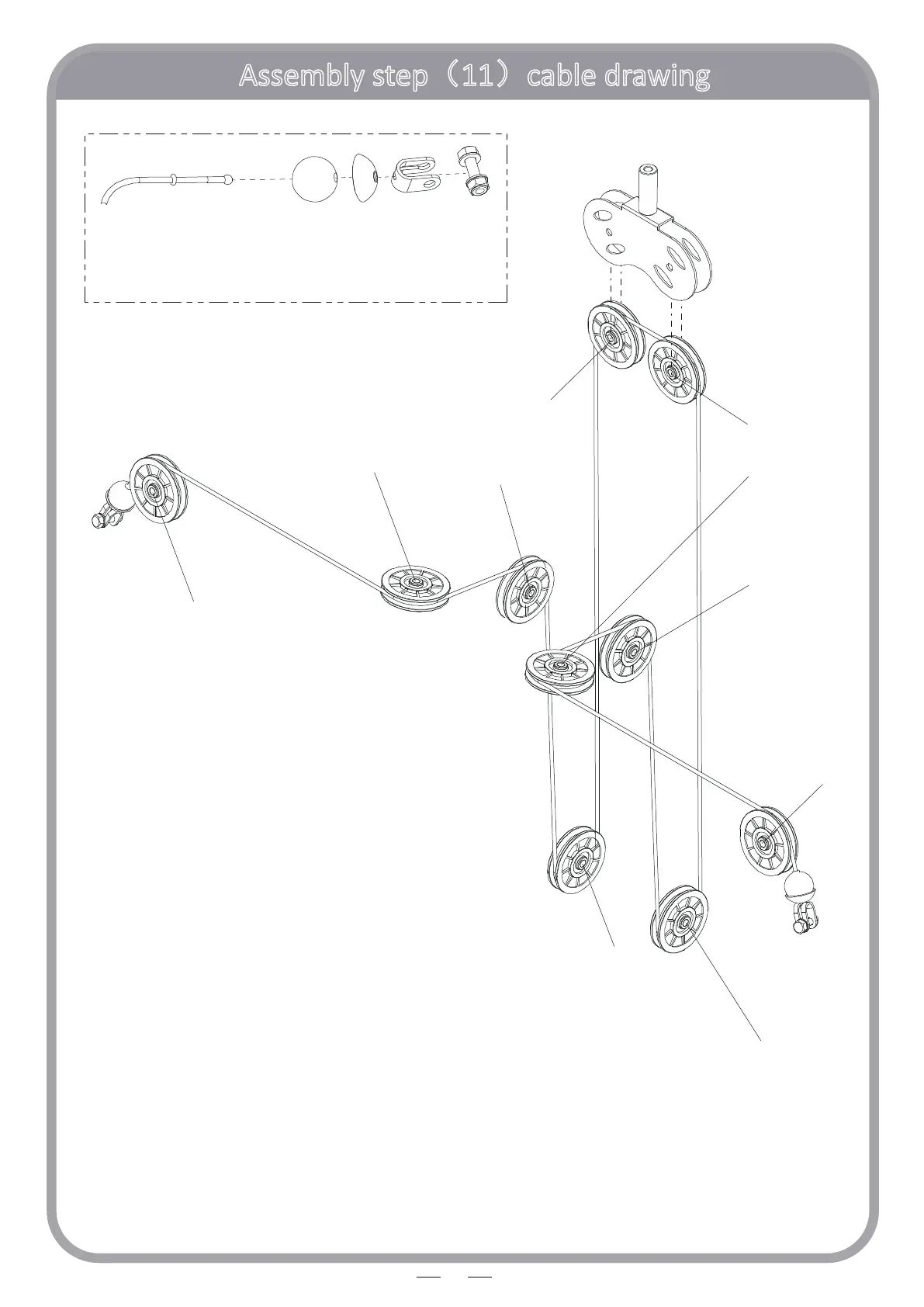

Assembly step（11）cable drawing
30
Buerfly arm cable drawing
M
N
L
O
P
R
Q
K
S
T
No. Descripon Note Qty.
5 washer Φ10 18
11 lock nut M8 2
15 washer Φ8 4
23 lock nut M10 8
52 hexagon bolt M10*45 10
55 pulley Φ95*26 10
63 hexagon bolt M8*45 2
64 buerfly arm cable L:5375mm 1
