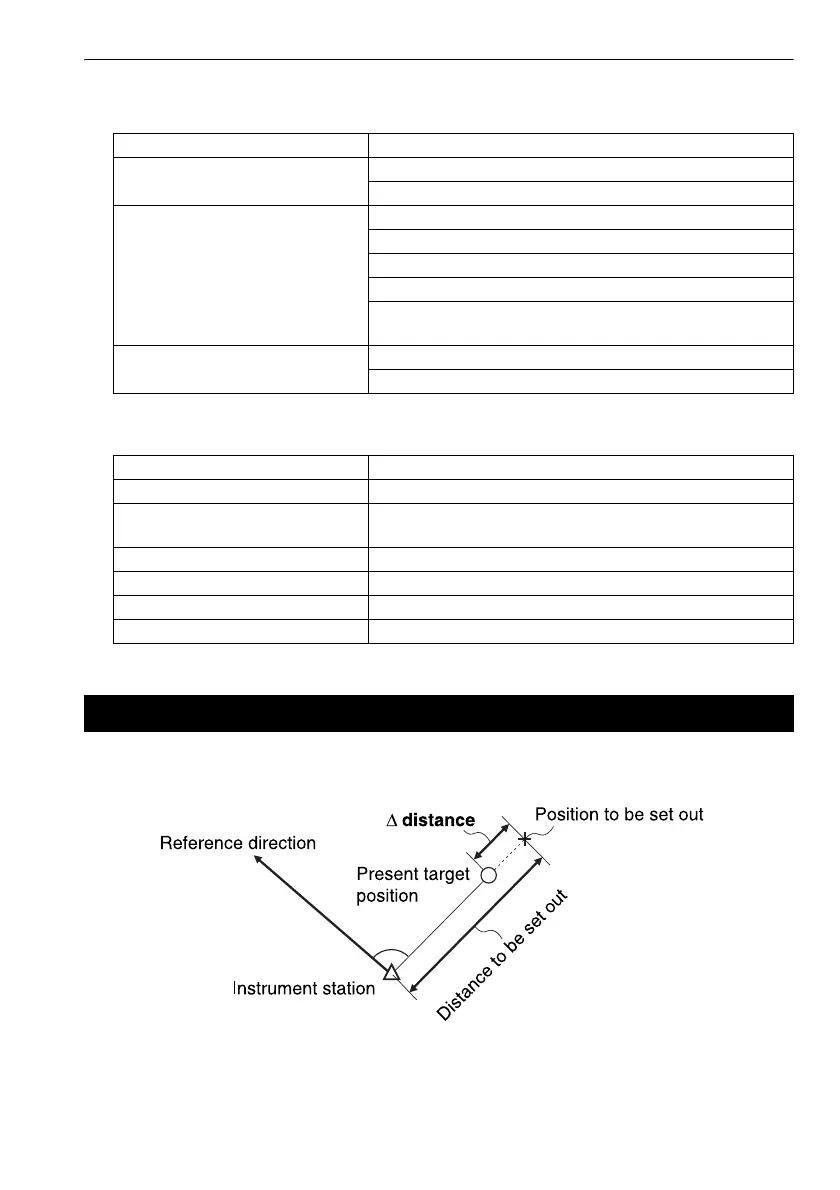

16. SETTING-OUT MEASUREMENT
I Guide light status and meaning
Status of instrument
Indication for positioning target during setting-out measurement
The point is to be found based on the horizontal angle from the reference direction and the distance
from the instrument station.
Light status Meaning
Slow flashing (Red and green
simultaneously)
Waiting
Search error (error screen only)
Fast flashing (Red and green
simultaneously)
Searching in progress
Measuring (continuous measurement)
Returned signal checking in progress
Auto Tracking in progress (Auto Tracking model only)
Auto Tracking in predicted direction (Auto Tracking model
only)
Green and red alternate flashing
Distance measurement error (no signal, sighting error)
"Prism wait"
Light status Meaning
Increased flashing speed (From position of poleman) Move target toward instrument
Decreased flashing speed (From position of poleman) Move target away from
instrument
Fast flashing Target is at correct distance
Red (From position of poleman) Move target left
Green (From position of poleman) Move target right
Red and Green Target is at correct horizontal position
16.2 Distance Setting-out Measurement
