4. PRODUCT OUTLINE
Parts and functions of the instrument
1 Wireless antenna
2 Handle
3 Beam detector for Remote Controller
4 & Instrument height mark
5 External interface hatch
C"9. CONNECTING TO EXTERNAL
DEVICES"
6 Optical plummet focussing ring
7 Optical plummet reticle cover
8 Optical plummet eyepiece
9 Keyboard
C"5.2 Display Functions"
10 Circular level
11 Circular level adjusting screws
12 Serial / External power source connector
13 Levelling base locking screw
14 Luminance sensor
15 Display unit
16 Objective lens
(Includes "& Laser-pointer function")
17 Guide light
18 Handle locking screw
19 &Sighting collimator
20 Tubular compass slot
21 &Vertical Jog
22 Power key
23 &Horizontal Jog
24 & Trigger key
25 Battery cover
26 Stylus (pen)
27 Levelling foot screw
28 Base plate
29 Tribrach clamp
30 Telescope eyepiece
31 Telescope eyepiece screw
32 Telescope knob
33 Telescope focussing ring

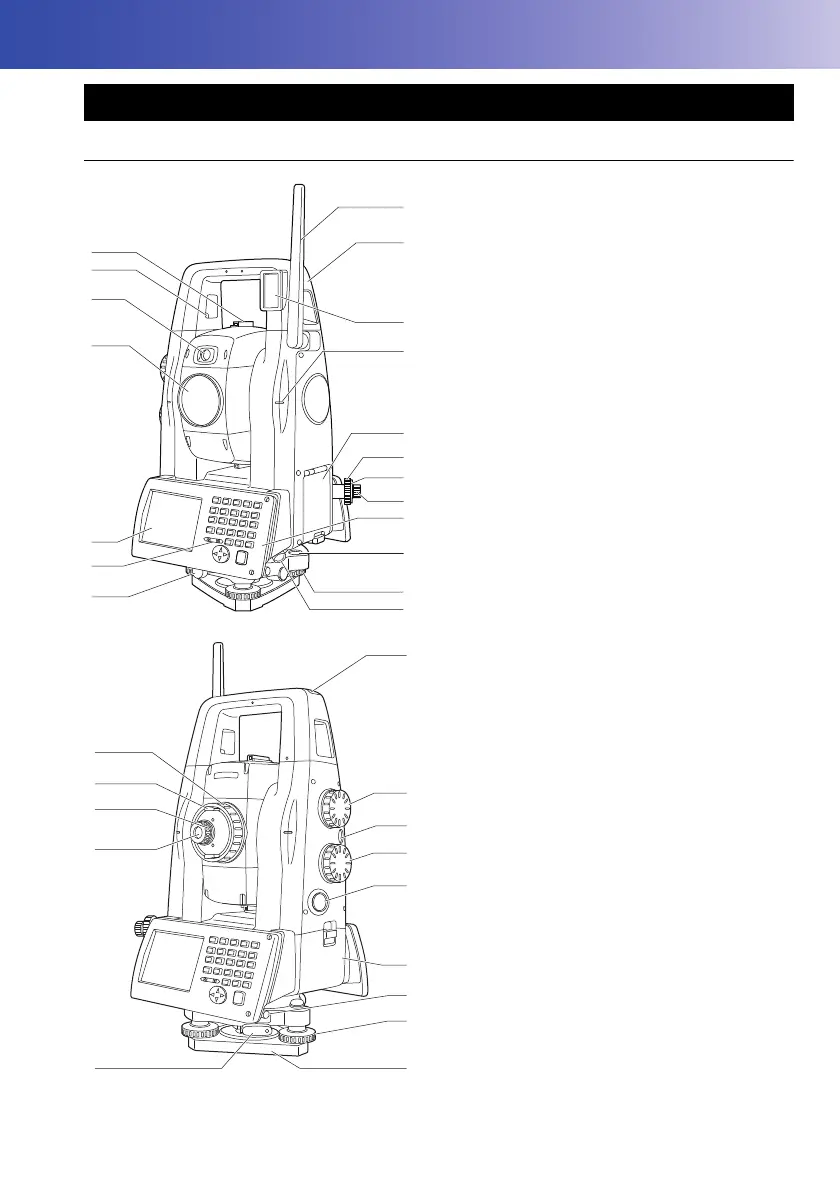

4.1 Parts of the Instrument
