16. SETTING-OUT MEASUREMENT
100
PROCEDURE

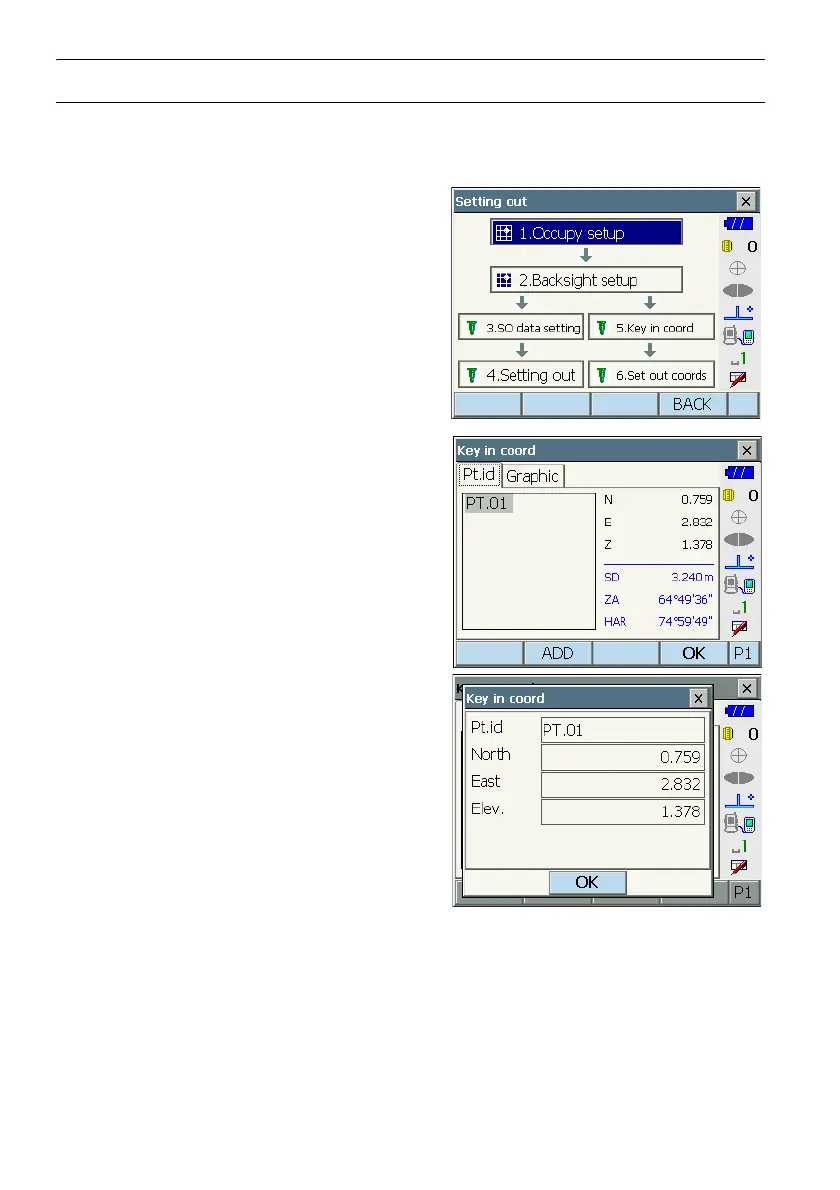

1. Select "Setting out" in <Menu> to display <Setting
out>.
2. Select "Occupy setup" to display <Occupy
setup>. If necessary, enter data for Backsight
setup.
C"16.2 Distance Setting-out Measurement"
steps 2 to 3
3. Select "Key in coord" in <Setting out>. Record all
the setting-out points (includes setting-out points
you will measure from now).
Press [ADD] to record new data.
•Press [DEL] in the second page to delete the
selected setting out point.
• Press [DELALL] in the second page to delete all
setting out points.
4. Select a setting-out point in the first screen of step
3 and press [OK] to display <Set out Coords>.
To Next Page
