117

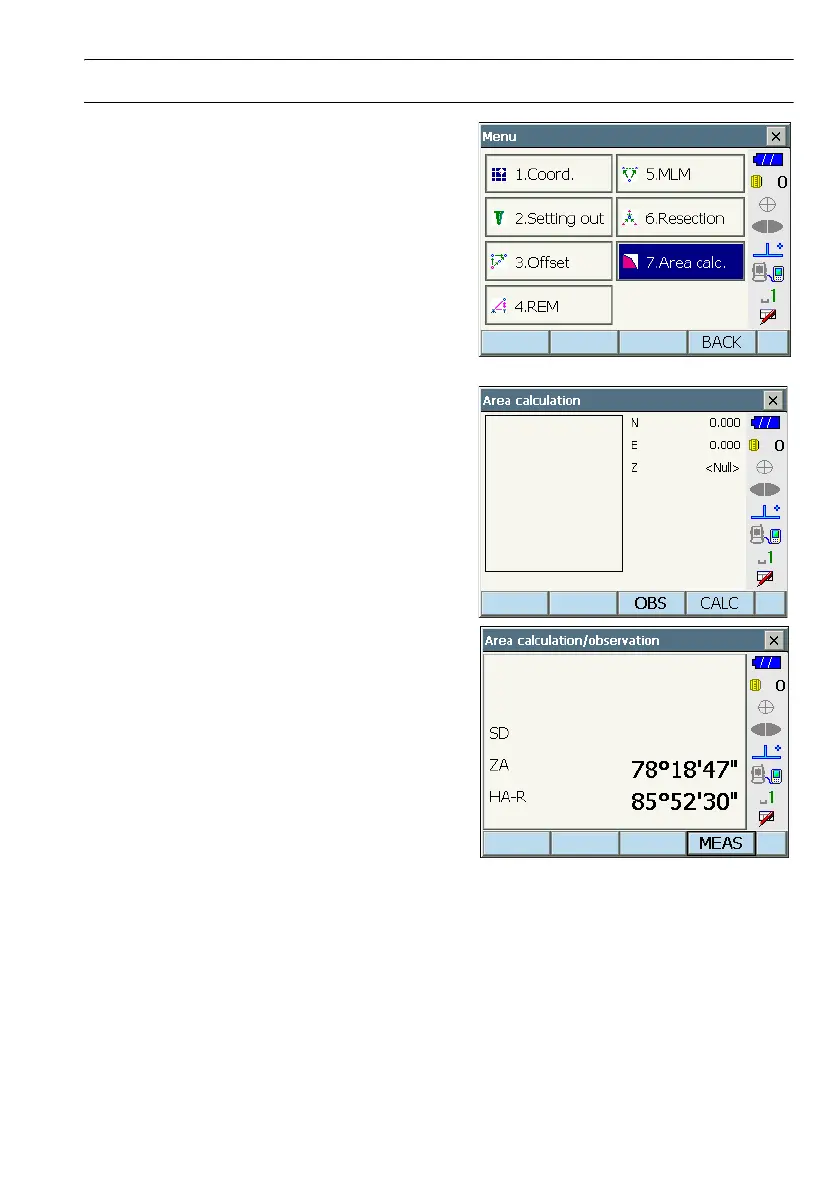

19. SURFACE AREA CALCULATION

PROCEDURE Surface area calculation by measuring points

1. Select "Area calc." in <Menu>

2. Press [OBS] to display <Area calculation/

measurement>. Sight the first point on the line

enclosing the area, and press [MEAS].

Measurement begins and the measured values

are displayed. Press [STOP] to stop measuring.

Table of Contents4
Precautions for Safe Operation7
Precautions10
Laser Safety Information13
Product Outline15
Parts of the Instrument15
Mode Structure20
Bluetooth Wireless Technology21
Basic Operation23
Basic Key Operation23
Display Functions27
Inputting Characters Using the Input Panel31
Starkey Mode32
Using the Program Selection Screen37
Using the Battery38
Battery Charging38
Installing/Removing the Battery39
Setting up the Instrument41
Centering41
Levelling42
Power On/Off44
Configuring the Touch Panel45
Resolving Software Issues46
Powering ON/OFF from an External Instrument47
Connecting to External Devices48
Wireless Communication Using Bluetooth Technology48
Communication between the PS and Companion Device52
Connection Via RS232C Cable53
SS Wireless Communication54
Connecting Via USB Cable55
Inserting USB Memory58
Target Sighting59
Auto Pointing Settings60
Auto-Pointing Function for Target Sighting62
Manually Sighting the Target64
Measurement with Auto Tracking66
Auto Tracking Settings66
Stating up External Link and Settings68
Measurement with Auto Tracking70
Angle Measurement73
Measuring the Horizontal Angle between Two Points (Horizontal Angle 0°)73
Setting the Horizontal Angle to a Required Value (Horizontal Angle Hold)74
Turning the Instrument from the Reference Angle to a Specified Angle75
Angle Measurement and Outputting the Data76
Distance Measurement77
Returned Signal Checking77
Using the Guide Light in Distance Measurement79
Distance and Angle Measurement80
Distance Measurement and Outputting the Data81
REM Measurement82
Coordinate Measurement84
Entering Instrument Station Data84
Azimuth Angle Setting85
3-D Coordinate Measurement88
Resection Measurement90
Coordinate Resection Measurement91
Height Resection Measurement95
Setting-Out Measurement100
Using the Guide Light in Setting-Out Measurement100
Distance Setting-Out Measurement101
Coordinates Setting-Out Measurement105
REM Setting-Out Measurement109
Offset Measurement111
Offset Single-Distance Measurement111
Offset Angle Measurement113
Offset Two-Distance Measurement115
Missing Line Measurement118
Measuring the Distance between 2 or more Points118
Changing the Starting Point120
Surface Area Calculation122
Changing the Settings126
Observation Conditions126
Instrument Configuration129
EDM Settings131
Allocating User-Defined Tabs135
Customizing Screen Controls138
Allocating Key Functions140
Changing Starkey Mode Icons143
Units145
Changing Password146
Restoring Default Settings147
Date and Time147
Warning and Error Messages148
Checks and Adjustments151
Circular Level151
Tilt Sensor152
Collimation155
Reticle156
Image Sensor Reticle158
Optical Plummet160
Additive Distance Constant161
Power Supply System163
Prism System164
Opptional Accessories165
Specifications168
Explanations175
High Accuracy with the 360° Prism175
Manually Indexing the Vertical Circle by Face Left, Face Right Measurement176
Regulations177
Index181
