20. CHANGING THE SETTINGS
126
Items set, options, and input range (*: Factory setting)
Dist. mode (Distance measurement mode): Fine “R”*, Fine AVG n= 1(Setting: 1 to 9 times), Fine
“S”, Rapid "R", Rapid “S”, Tracking
Reflector : Prism*/360° Prism/Sheet/N-Prism
Prism constant value : -99 to 99 mm ("Prism" is selected: 0*, "360° Prism" is
selected: -7, "Sheet" is selected: 0)
Aperture : 1 to 999mm ("Prism" is selected: 58*, "360° Prism" is
selected: 34, "Sheet" is selected: 50)
Illum. hold ({J} function) : Laser-pointer*/Guide light
Guide light (Bright) : 1 to 3 (3*)
• The setting for "Fine AVG" distance measurement mode can be increased/decreased using the
[ + ]/[ - ] softkeys.
• Target information can be edited and recorded.
C"PROCEDURE Recording and editing target information"
• "Prism const." and "Aperture" will not be displayed when "N-Prism" is selected in "Reflector".
• Recommended values of "Aperture" are: 58 for Prism-2, 32 for Prism-5, 34 for ATP1/ATP1S and
actual size for reflective sheets.
• When "prism const." (prism constant values) are changed and [OK] is pressed, these changes
are reflected in the status bar/Starkey mode target type display temporarily. This display will also
change to reflect changes in target information settings made using a data collector temporarily.
In both of the above cases, changes will not be recorded in <Reflector setting>.
CStatus bar: "5.2 Display Functions", Starkey mode: "5.4 Starkey Mode",<Reflector setting>:
"PROCEDURE Recording and editing target information", Cold boot: "8.2 Resolving
Software Issues & Cold boot"
• The Guide light brightness item ("Guide light (Bright)") will be displayed only when "Illum. hold"
is set to "Guide light".
& prism constant correction value
Reflective prisms each have their prism constant.
Set the prism constant correction value of the reflective prism you are using. When selecting "N-
Prism" in "Reflector", prism constant correction value is set to "0" automatically.

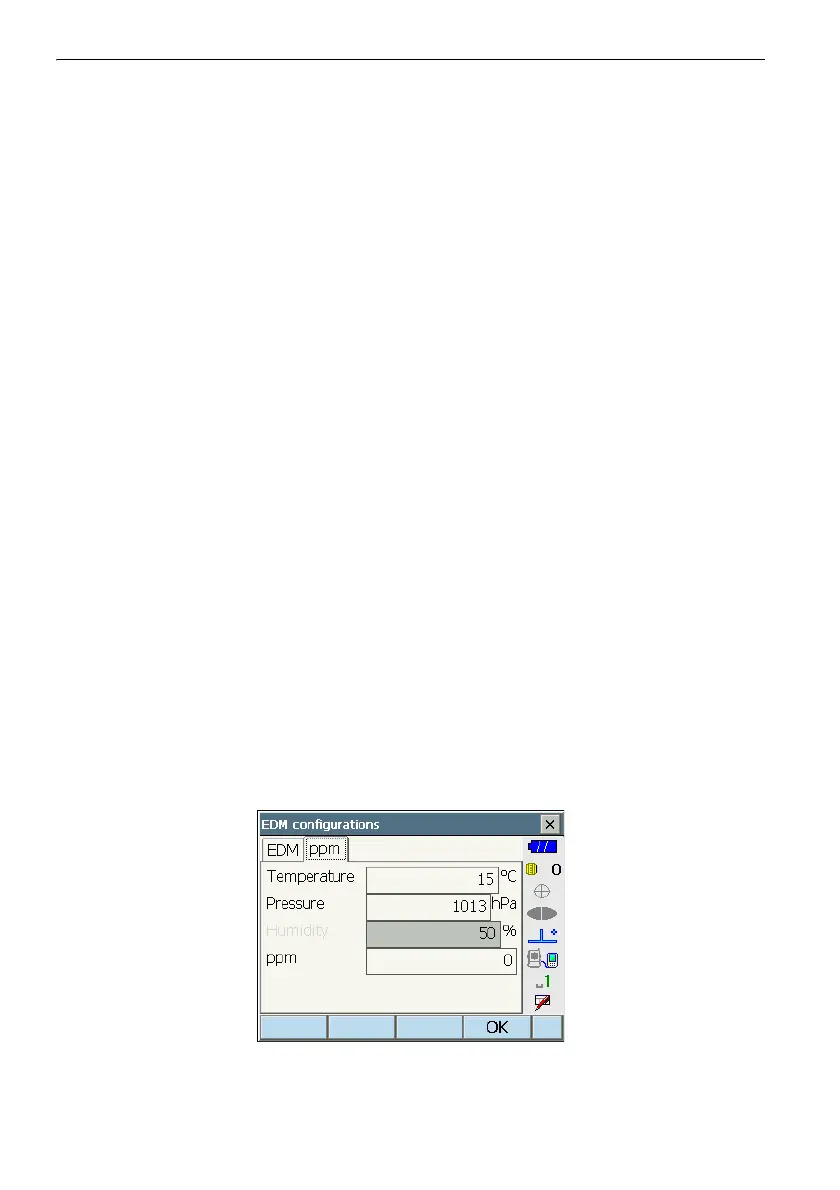

I "ppm" tab
• [0ppm]: Atmospheric correction factor returns to 0 and temperature and air pressure are set to
the factory settings.
To Next Page
