153
22. CHECKS AND ADJUSTMENTS
5. Use manual sighting to accurately sight the
target.
C"10.3 Manually Sighting the Target"
6. Press [OK].

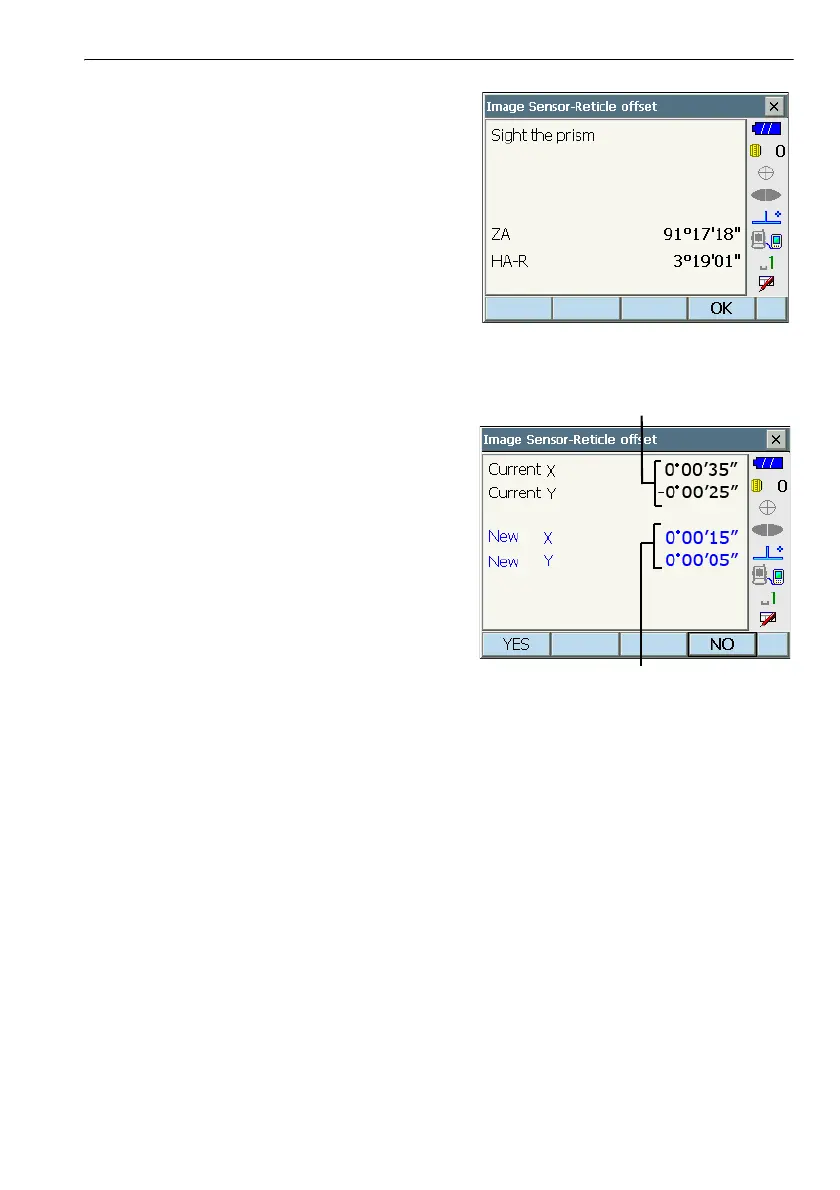

7. Offset value (H, V) (New) is obtained from the set
offset value (H, V) (Current) and the
measurement results. The offset value is a
constant value that indicates the number of
degrees of misalignment between the center of
the telescope reticle and the center of the image
sensor. If the offset value obtained from the
measurement result is significantly larger than the
set offset value, press {ESC} and resight the
target.
If the offset value (H, V) obtained from the
measurement results continues to be significantly
large after repeated checks, adjustment is
necessary. Go to step 8.
If one of the offset values exceeds the range, an
error message appears on the screen. Contact
your local dealer to perform the adjustment.
8. Press [OK] to renew the offset value.
Set offset value
Offset value obtained from
measurement
To Next Page
