25. OPPTIONAL ACCESSORIES
160

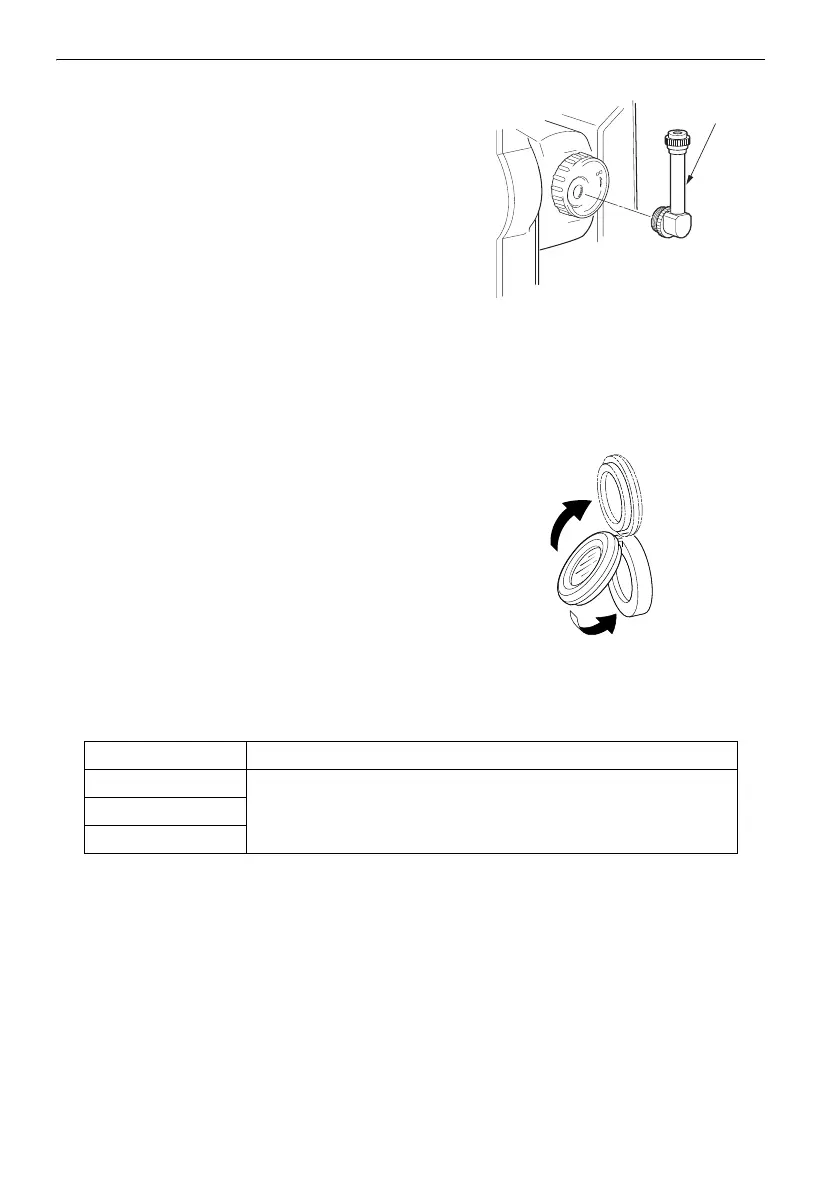

I Diagonal eyepiece (DE27)
The diagonal eyepiece is convenient for
observations near the nadir and in narrow spaces.
Magnification: 30X
After removing the handle from the instrument
loosen the attachment screw to remove the
telescope eyepiece. Then screw the diagonal lens
into place.
CHandle removal method: "4.1 Parts of the
Instrument "Handle""
G
• Do not perform vertical rotation of the telescope
when using the diagonal eyepiece. The diagonal
eyepiece may strike the instrument causing
damage.
I Solar filter (OF3A)
When sighting targets where glare is present,
solar observations for example, attach it to the
objective lens of the instrument to protect its
interior and the eyes of its operator. The filter part
can be flipped up without being removed.
G
• Do not perform vertical rotation of the telescope
when using the solar filter. The solar filter may
strike the instrument causing damage.
I Power cable/Interface cable
Connect the instrument to a host computer using the following cables.
$
• By using the Y cable the instrument can perform RS232C communication (D-Sub 9-pin) at the
same time as connecting to an external power source.
Cable Notes
DOC210 Pin number and signal level : RS232C compatible
EDC211 (Y cable) D-Sub connector : 9 pins (female)
EDC212 (Y cable)
DE27
To Next Page
