5. BASIC OPERATION
22

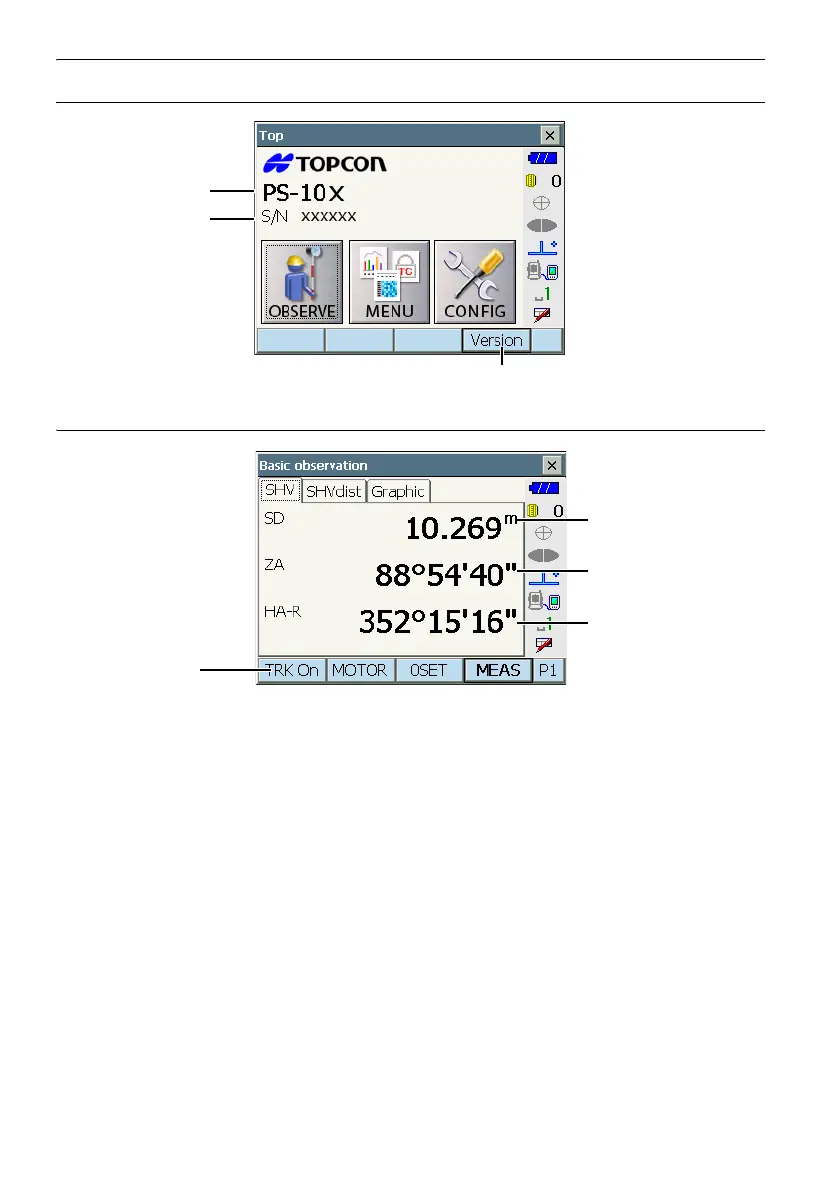

Top menu
Observation mode screen
(1) Distance
Horizontal distance and height difference are also displayed in "SHVdist" tab.
Displayed items in "SHV" tab can be changed.
C"20.1 Observation Conditions"
(2) Vertical angle
The Vertical angle display can be switched between Zenith (Z=0°)/Horiz (H=0°)/Horiz (H=±90°)
To switch vertical angle/slope in %, press [ZA/%] when allocated to the Observation mode screen.
The capitalized letter in the softkey indicates the currently selected mode.
CChanging display: "20.1 Observation Conditions", allocating [ZA/%]: "20.6 Allocating Key
Functions"
(3)Horizontal angle
Press [R/L] when allocated to the Observation mode screen to switch the display status. The
capitalized letter in the softkey indicates the currently selected mode.
HA-R: Horizontal angle right
HA-L: Horizontal angle left
CAllocating [R/L]: "20.6 Allocating Key Functions"
Instrument name
Serial Number
Application software version
(1) Distance
(2) Vertical angle
(3) Horizontal angle
Soft key
