14. COORDINATE MEASUREMENT
80
PROCEDURE Entering coordinates

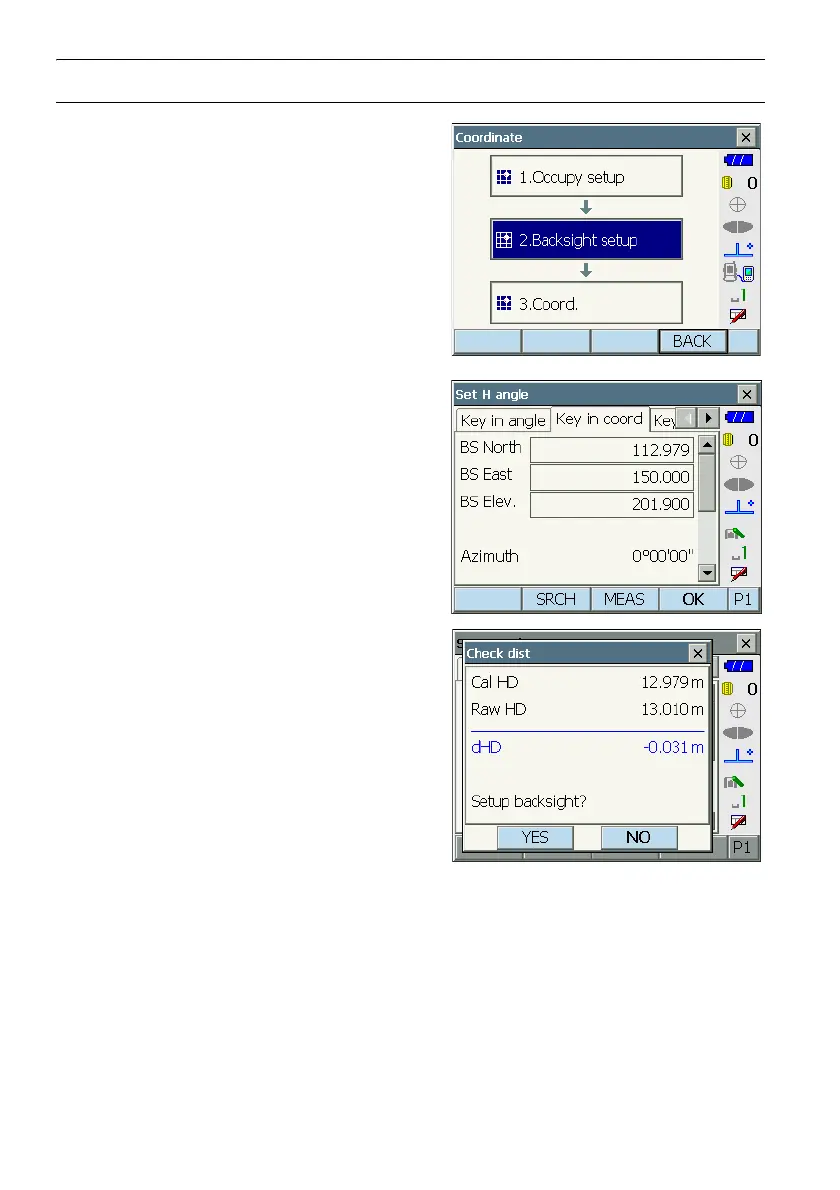

1. Select "Backsight setup" in <Coordinate>. <Set H
angle> is displayed.
• <Set H angle> can also be displayed from the
screen in step 4 of "14.1 Entering Instrument
Station Data".
2. Select the "Key in coord" tab and enter the
backsight station coordinates.
• [SRCH]: Performs Auto Pointing. Rotates the
instrument in the direction of the backsight.
• [Azimuth] /[H.ANG]/[None]/[0 SET] (in the
second page): Switches horizontal angle setting
method.
C "&Horizontal angle settings"
• Sight the backsight station and press [MEAS].
Press [STOP] to display the distance calculated
from coordinates, the measured distance, and
the difference between the two. Press [YES] to
set the azimuth angle and display <Coord.
measurement>.
3. Press [OK] to set the azimuth angle. <Coord.
measurement> is displayed.
To Next Page
