6. BASIC OPERATION
* 1: Press [Menu mode] key, and the instrument returns to the “Basic screen” status.
* 2: Press [Menu mode] key, and the instrument returns to the “Procedure 2” status.
* 3: The menu number is changed according to models.
■ Enlarging digital level vial indication by tilt in rotating direction
If the instrument is tilted during auto leveling, the digital level vial indication is enlarged. This enlarged indication
status is released when the instrument is stabilized or when any other key is pressed.
Factory setting : [ON]
4. Press [Right] key to highlight [OFF]. *2
5. Press [Set/Lock] key.
Setting is set to [OFF].

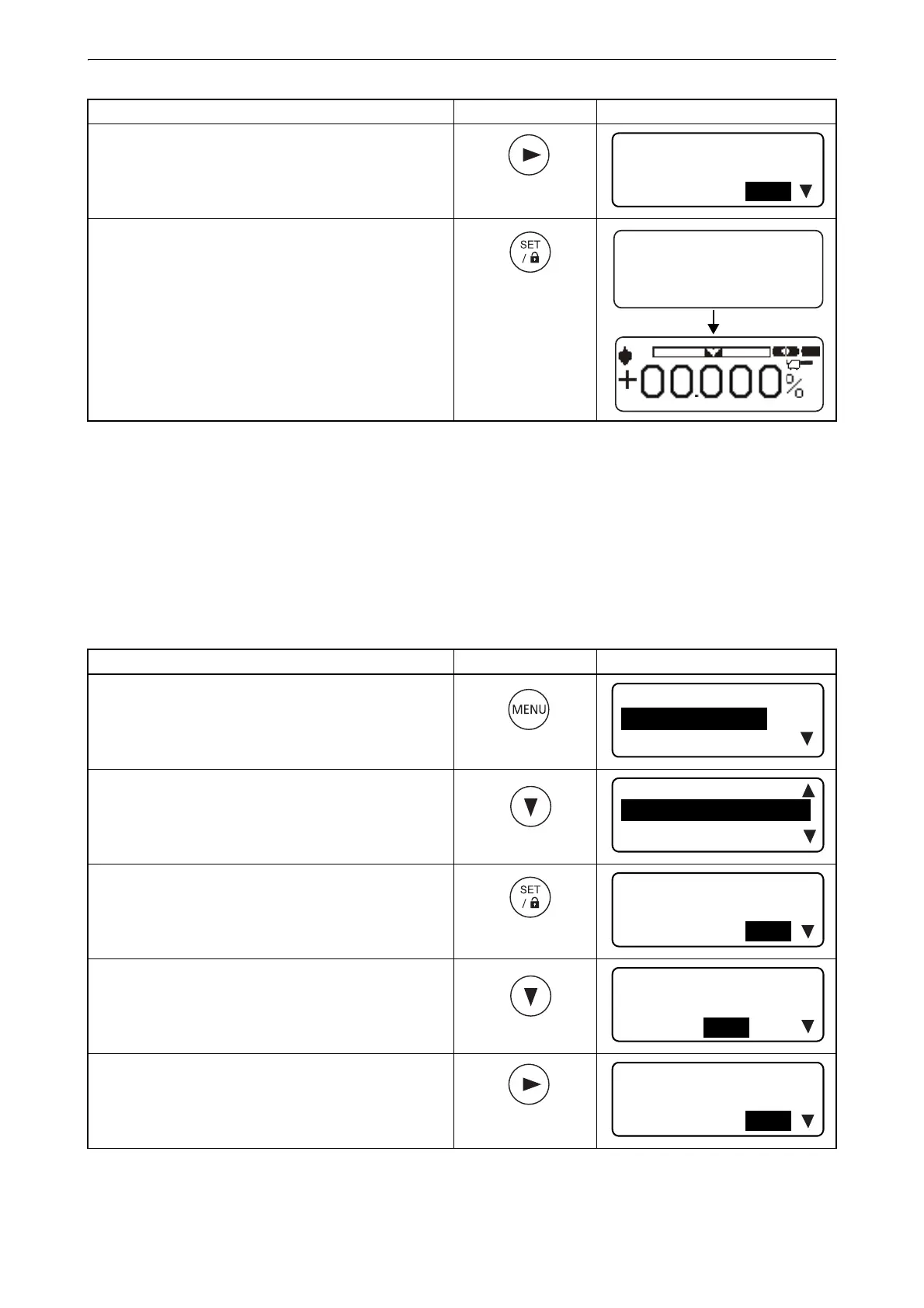

Procedure Key operation Display
1. Press [Menu mode] key. *1
2. Press [Down] key twice. *1
3. Press [Set/Lock] key. *2
4. Press [Down] key. *2
5. Press [Right] key to highlight [OFF]. *2
Procedure Key operation Display
DISPLAY(1/3)
R-TILT DISP-1
ON OFF
SET
MENU(1/5)* 3
BEAM SETTING
Twice
MENU(3/5)* 3
DISPLAY SETTING
DISPLAY(1/3)
R-TILT DISP-1
ON OFF
DISPLAY(2/3)
R-TILT DISP-2
ON OFF
DISPLAY(2/3)
R-TILT DISP-2
ON OFF
