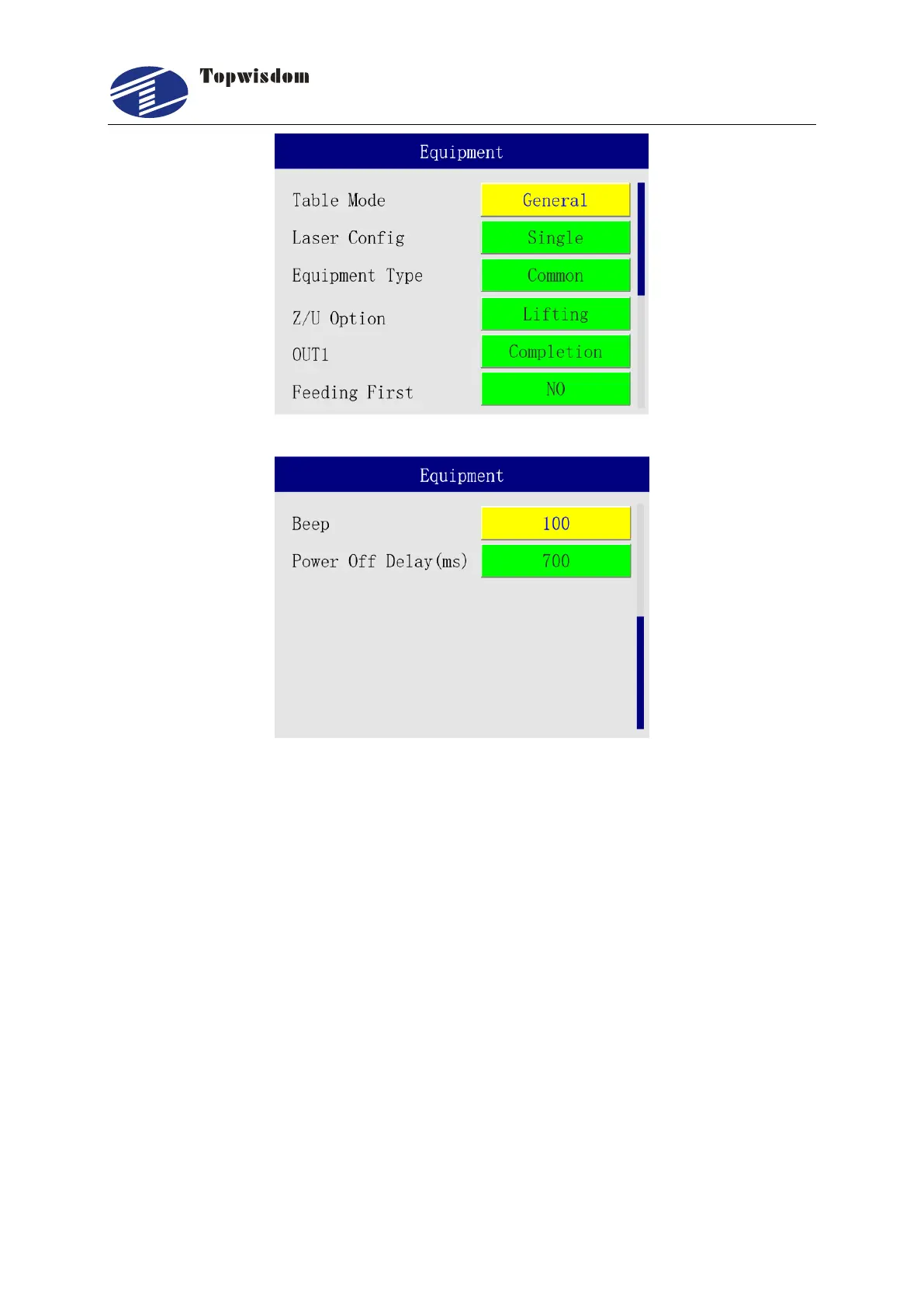

1. Table Mode: General or Double. After choosing double table model, and set the Table
Size parameter–the distance of double table model, the distance subjects to the two upper
left corner of table model. The machine on double table has two tables: to go back and
forth by U axis, keep a table on the working position; and another one turn in there on the
both sides of machine, so as to carry out the work without delay and further increase the
work efficiency (The function is only available in those models with such part). After
choosing double table model, and every time after the work is completed, the U axis will
move for the set double platform distance once.
2. Laser Config: Single.
3. Equipment Type: Common, Round (machine with wheel) and Knife (Rotary Cutting).
4. Z/U Option: Z Axis, the port is use as Z axis; Feeding, receiving the feeding motor;
Lifting, for platform lifting or auto focus.
5. OUT1: OUT1 is a multiplexed port:
