Completion: work completion signal, output 300ms low pulse width after the work
is completed
Feeding: feeding signal, output when feeding
Laser: laser on signal,output when laser on
Press: Feeding/pressing signal, synchronous pressing signal at Y axis and U axis
when feeding, active at low level
Work Status: working status signal, output low level at work state, output high level
at standby or pause state
Pen: output low electrical level when dropping the pen, output high electrical level
when lifting the pen
Nip Rolls: for rotary cutting head, used for control of press feeding roller
6. Feeding First: whether the device will feed the material first before starting to cut.
7. Beep: set the beep times when work is done.
8. Power off Delay (ms): it is used when the laser head retreats insufficiently when the
power is turned off to continue engraving, causing the graphic interface to not close. This
parameter can be used to make appropriate compensation adjustments.
About Equipment Type:
1) When choose the Round (machine with wheel), two parameters need to set: Reference
Diameter and Reference Resolution. After the reference diameter and reference
resolution set correctly, each time replace material, it just needs to set the "Diameter"
parameter in main menu interface. The current diameter of the wheel and the exact
resolution corresponding to the current wheel can be entered as the Reference Diameter
and Reference Resolution.
Reference Resolution instructions:

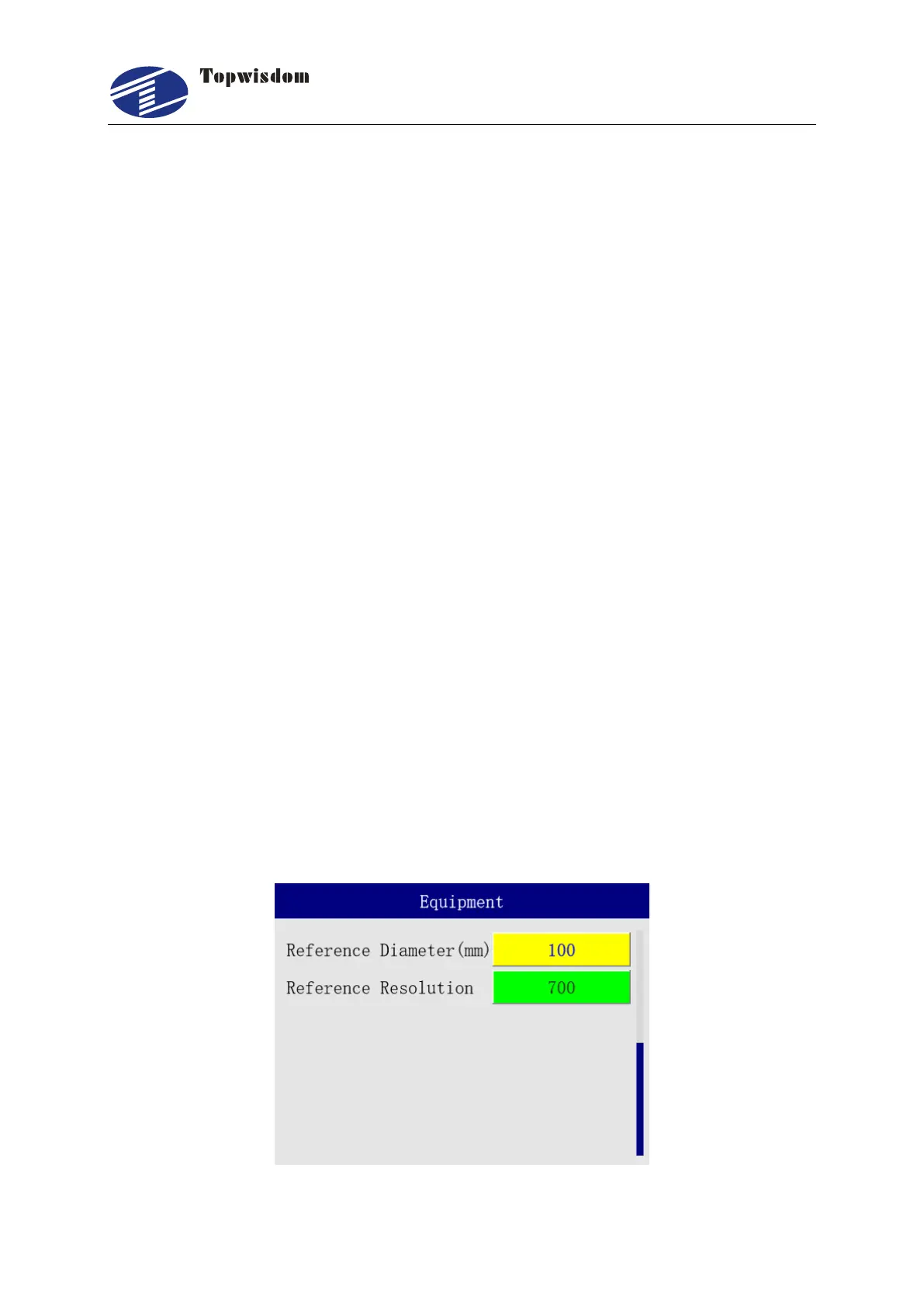

a. Menu/Equipment: set the Equipment to Round. The "Reference Diameter" and
"Reference Resolution" are used as a pair of Reference Parameters.
