b. Reference Parameters
Because cylindrical materials with different diameter, the range and the
resolution of Y axis are different, the control card provides a Reference Diameter
and Reference Resolution for convenience to calculate.
After the reference diameter and reference resolution are set correctly, each time
replace material, it just needs to set the Diameter parameter in main menu
interface. Then the resolution and the max range of Y axis will be recalculated
according to the Reference Diameter and Reference Resolution. It means you
just need to set the new material diameter.
c. The Modification of Reference Parameters
Set the Equipment to Round. You will see the Reference Diameter and Reference
Resolution have a default value. Measure the diameter of a material for
processing. Input this diameter into the "Reference Diameter" parameter. The
Reference Diameter can remain as default value or input the estimate value to it.
Set the laser max power low, to draw out one 50mm length line on the surface of
material. Measure the real length of the line, 55mm etc. Go into the Menu/Axis
/Y Axis interface, set the resolution of Y Axis to reference resolution value. Press
"Menu" key and a window to calculate the resolution. Set Set Value to 50, Actual
Value to 55 in the resolution window. Press "Enter" key to calculate the right
resolution. Then set the actually calculated resolution reference as Reference
Resolution.

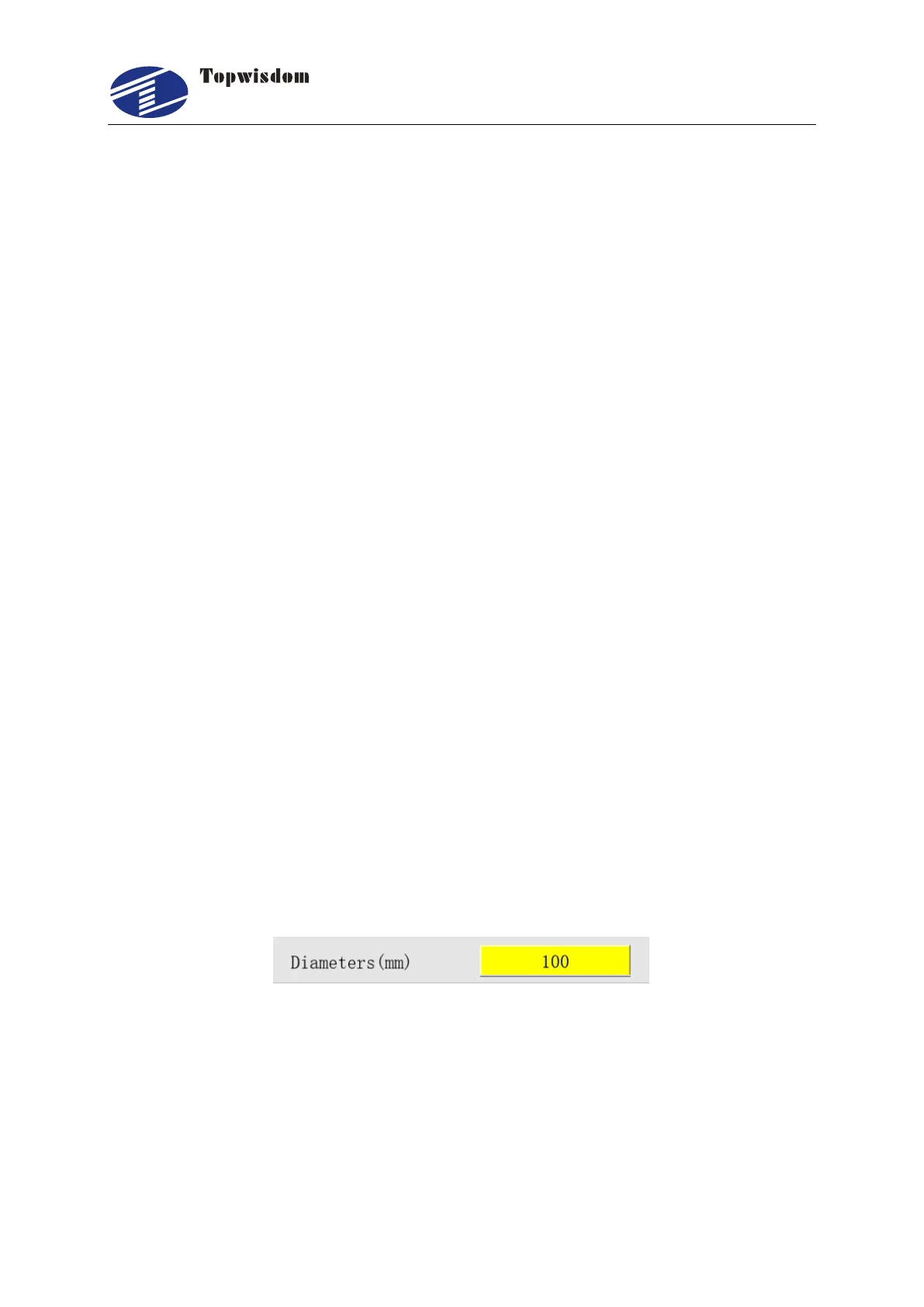

Next time you replace the new material with different diameter, just set the
"Diameter" parameter in Menu/Diameter interface. At this time, the Y axis
resolution automatically calculates the resolution and maximum range of the
current object based on the reference diameter and reference resolution.
Calculation Formula:
Real resolution of Y axis = Wheel Diameter / Reference Diameter * Reference Resolution
Real range of Y axis = Wheel Diameter * π
2) Ribbon Cutter
Select the Ribbon Cutter in the Equipment Type.
