Power-PointPort
Thepower-pointportisusedtopoweroptionalelectrical
accessories(Figure5).
AdjustingtheSeat
Seat-AdjustmentLever
Movetheseat-adjustmentleveronthesideoftheseat
outward,slidetheseattothedesiredposition,andreleasethe
levertolocktheseatintoposition(Figure6).

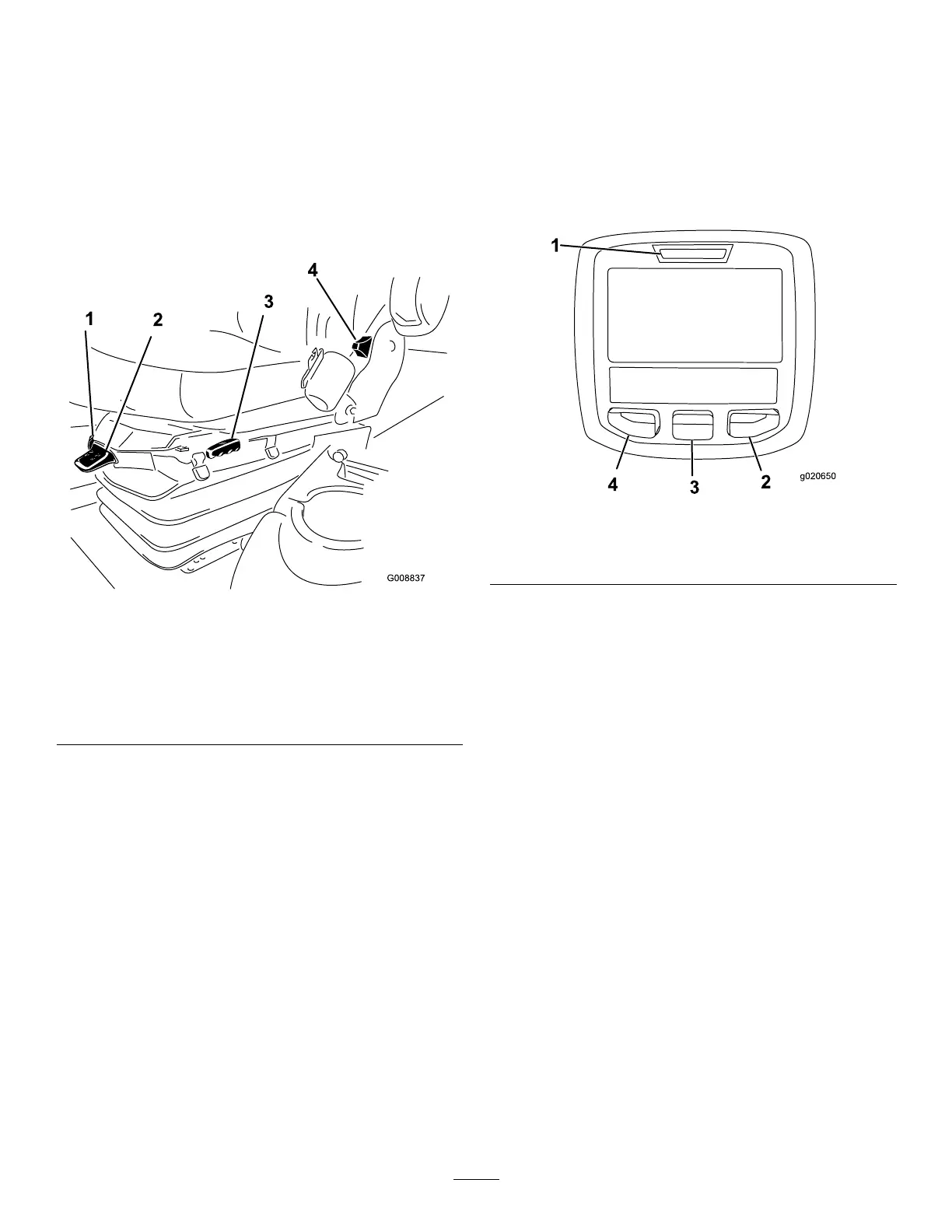

Figure6
1.Weightgauge
4.Seat-backadjustment
lever
2.Weight-adjustmentlever5.Armrest-adjustmentknob
(notshown;locatedunder
armrest)
3.Seat-adjustmentlever
Armrest-AdjustmentKnob
Rotatetheknobtoadjustthearmrestangle(Figure6).
Seat-Back-AdjustmentLever
Movethelevertoadjusttheseat-backangle(Figure6).
WeightGauge
Theweightgaugeindicateswhentheseatisadjustedto
theweightoftheoperator(Figure6).Adjusttheheightby
positioningthesuspensionwithintherangeofthegreen
region.
Weight-AdjustmentLever
Usethislevertoadjusttotheproperweightoftheoperator
(Figure6).Pullupthelevertoincreasetheairpressure
andpushdowntodecreasetheairpressure.Theproper
adjustmentiscorrectwhentheweightgaugeisinthegreen
region.
UsingtheInfoCenterControl
TheInfoCenterLCDdisplayshowsinformationaboutyour
machinesuchastheoperatingstatus,variousdiagnostics
andotherinformationaboutthemachine(Figure7).There
isasplashscreenandmaininformationscreenofthe
InfoCenter.Youcanswitchbetweenthesplashscreenand
maininformationscreenatanytimebypressinganyof
theInfoCenterbuttonsandthenselectingtheappropriate
directionalarrow.
1
g020650
2
3
4
TORO
Figure7
1.Indicatorlight3.Middlebutton
2.Rightbutton
4.Leftbutton
•LeftButton,MenuAccess/BackButton—pressthis
buttontoaccesstheInfoCentermenus.Youcanuseitto
exitanymenuthatyouarecurrentlyusing.
•MiddleButton—usethisbuttontoscrolldownmenus.
•RightButton—usethisbuttontoopenamenuwherea
rightarrowindicatesadditionalcontent.
•Beeper—activatedwhenloweringthedecksorfor
advisoriesandfaults.
Note:Thepurposeofeachbuttonmaychangedepending
onwhatisrequiredatthetime.Eachbuttonislabeledwith
anicondisplayingitscurrentfunction.
