WingMowerDecks

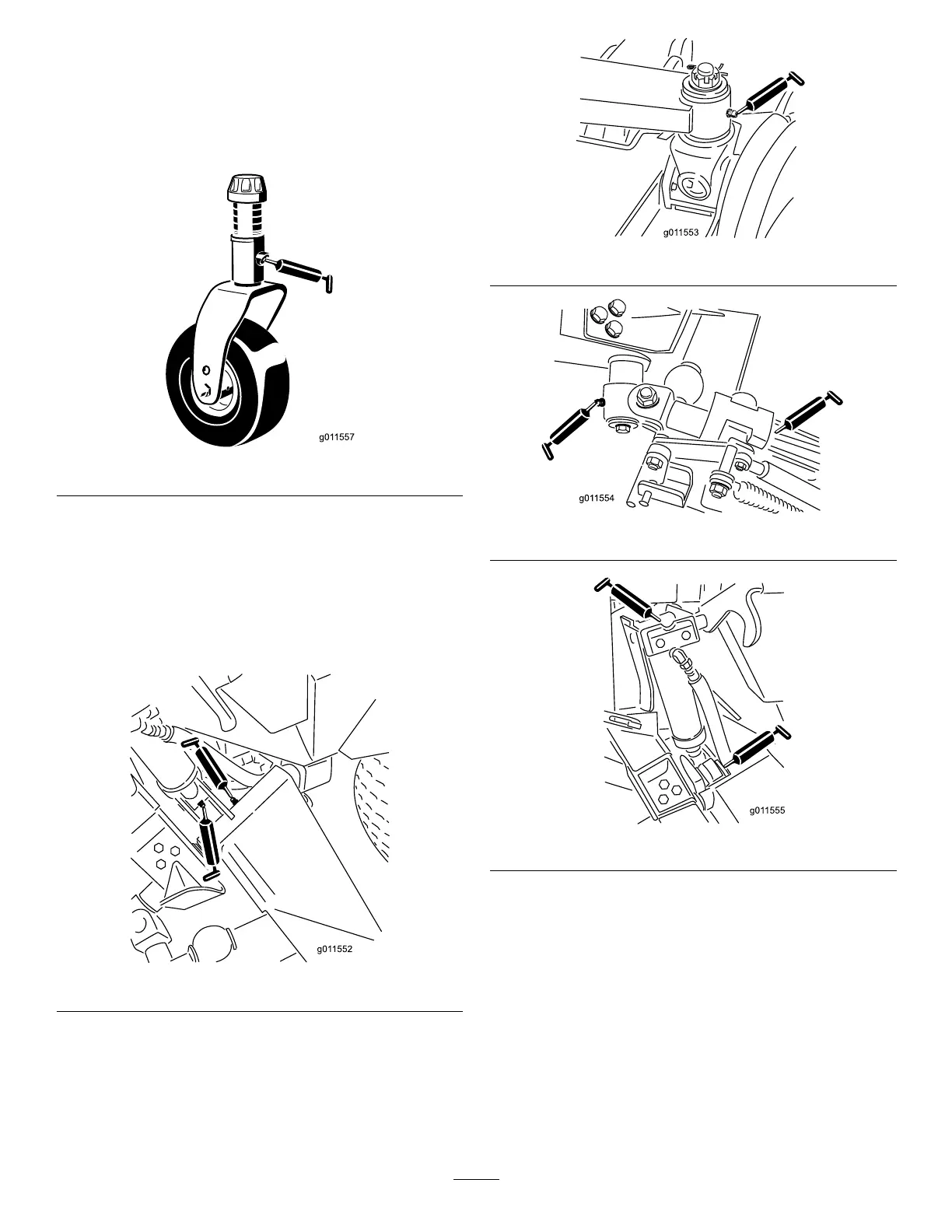

•1caster-fork-shaftbushing(Figure41)
•2(eachside)spindle-shaftbearings—locatedunderthe
pulley
•1idler-arm-pivotbushings—locatedontheidlerarm
Figure41
SideLiftAssemblies
•6mainlift-armbushings(Figure42andFigure43)
•2bell-crank-pivotbushings(Figure44)
•4reararmbushings(Figure44)
•4lift-cylinderbushings(Figure45)
Figure42
Figure43
Figure44
Figure45
39
