Toro EVOLUTION Series Quick Start Guide

5

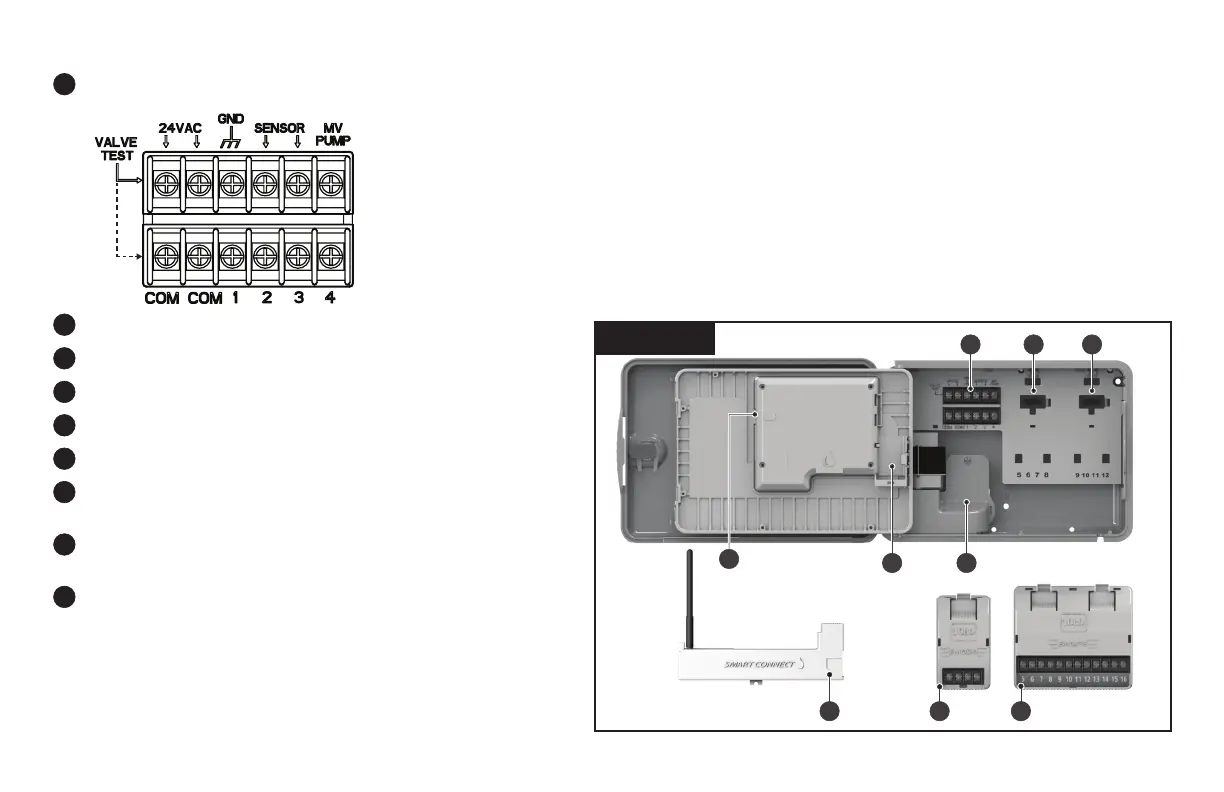

Internal Components
1
– Zones and Sensor Terminals
VALVE TEST – Use this terminal to test a valve for proper function.
24VAC – 24 VAC Power Source
GND – Power Source Ground
SENSOR – Sensor Terminals
MV PUMP – Master Valve Terminal
COM – Zones’ and Master Valve Common Terminals
1, 2, 3 and 4 – Zone 1, Zone 2, Zone 3, and Zone 4 Terminals
2
– Zones’ 5, 6, 7 and 8 Expansion Module Socket
1
4
5 6
879
2 3
7
Figure 2
3
– Zones’ 9, 10, 11 and 12 Expansion Module Socket
4
– Schedules USB Flash Drive Connector
5
– 9 Volt Battery Compartment
6
– Power Supply Terminal Compartment
7
– Smart Connect
TM
Module
(availableseparately)
8
– EMOD-4, Four-Zone Expansion Module
(availableseparately)
9
– EMOD-12, Twelve-Zone Expansion Module
(availableseparately)

Toro EVOLUTION Series Specifications

General

Weather Sensor Compatibility	Yes
Output Voltage	24 VAC
Display	LCD
Wi-Fi Connectivity	Yes (with optional Wi-Fi module)
Mounting	Indoor/Outdoor
Maximum Load Current	0.5 amps per station
Operating Temperature	-40°C to 60°C
Enclosure Rating	NEMA 3R
Weight	Varies by model
Zones	4 to 16 (in modules of 4)
