ControlHandleRemoval(continued)
g311245

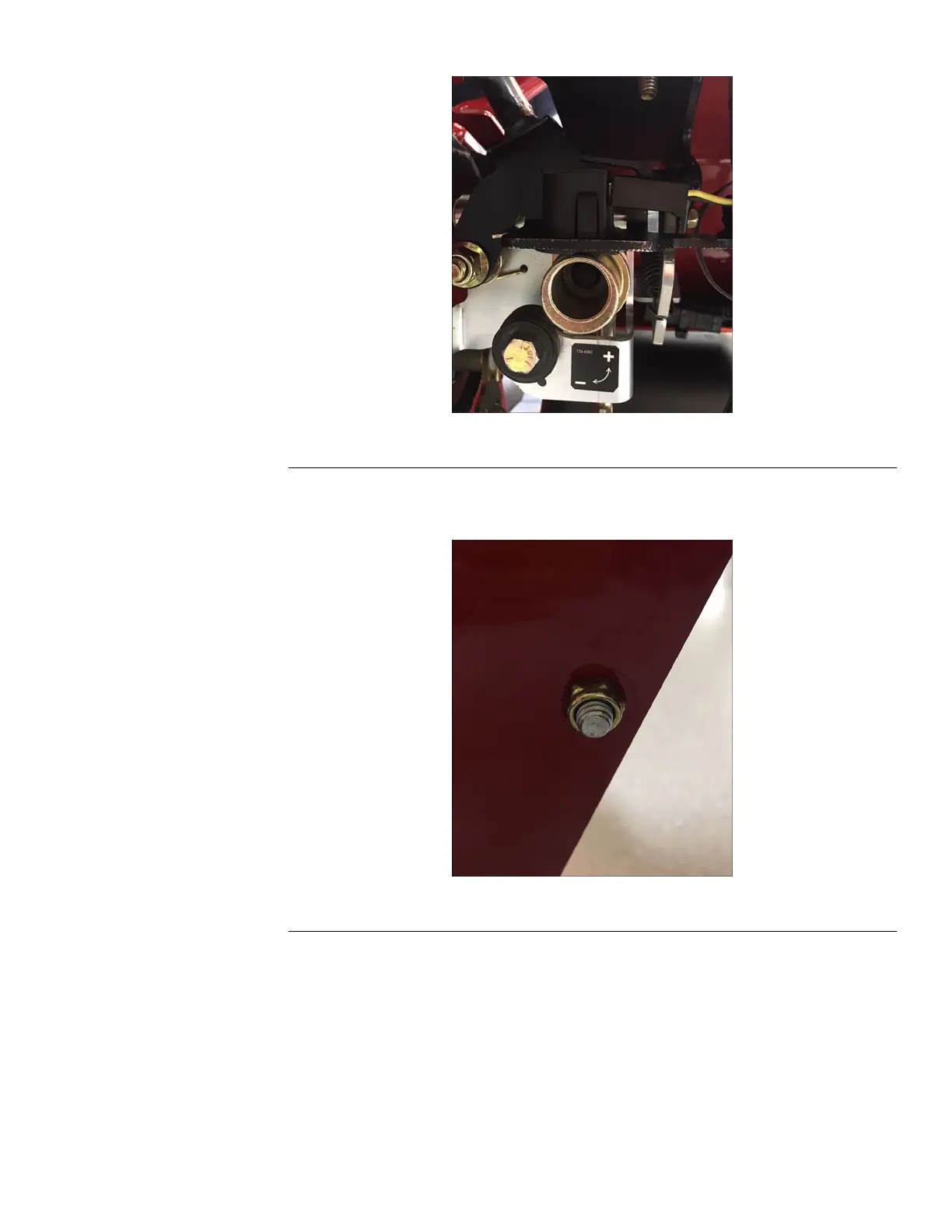

Figure79
4.Cuttheziptiesecuringthewiringharnesstothemotioncontrol.
5.Removetheboltandnutsecuringthedampertothecontroltower.
g311246
Figure80
6.Removetheupperandlowercontrolrods.
7.Removetheboltandnutsecuringthemotioncontroltothecontrolrod.
PROLINE®ServiceManual
Page6–17
Controls:ServiceandRepairs
3431-988RevA
