ControlHandleRemoval(continued)

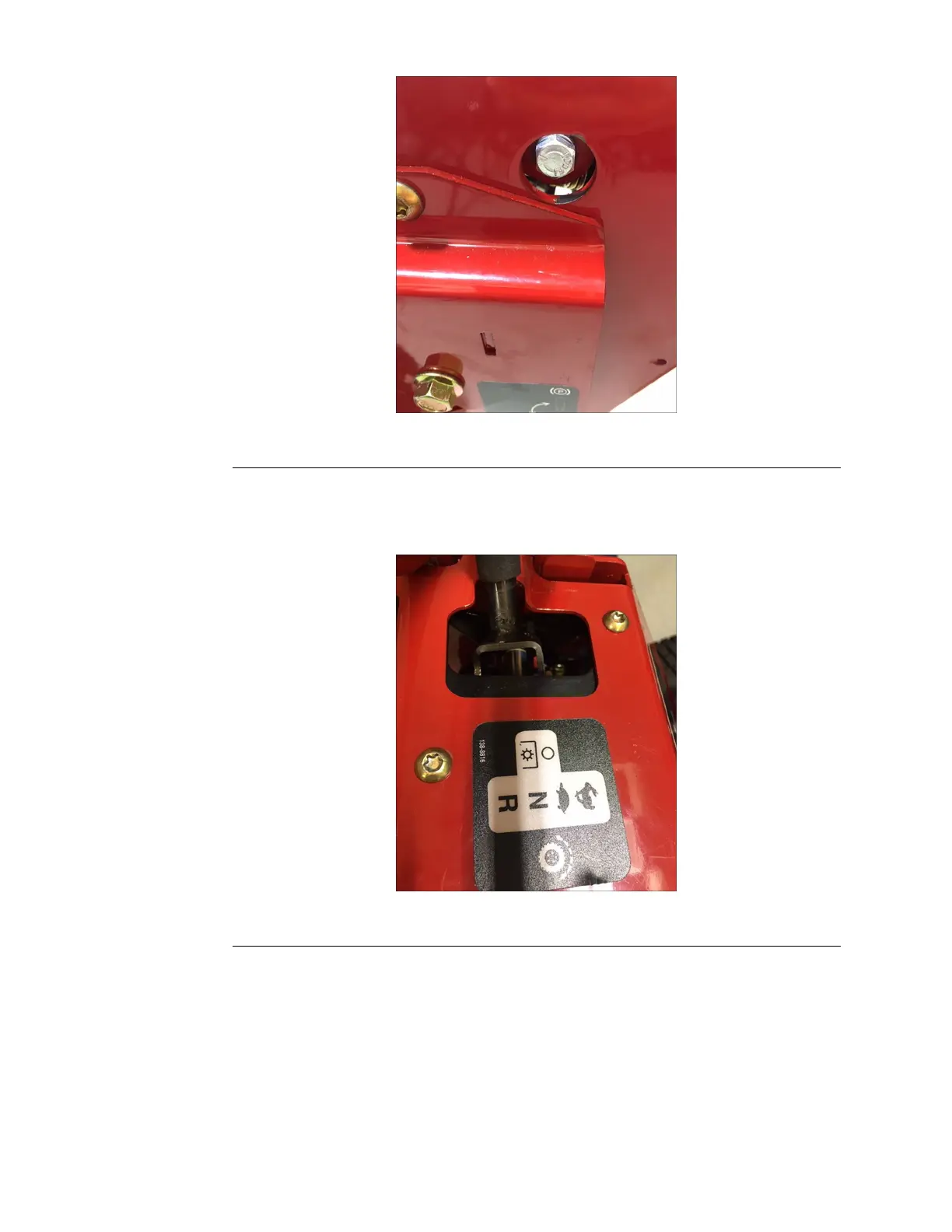

g311247
Figure81
8.Removetheboltsecuringthereferencebartothemotioncontrolarm.
9.Removethe2torxboltsthesecurethemotioncontrolarmtothecontrol
tower.
g311248
Figure82
10.Removethemotioncontrolarmfromthecontroltower.
11.Removethespringclipsecuringthedampertothemotioncontrolarm.
Controls:ServiceandRepairs
Page6–18
PROLINE®ServiceManual
3431-988RevA
