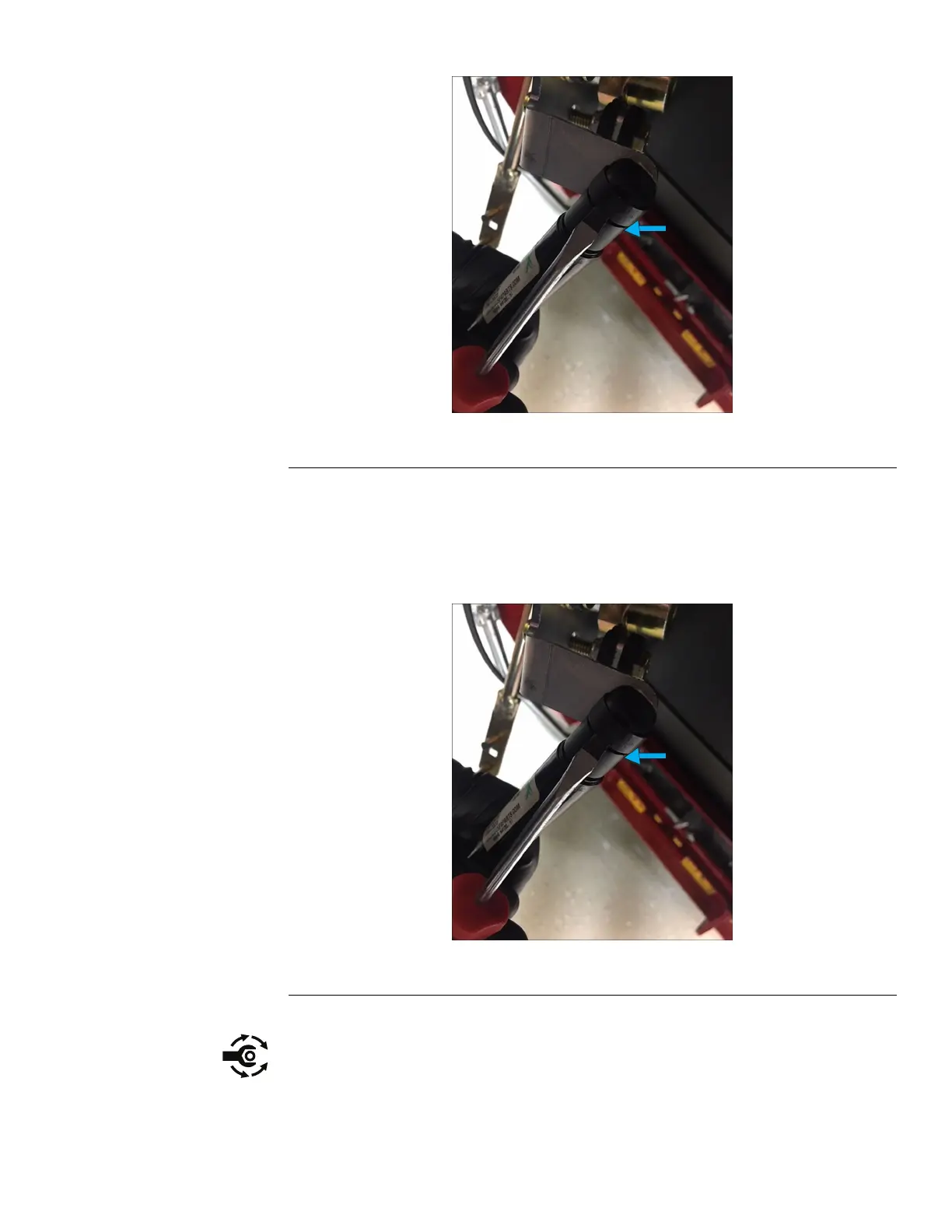

ControlHandleRemoval(continued)
g311249
Figure83
12.Removethemotioncontrolarmfromthemachine.
ControlHandleInstallation
1.Installthemotioncontrolarmontothemachine.Installthespringclip
securingthedampertothemotioncontrolarm.
g311249
Figure84
2.Installthemotioncontrolarmtothecontroltower.
3.Install2torxboltstosecurethemotioncontrolarmtothecontroltower.
Torqueboltsto18N•m(160±20in-lb).
PROLINE®ServiceManual
Page6–19
Controls:ServiceandRepairs
3431-988RevA
