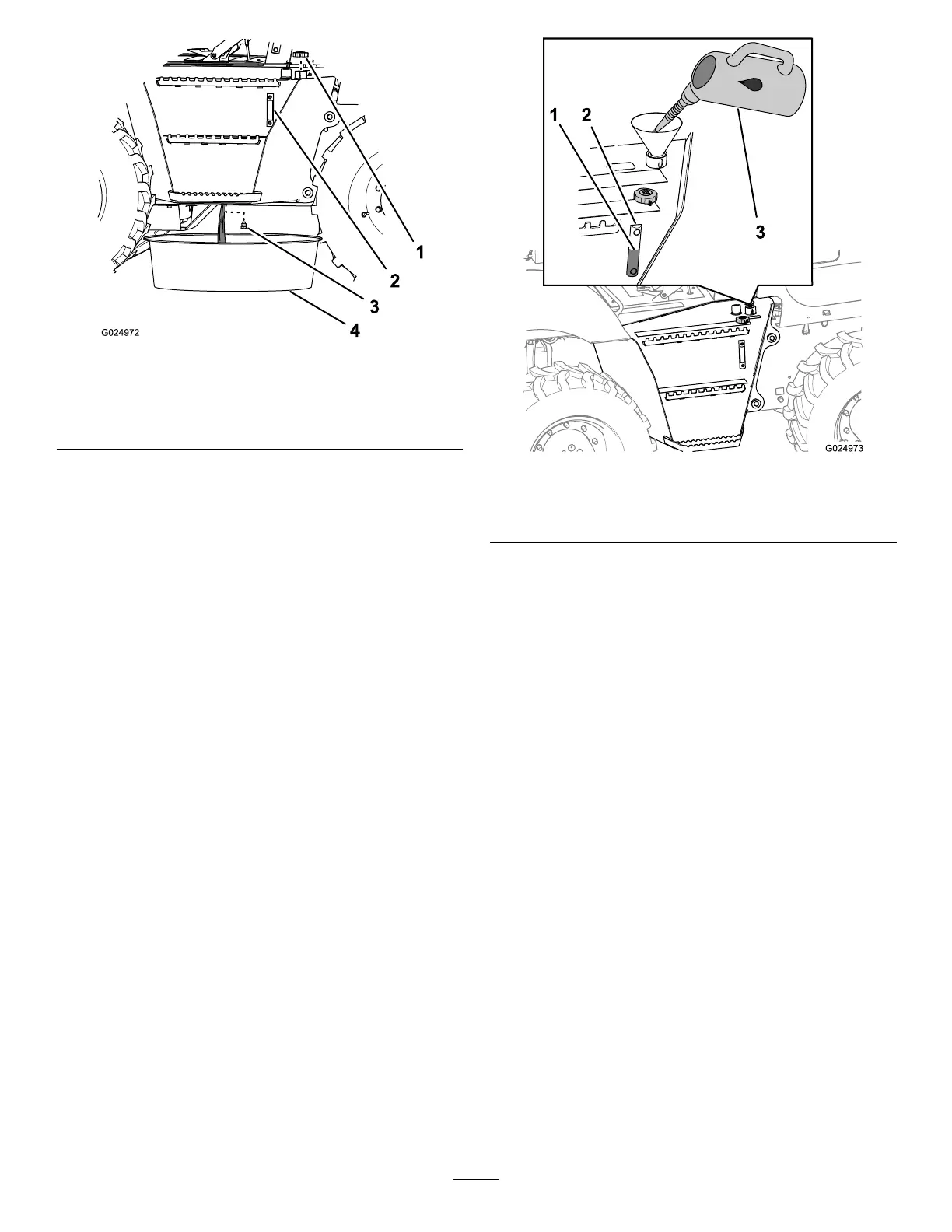

Figure108

1.Fillcap4.Plug

2.Sightgauge

5.Drainpan

3.Hydraulicreservoir

7.Removethedrainplugfromthehydraulicreservoir

(locatedunderneaththereservoir),anddrainthe

reservoir(Figure108).

8.Examinetheconditionofthesealonthedrainplug.

Note:Replacethesealifitiswornordamaged.

9.Installthedrainplug(Figure108).

Important:Changethehydraulic-pressure

andhydraulic-returnlterswhenyouchange

thehydraulicuid;refertoChangingthe

Hydraulic-chargeFilter(page72)andChanging

theHydraulic-returnFilter(page73).

10.RotatethebatterydisconnectswitchtotheOn

positionandinstalltherightsidepanel;referto

Battery-DisconnectSwitch(page21)andInstallingthe

SidePanels(page46).

FillingtheHydraulic-uidReservoir

1.Fillthehydraulic-uidreservoirwiththespecied

hydraulicuiduntiltheuidlevelisatthemidpointof

thesightgauge(Figure109).

Figure109

1.Filllevel(midpoint)3.Hydraulicuid

2.Sightgauge

2.Cleanthellcapwithsolvent.

3.Installthellcap(Figure109).

4.Starttheengineandletitidleforapproximately2

minutes.

5.Stoptheengineandremovethekeyfromthekey

switch.

6.Checkaroundthepressureandreturnltersforleaks.

7.Checkthedrainplugforleaks.

8.Checkthelevelofthehydraulicuid.
