Workman MDX--DPage 4 -- 22Drive Train

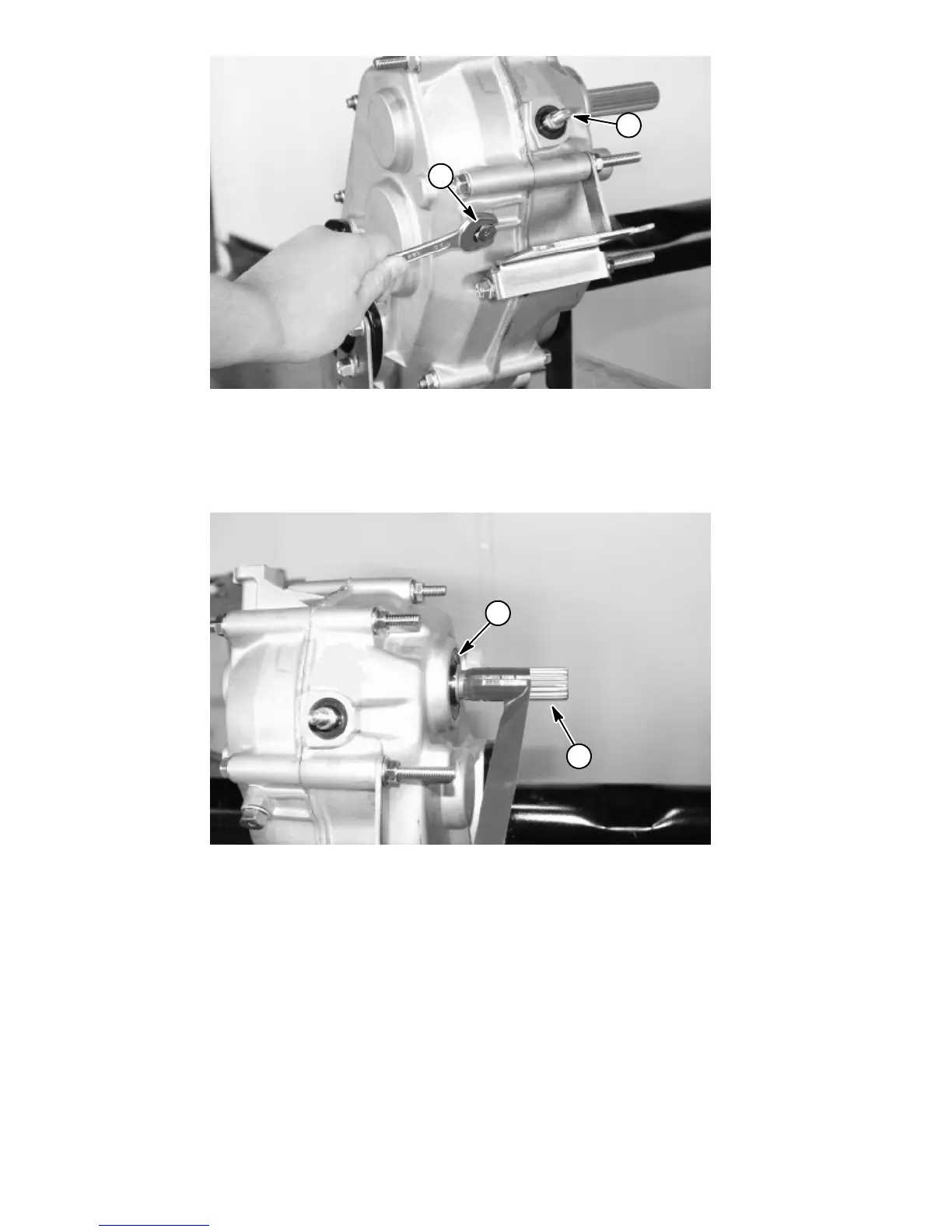

1. Bolt (steel ball, spring & gasket) 2. Selector shaft
Figure 20
1
2
C. Remove bolt near the selector shaft. Remove
spring and steel ball. Replace gasket if damaged.
1. Input shaft 2. Oil seal
Figure 21
1
2
D. Wrap vinyl tape around the splined portion of the
input shaft. This should protect the o il seal from being
damaged.
