Toro Workman MDX-D Service Manual

Workman MDX--D Drive TrainPage 4 -- 23

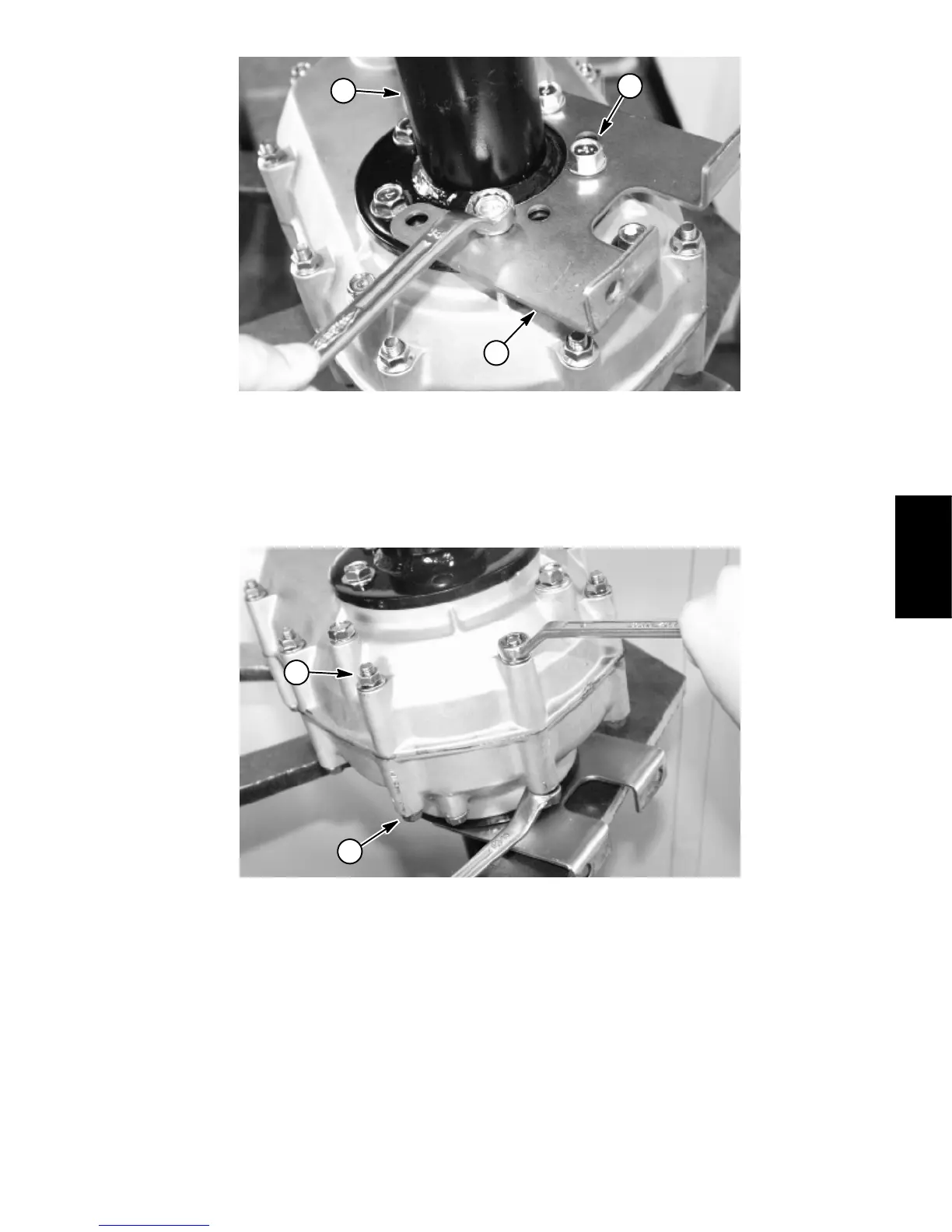

1. Flange bolts (3 used)
2. Axle bracket
3. Axle case
Figure 22
1
2
3
E. Remove three (3) flange bolts securing the axle
bracket and axle case to each case. Separate brack-
et from each axle case.
1. Flange bolt (10 used) 2. Flange nut
Figure 23
1
2
F. With the input shaft side down, loosen and re-
move flange bolts and nuts securing the case (RH)
and case (LH) together. Note location of cable brack-
et for assembly purposes.
Drive T rain
