Workman MDX--DPage 4 -- 24Drive Train

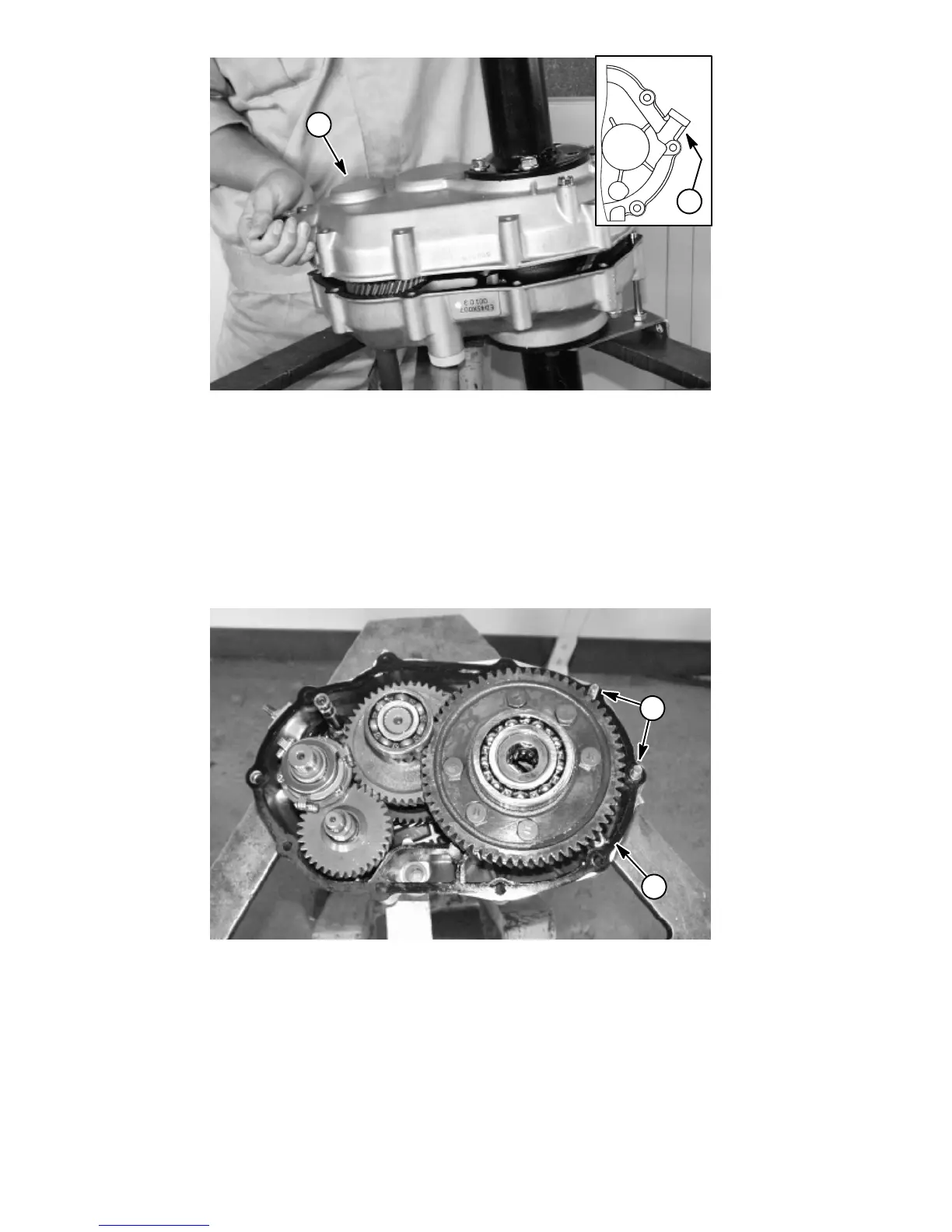

1. Case (RH) 2. Governor boss
Figure 24
1
2
IMPORTANT: Make sure to not hit the governor
boss too hard when separating the cases, the boss
may get damaged. Do not pry open the two cases
with a screw driver, damage may result to the seal-
ing surfaces.
G. Hold the case (RH) and lift up while lightly tapping
the governor boss with a plastic hammer.
2. Remove input shaft, center shaft and differential assemblies.
1. Gasket 2. Pipe knock
Figure 25
1
2
A. Remove gasket and pipe knocks.
