Workman MDX--DPage 4 -- 26Drive Train

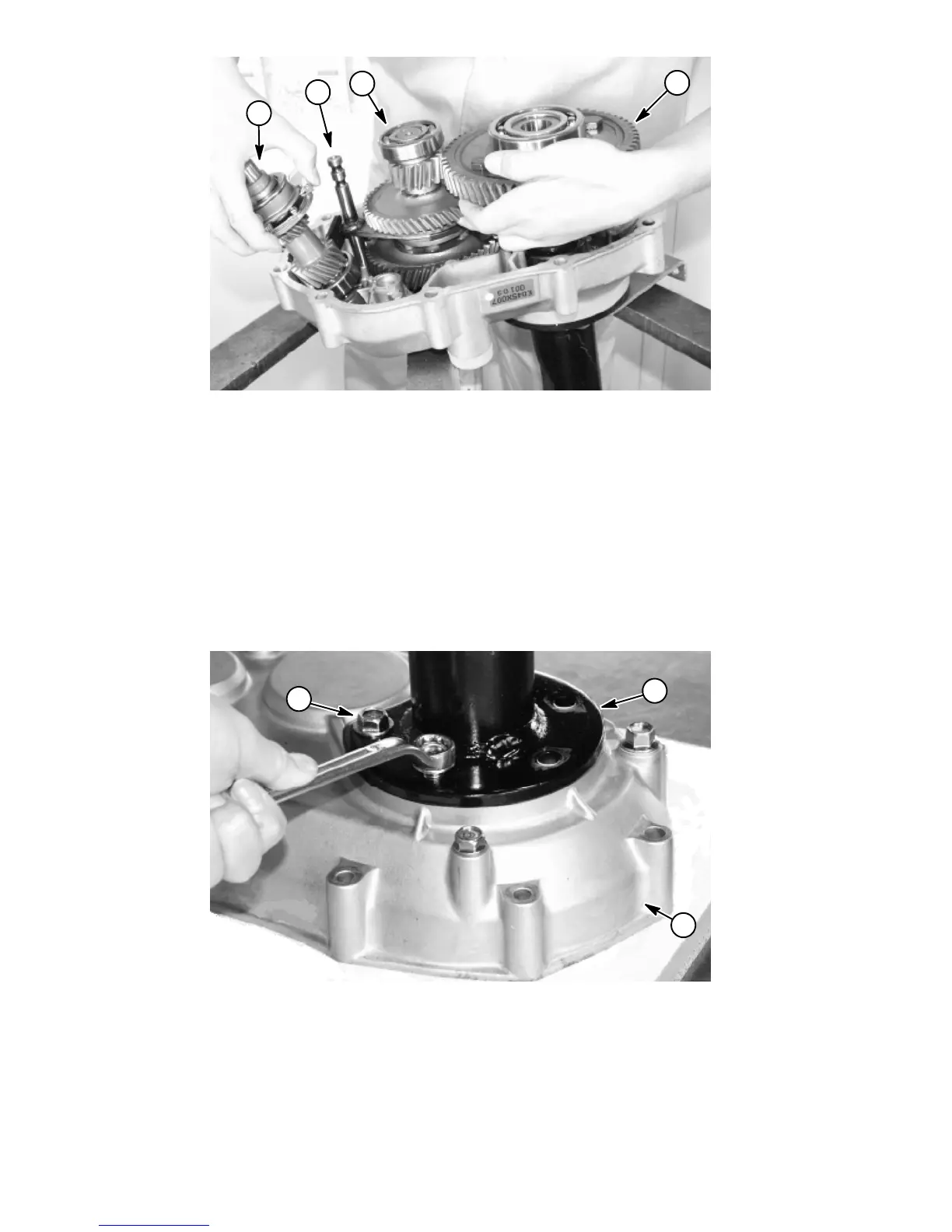

1. Differential assembly
2. Input shaft assembly
3. Center shaft assembly
4. Shift shaft
Figure 28
1
3
2
4
IMPORTANT: Make sure to not damage the oil seal
when removing the i nput shaft.
NOTE: If any of the assemblies can not be pulled out by
hand, hold the assembly while gently tapping the case
with a plastic hammer. Make sure to tap equally around
the case.
G. Lift up differential assembly, center shaft assem-
bly and input shaft assembly at the same time. First,
remove input shaft assembly. Then, remove center
shaft assembly with the shift shaft and differential as-
sembly.
3. Remove axle case from case (RH and LH).
1. Flange bolt
2. Axle case
3. Transaxle case
Figure 29
1
2
3
A. Remove remaining two (2) flange bolts securing
each axle case to the case. Remove axle case from
the transaxle case.
To Next Page
