Workman MDX--D Drive TrainPage 4 -- 27

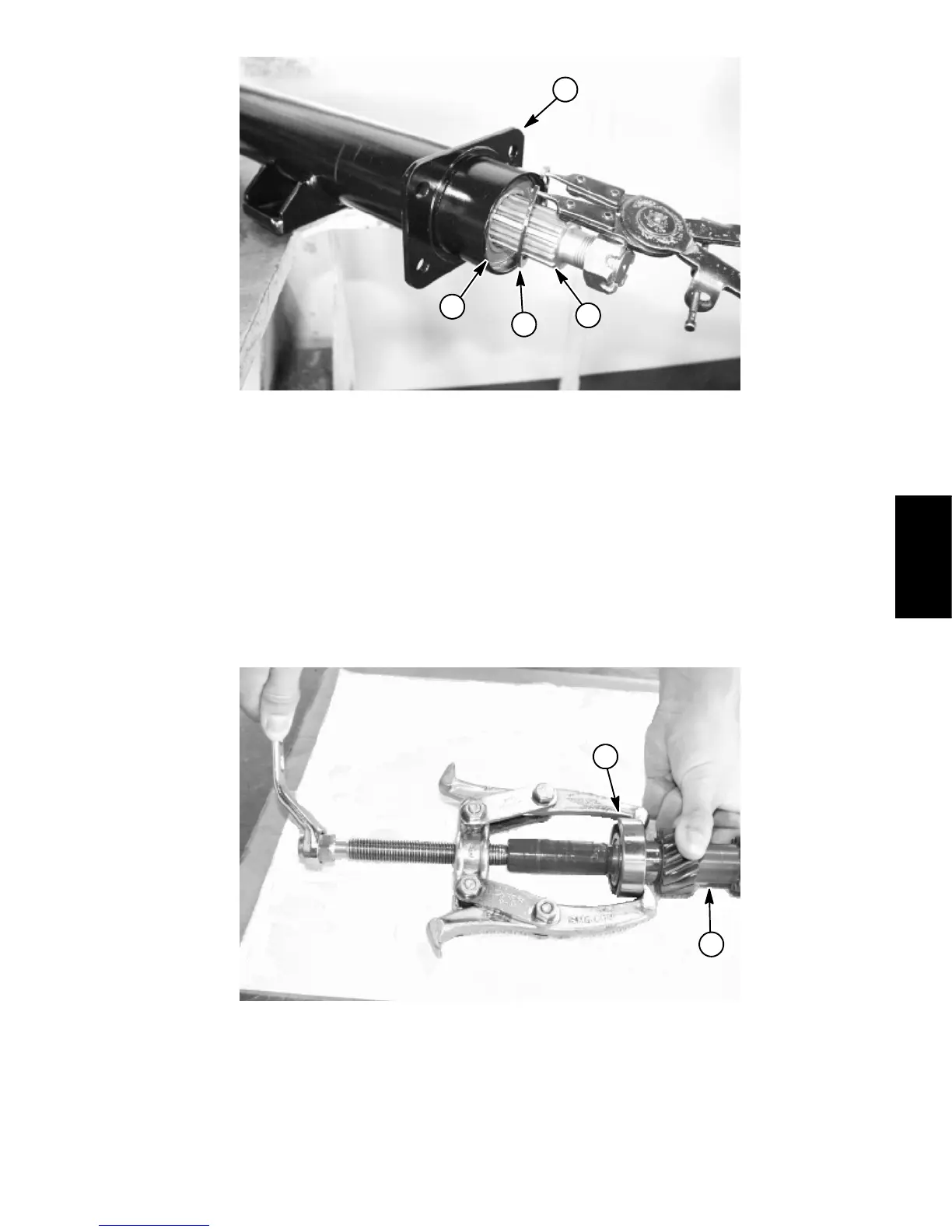

1. Snap ring
2. Axle case
3. Axle shaft
4. Ball bearing
Figure 30
3
2
4
1
IMPORTANT: Do not reuse snap ring. Discard and
replace ring with new one.
B. Remove snap ring from the axle case. Remove
axle shaft from case.
IMPORTANT: When replacing ball bearings, both
ball bearings must be replaced as a set.
C. Ball bearing roller balls must be free of deforma-
tion and scoring. Ball bearing must spin freely and
have minimum axial play. Replace ball bearing as
necessary.
4. Disassemble input shaft assembly.
1. Ball bearing 2. Input shaft
Figure 31
1
2
IMPORTANT: Do not reuse ball bearings that have
been removed.
A. Remove ball bearing from the input shaft with a
bearing puller.
Drive T rain
