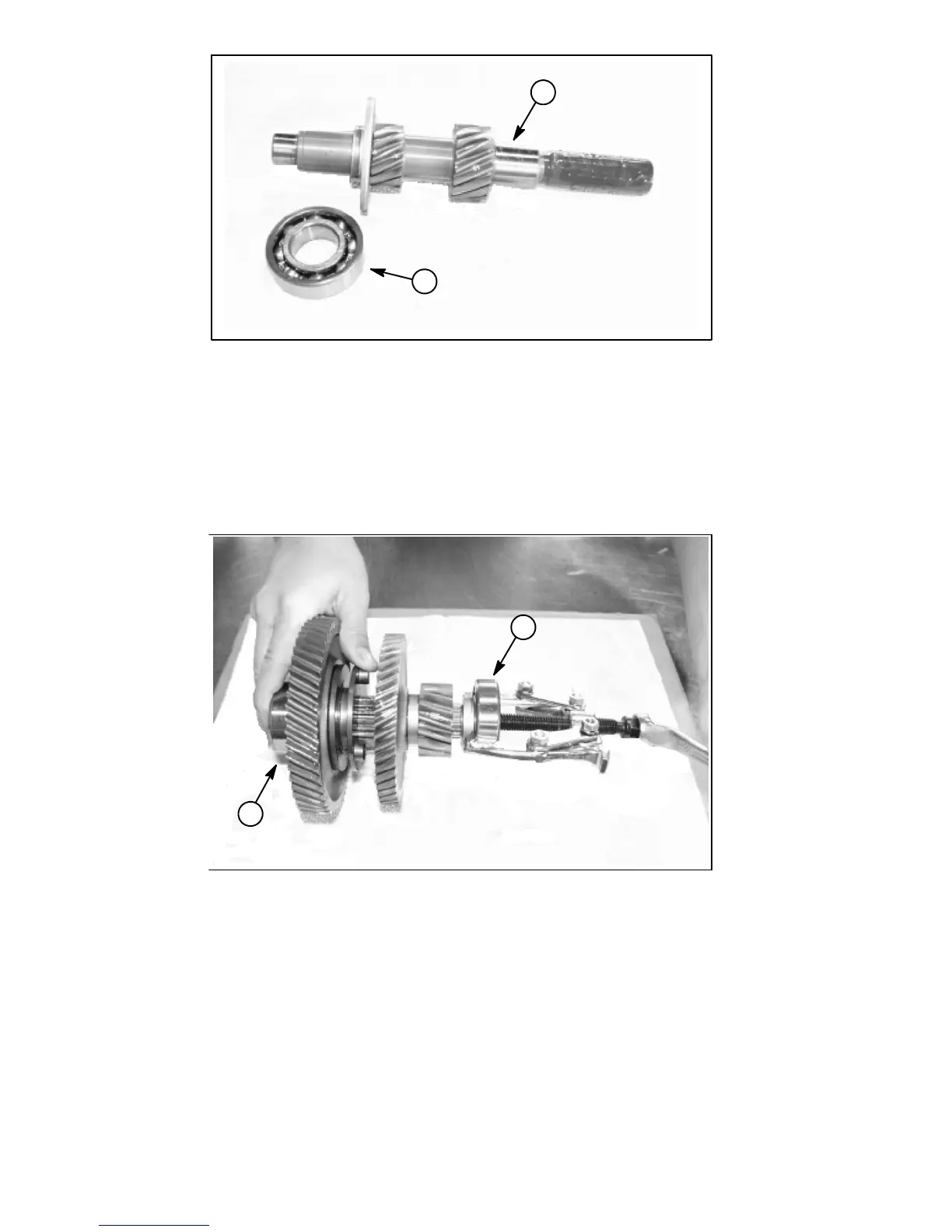

Workman MDX--DPage 4 -- 28Drive Train
1. Input shaft 2. Ball bearing
Figure 32
1
2
B. Replace input shaft if worn or damaged. Gear
teeth that are cracked, broken, chipped or missing
are not acceptable.
C. Ball bearing roller balls must be free of deforma-
tion and scoring. Ball bearing must spin freely and
have minimum axial play. Replace ball bearing as
necessary.
5. Disassemble center shaft assembly.
1. Ball bearing 2. Ball bearing
Figure 33
1
2
IMPORTANT: Do not reuse ball bearings that have
been removed.
A. Remove ball bearings from the center shaft as-
sembly. Discard removed bearings.
