Workman MDX--D Drive TrainPage 4 -- 29

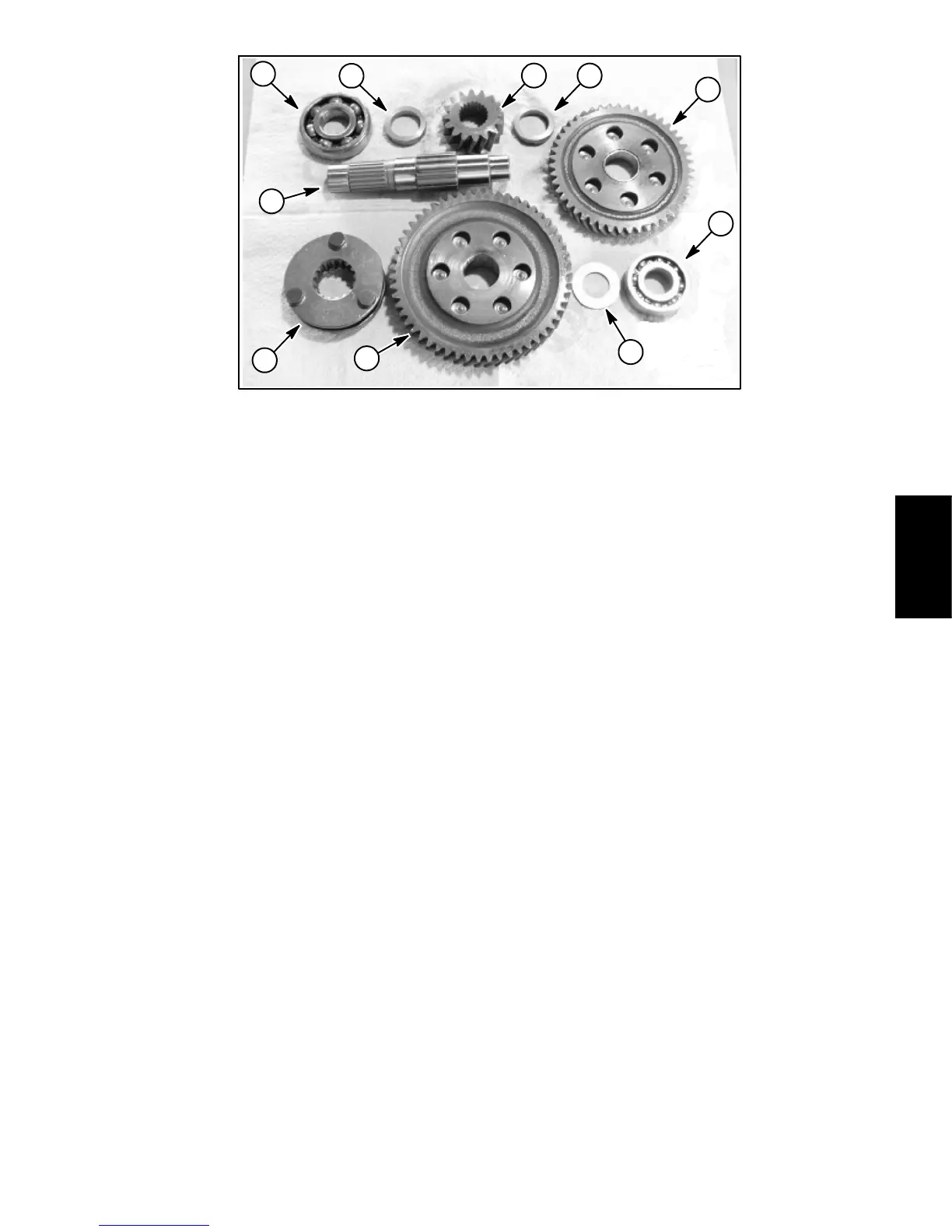

1. Gear 55
2. Gear 47
3. Gear (small)
4. Ball bearing
5. Ball bearing
6. Pin clutch
7. Center shaft
8. Collar (2 used)
9. Spacer
Figure 34
1
2
4
9
83
8
5
7
6
B. Remove gears, pin clutch, collars and spacer
from the input shaft.
C. Replace gears if worn or damaged. Cracked, bro-
ken, missing or chipped gear teeth are not accept-
able.
D. Replace center shaft if worn or damaged. Splines
that are cracked, broken, chipped or missing are not
acceptable.
E. Replace pin clutch if cracked or bent.
F. Replace collars or spacer if excessively worn or
damaged. Replace both collars a s a set.
Drive T rain
