Workman MDX--DPage 4 -- 30Drive Train

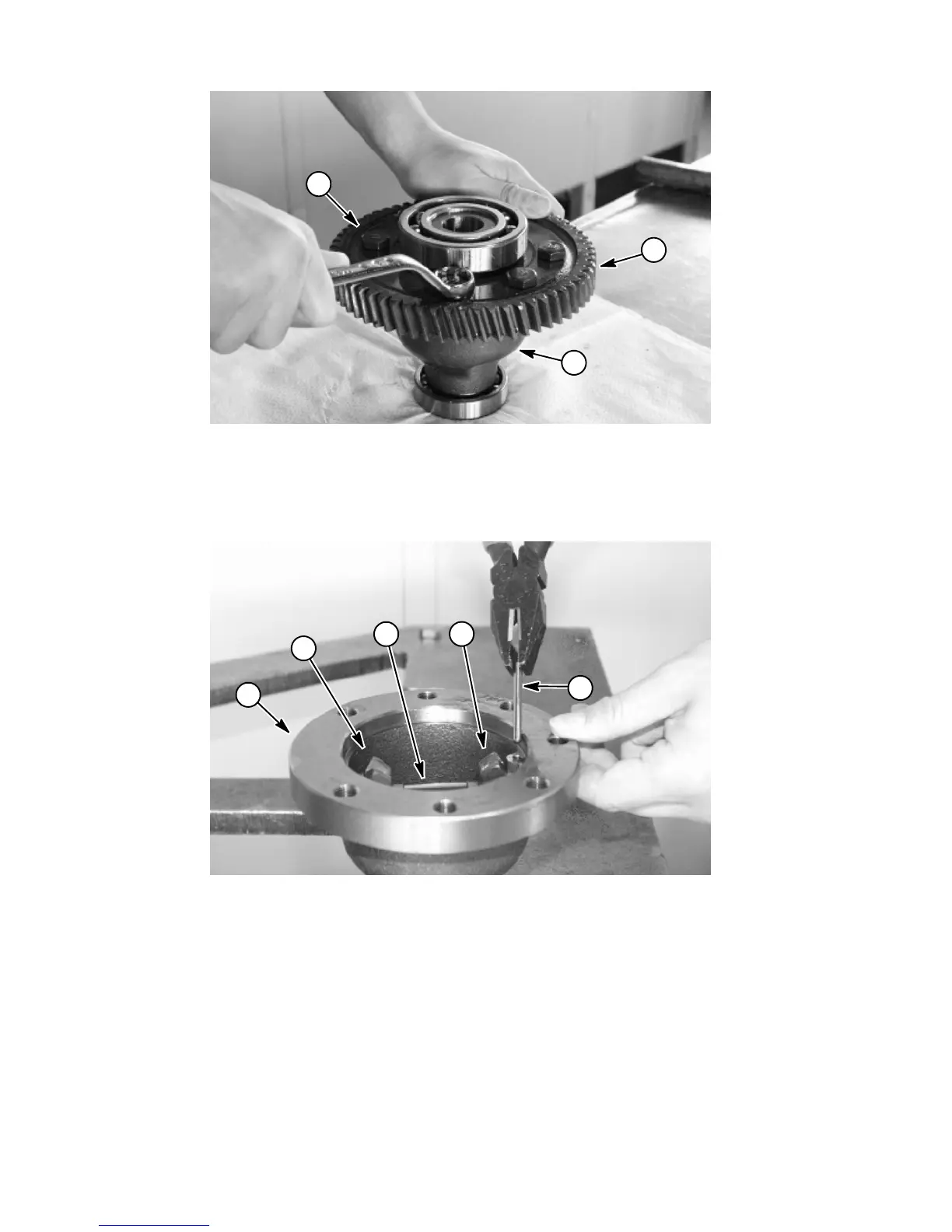

6. Disassemble differential case assembly.
1. Bolt (6 used)
2. Gear 62
3. Differential case
Figure 35
1
2
3
A. Remove six (6) bolts securing gear 62 to the dif-
ferential case.
1. Spring pin
2. Differential case
3. Pinion shaft
4. Pinion gear
Figure 36
1
2
3
4
4
NOTE: The spring pin can be punched out from the hole
on the opposite side of gear 62.
B. Remove spring pin from the differential case. Dis-
card pin and replace it with new spring pin.
C. Remove pinion shaft and gears from the case.
Separate gears from shaft.
