Workman MDX--D Drive TrainPage 4 -- 31

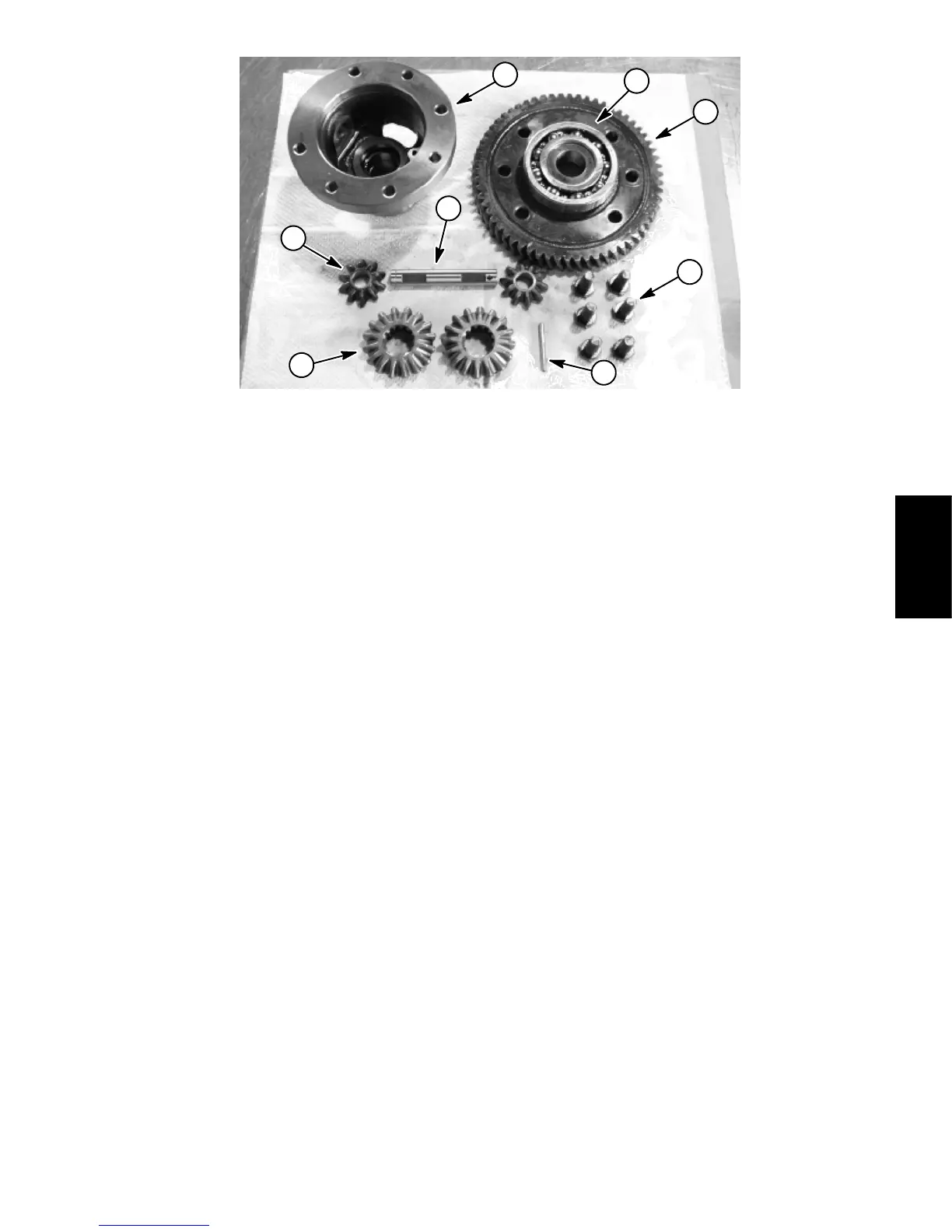

1. Side gear (2 used)
2. Pinion gear (2 used)
3. Gear 34
4. Ball bearing
5. Differential case
6. Pinion shaft
7. Spring pin
8. Bolt (6 used)
Figure 37
1
6
2
8
3
4
5
7
D. Replace gears if worn or damaged. Cracked, bro-
ken, missing or chipped gear teeth are not accept-
able.
E. Ball bearing roller balls must be free of deforma-
tion and scoring. Ball bearing must spin freely and
have minimum axial play. Replace ball bearing as
necessary.
F. Replace case if machined areas where the side
and pinion gears mesh are scored or if the pinion
shaft fits loosely in its bore.
G.Replacepinionshaftifcrackedorbent.
H. Replace oil seal if cracked, nicked or distorted
such that it would not hold a proper seal.
Drive T rain
