Toro Workman MDX-D Service Manual

Workman MDX--D Drive TrainPage 4 -- 35

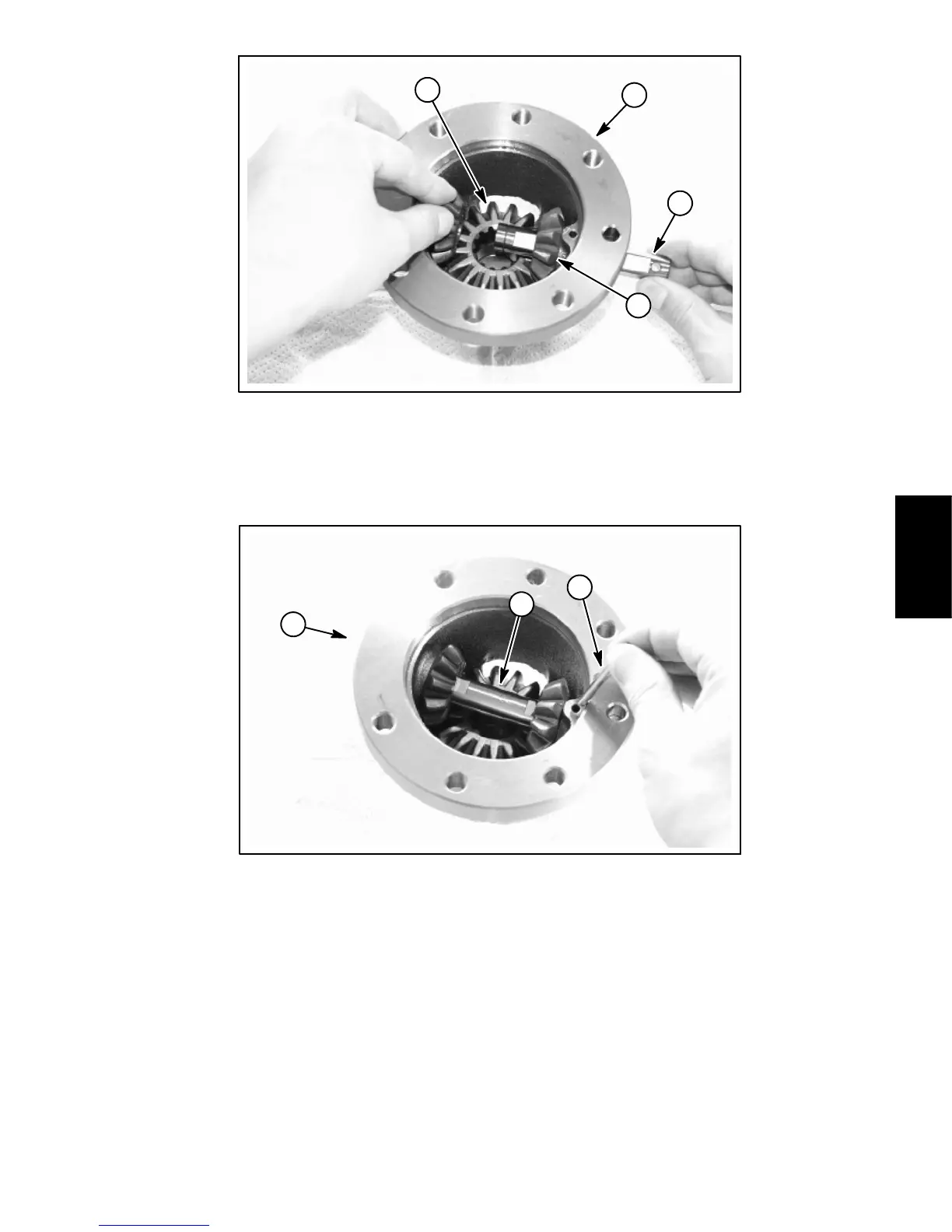

1. Side gear
2. Pinion gear
3. Pinion shaft
4. Differential case
Figure 43
1
4
3
2
B. Install side gear, both pinion gears and pinion
shaft into the differential case.
1. Spring pin
2. Differential case
3. Pinion shaft
Figure 44
1
2
3
C. Align pinion shaft hole and install new spring pin
through the differential case and pinion shaft.
Drive T rain
