Workman MDX--DPage 4 -- 36Drive Train

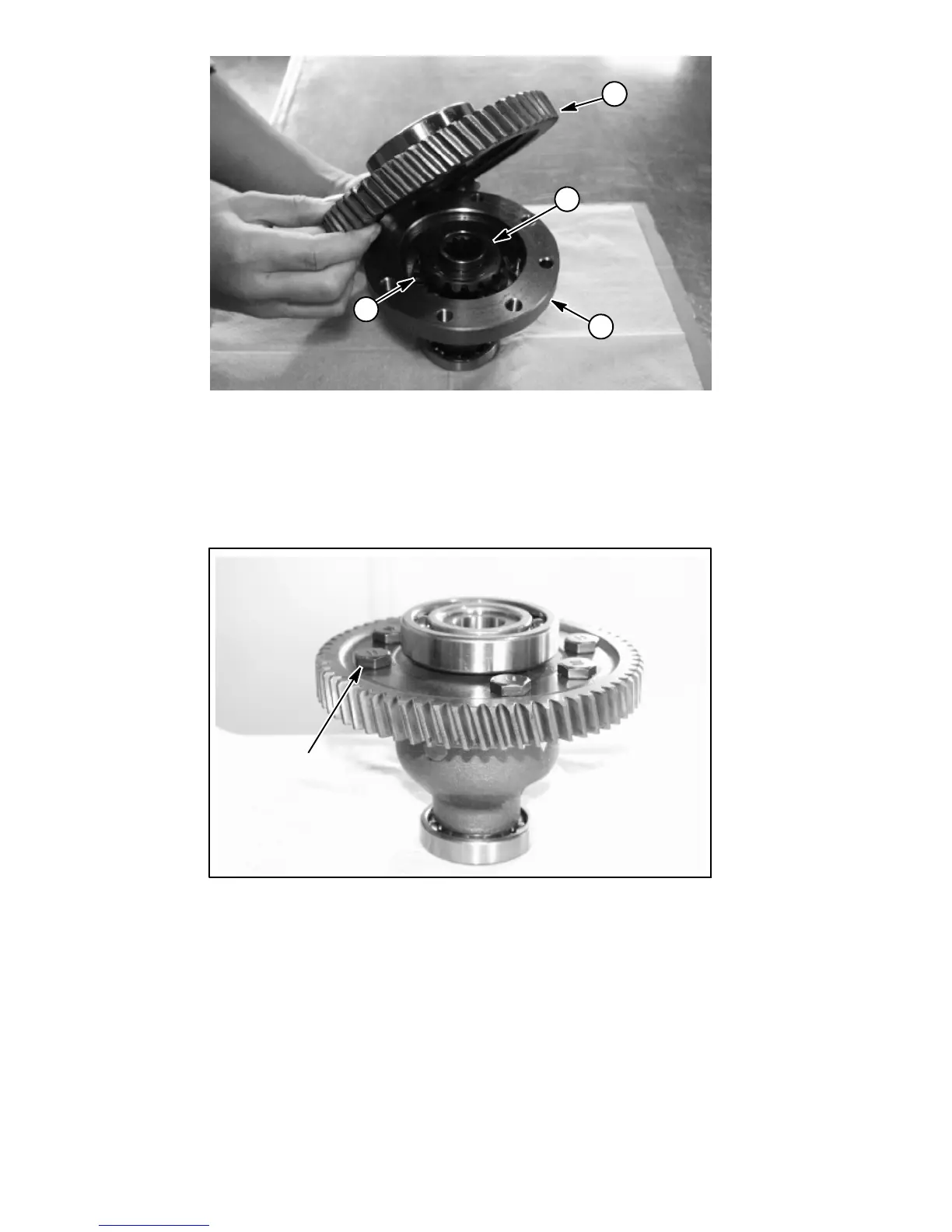

1. Side gear
2. Pinion gear
3. Gear 62
4. Differential case
Figure 45
1
2
4
3
D. Install remaining side gear to the pinion gears. E. Secure gear 6 2 to the differential case with six (6)
bolts. Torque bolts in a crossing pattern from 40 to 45
ft--lb (54 to 61 N--m).
Figure 46
40 to 45 ft--lb
(54to61N--m)
IMPORTANT: The length from the outer most side of
each ball bearing must be from 4.854” to 4.882”
(123.3 to 124.0 mm) (Fig. 42).
F. If ball bearings were removed, press new ball
bearings onto differential case and gear 62.
G. The differential assembly should appear as
above when assembled.
