Toshiba B-SA4T User Manual

- 22 -
 To print on the shared printer
1. Conduct above-mentioned steps 1 through 18.
2. Log on as the user which is allowed to access the PC with which the printer is shared.
Note: This work requires the administrative privilege. For the user with no administrative privilege, grant it
temporarily.

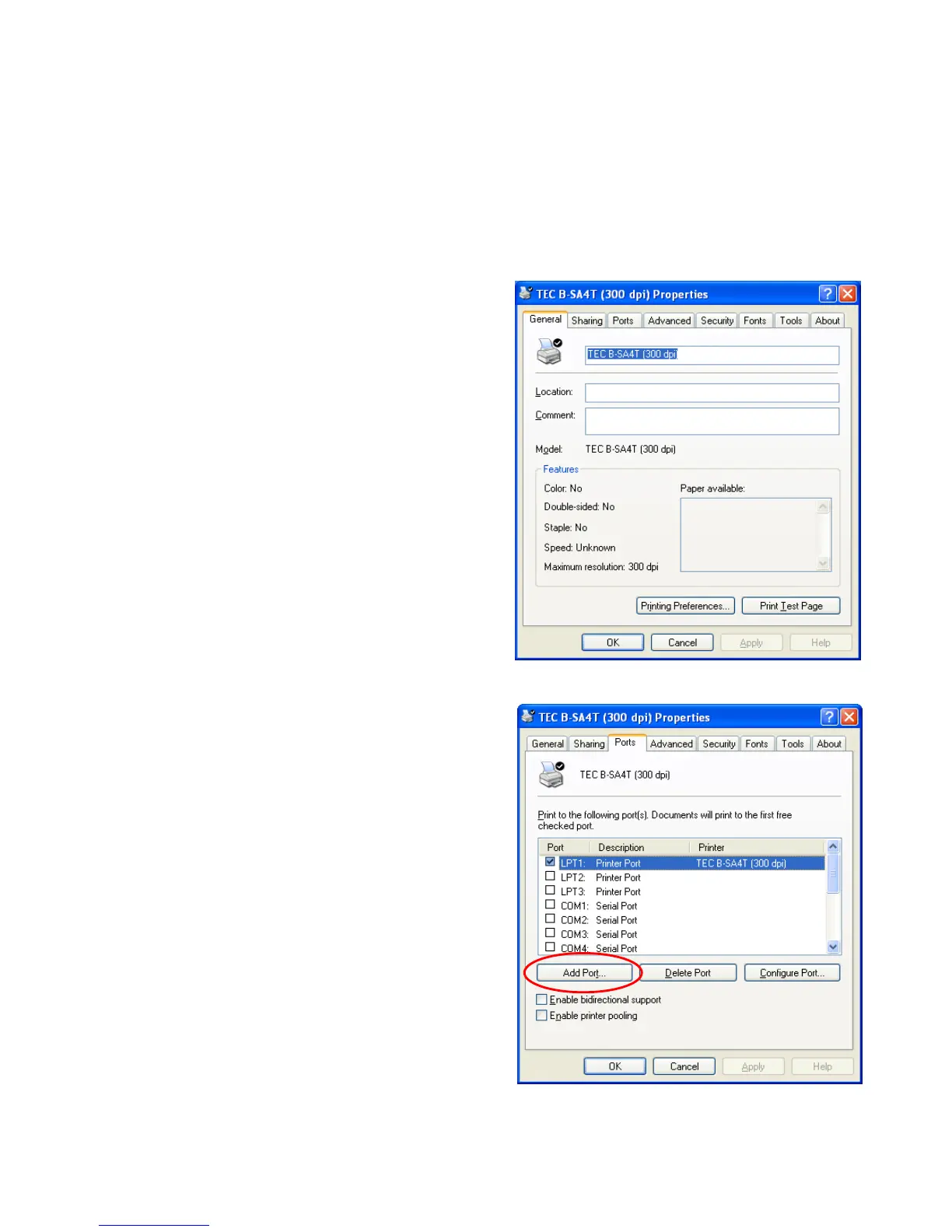

3. Right-click the newly added icon, and select the
“Properties” to open the “Properties” screen.
4. Click the [Port] tab, then click the [Add Port] button.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
