Toshiba B-SA4T User Manual

- 7 -
 The default setting of the function character is a
caret “^” (5EH). When using bar code fonts like
QR code and if you want to specify a function
character as bar code data, you need to specify
two function characters consecutively.
For example, when a caret “^” is used as the
function character, enter “^ ^” as bar code data.

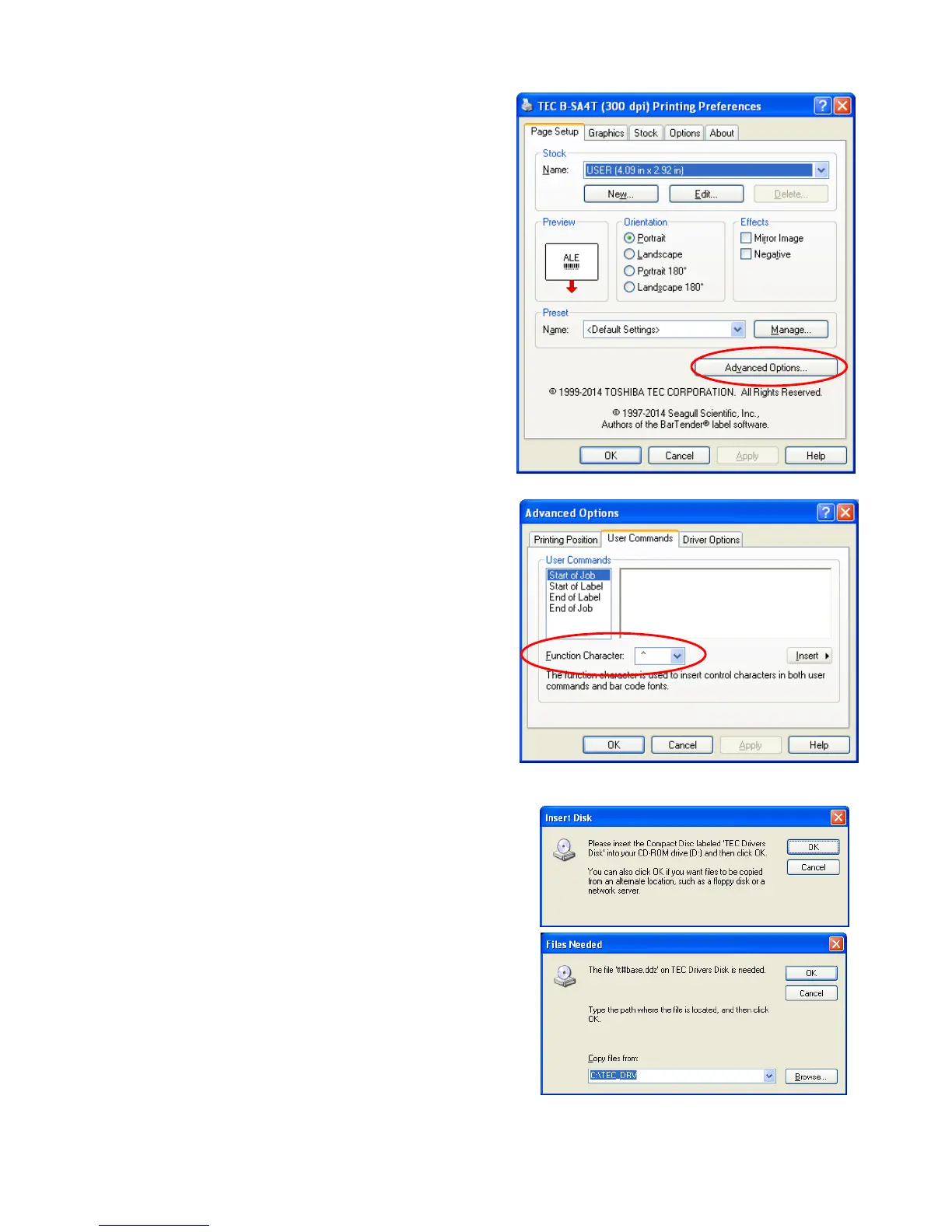

Click the [Page Setup] tab, [Advanced Options]
button, and specify the Function Character.
This is used when binary data is specified as bar
code data.
 When installing the printer driver via USB with “Plug
& Play” enabled, the messages like “Insert Disk”
and “Files Needed” dialog boxes may be displayed.
In this case, click the [OK] button in the “Insert
Disk” dialog box, and specify the folder
(C:\TEC_DRV) for the “Files Needed” dialog box.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
