SELF-DIAGNOSTIC MODE
2 - 104
5. Pixel counter confirmation
- Display on LCD screen
Whether or not to display the pixel counter on the LCD screen is selected (0: Displayed, 1: Not
displayed) in the setting mode (08-1504), and whether or not to display it at the service
technician reference or toner cartridge reference is selected (0: Service technician reference, 1:
Toner cartridge reference) in the setting mode (08-1505).
The following screen is displayed when the buttons, [COUNTER] and [PIXEL COUNTER] are
pressed in this order after “Displayed” is selected with the code above and the power is, as usual,
turned ON. (The displayed buttons are depending on the setting of 08-1505.)

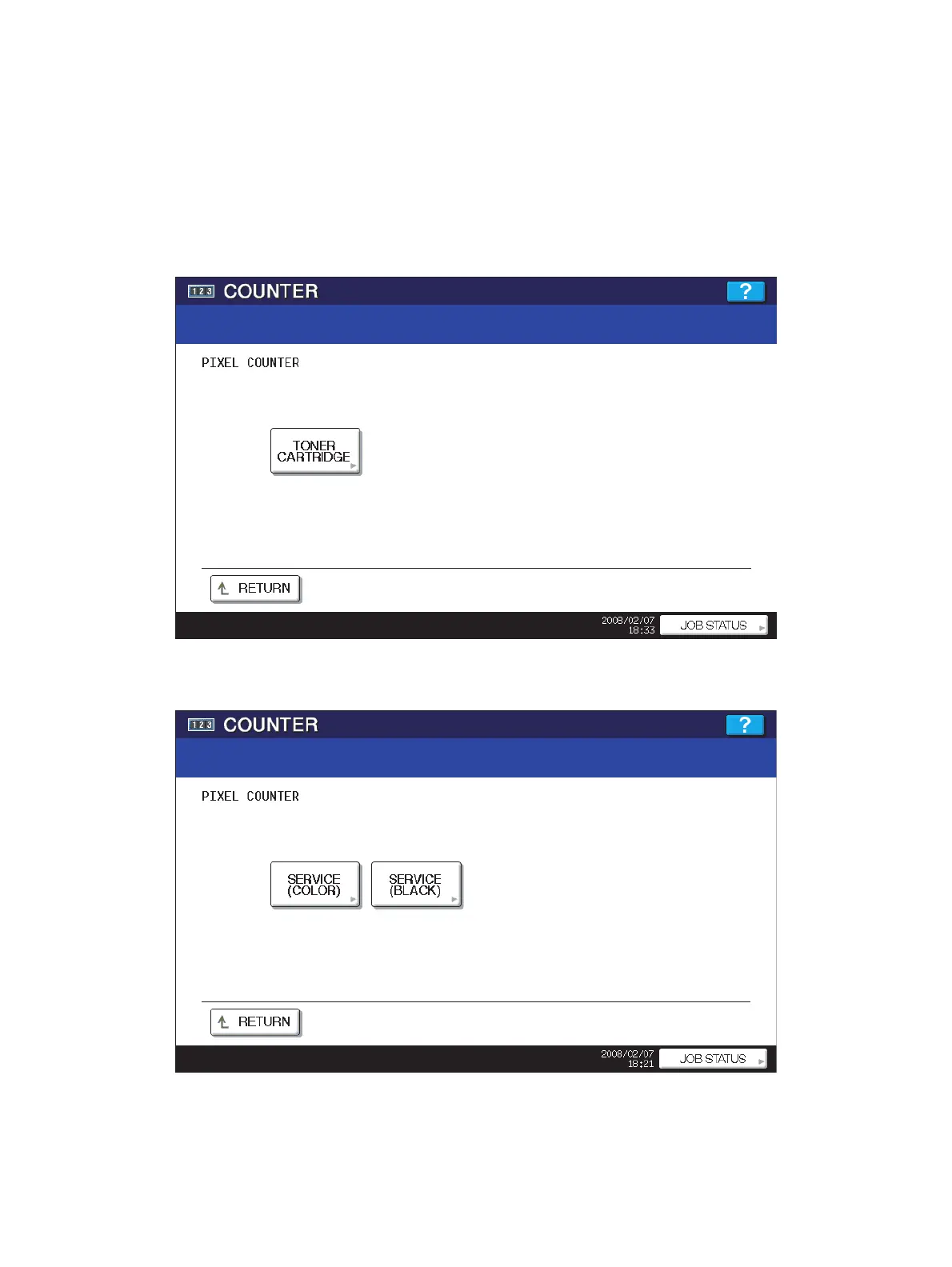

Fig. 2-3
Fig. 2-4 Reference selection screen
When selecting and pressing the button in the above screen, each pixel counter screen is
displayed.
[TONER CARTRIDGE] button: Information screen of toner cartridge reference is displayed.
