PREVENTIVE MAINTENANCE (PM)
5 - 36
5.6.14 Exit unit

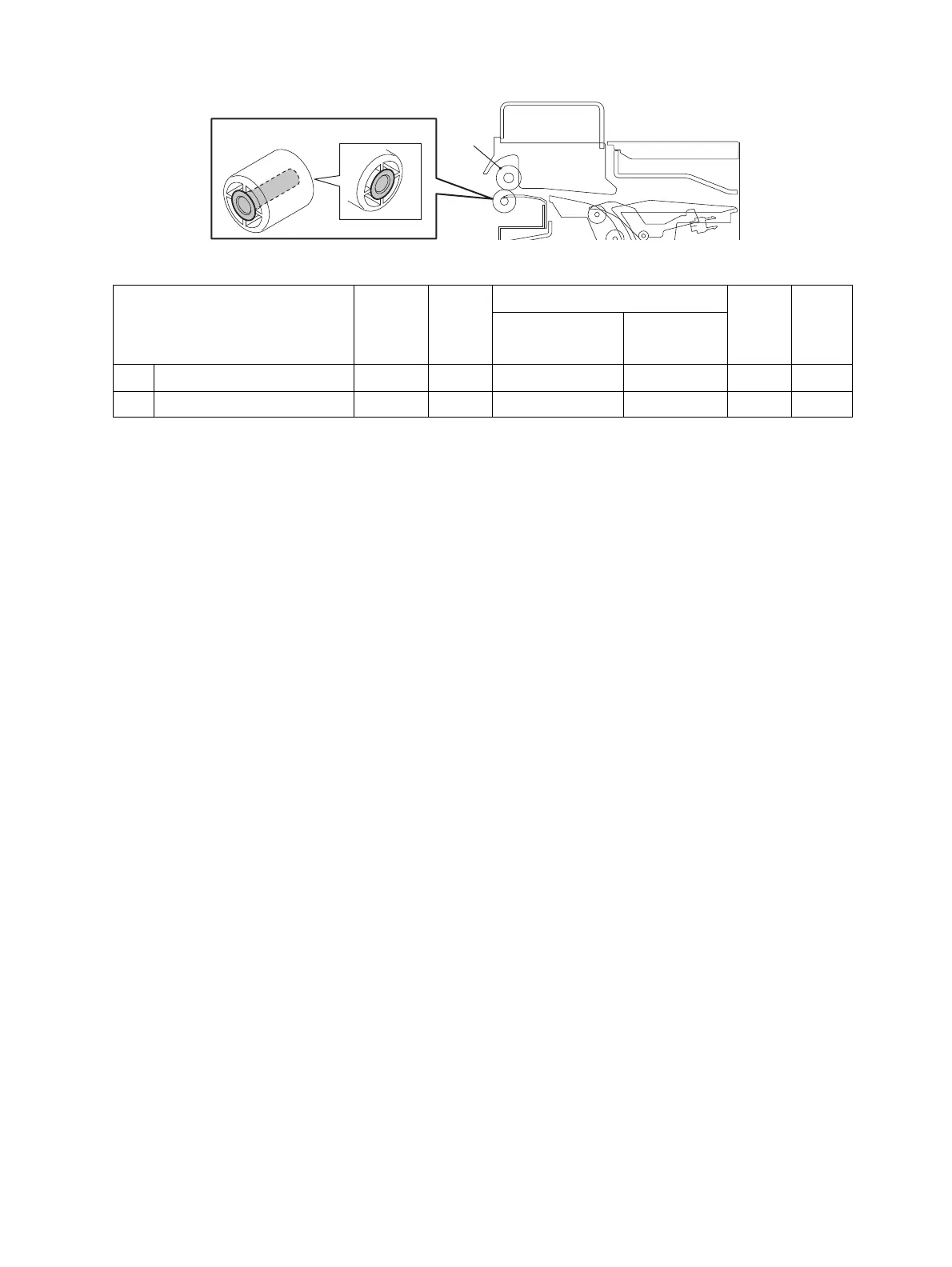

Fig. 5-31
* N2: Lower exit roller
Wipe off any old grease, and then apply 0.5 to 1 rice-sized grains of white grease (Molykote HP-
300) onto the inside of the roller and both end faces of the shaft hole.
Items to check Cleaning
Lubric
ation/
Coatin
g
Replacement
Operati
on
check
Parts
list
<P-I>
(x 1,000 sheets)
(x 1,000 drive
counts)
N1 Upper exit roller A 46-21
N2 Lower exit roller W2 46-30
N2
N1
To Next Page
