ADJUSTMENT
3 - 67
3.8 Adjustment of the Paper Feeding System
3.8.1 Sheet sideways deviation caused by paper feeding
<Procedure>

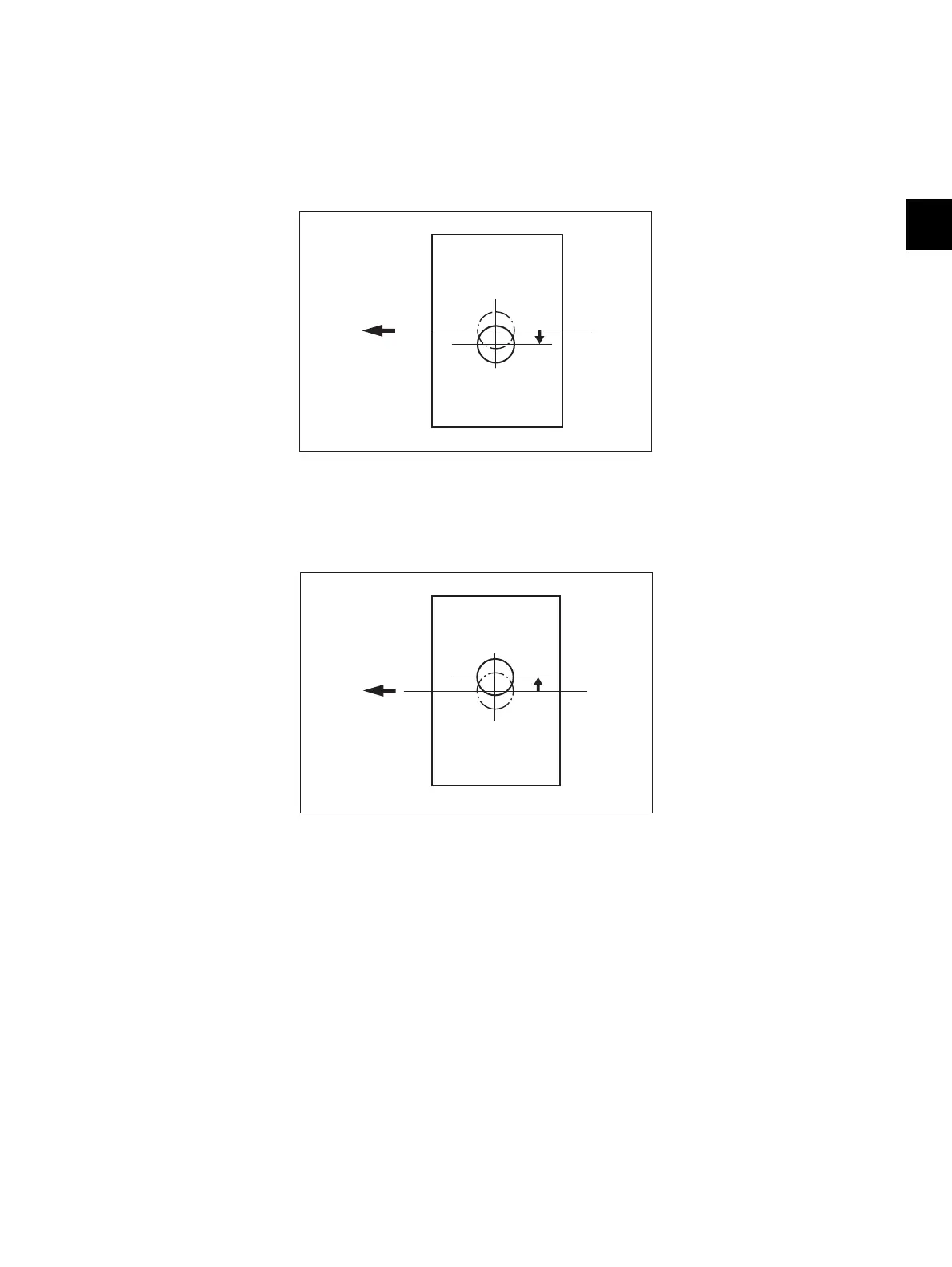

• The center of the printed image shifts to the front side. → Move the guide to the front side (Arrow (A)
direction in the lower figure).
Fig. 3-28
• The center of the printed image shifts to the rear side. → Move the guide to the rear side (Arrow (B)
direction in the lower figure).
Fig. 3-29
Feeding direction
Center
[
Rear
]
[
Front
]
Feeding direction
Center
[
Rear
]
[
Front
]
