Toshiba e-studio2330c Service Handbook

e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C © 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved
FIRMWARE UPDATING
8 - 32
8.3 Firmware Updating with K-PWA-DLM-320
The firmware of the equipment (scanner ROM) and the option (RADF ROM, Finisher ROM, FAX ROM)
can be updated individually by using K-PWA-DLM-320. Update the ROM data written on each board
according to the need such as the case of replacing the board.
Equipment
Options
K-PWA-DLM-320

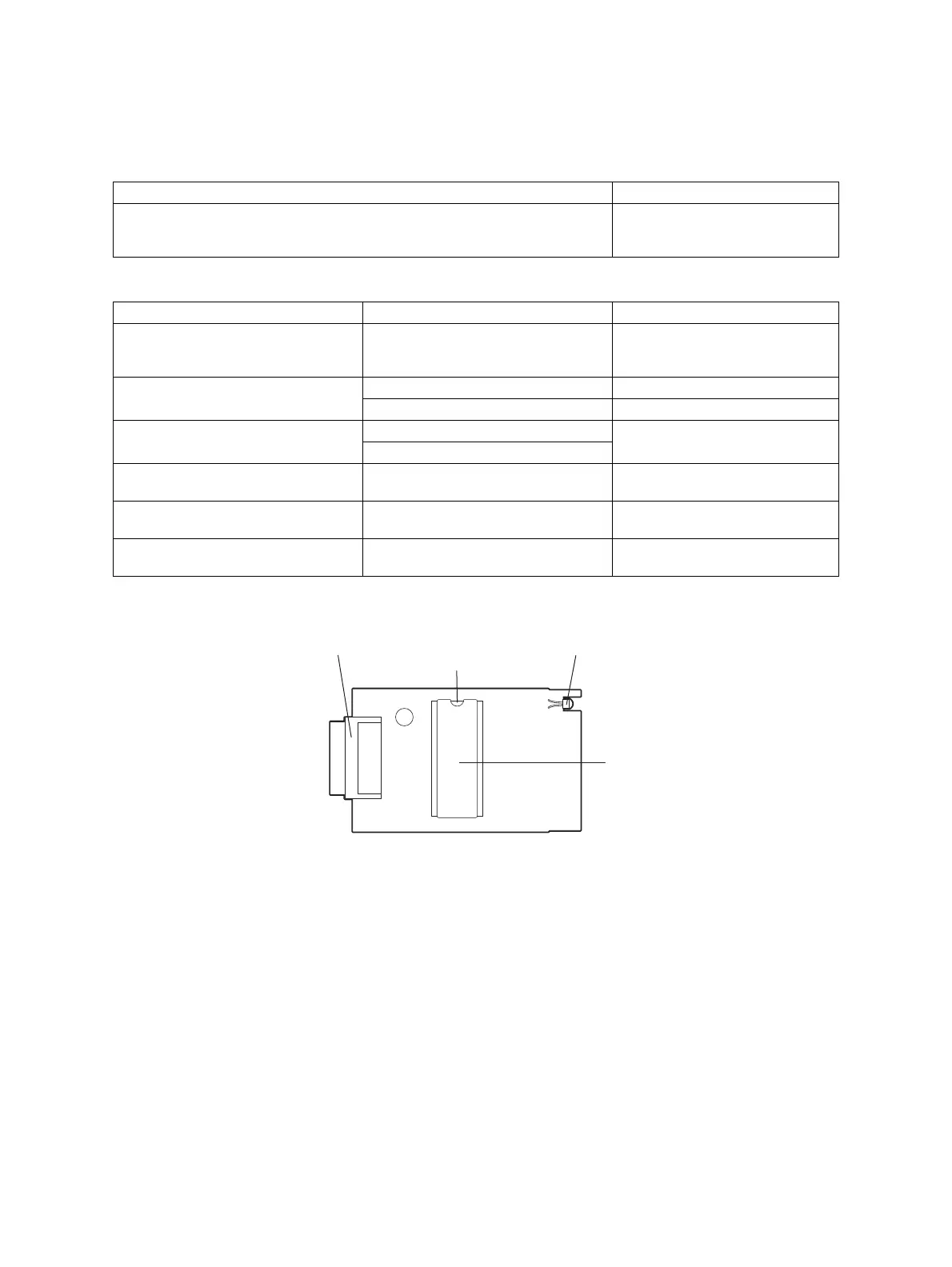

Fig. 8-23
Important:
Pay attention to the direction of the ROM.
Firmware Stored
Scanner ROM
(Scanner firmware)
Scanning section control PC
board
(SLG board)
Model name Firmware Stored
Reversing Automatic Document
Feeder (RADF)
(MR-3018)
RADF firmware RADF control PC board
Finisher
(MJ-1101)
Finisher firmware Finisher control PC board
Converter firmware Converter PC board
Saddle Stitch Finisher
(MJ-1030)
Finisher firmware Finisher control PC board
Saddle stitcher firmware
Hanging Finisher
(MJ-1031)
Finisher firmware Finisher control PC board
Hole Punch Unit
(MJ-6101)
Hole punch unit firmware Hole punch control PC board
Fax Unit
(GD-1250)
Fax unit firmware FAX board
Connector Mark for ROM
installation direction
ROM
LED
