e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C © 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved
ADJUSTMENT
3 - 66
3.7.2 Belt tension adjustment of the Scan motor
(1) Hook the belt tension jig to the motor bracket
and the flame.
(2) Loosen screw-B and -C. (There is no need to
loosen screw-A, since it is a shoulder screw.)
(3) The scan motor is pulled by the belt tension
jig. Fix screw-B and then -C at the stopped
position.
(4) Remove the belt tension jig.

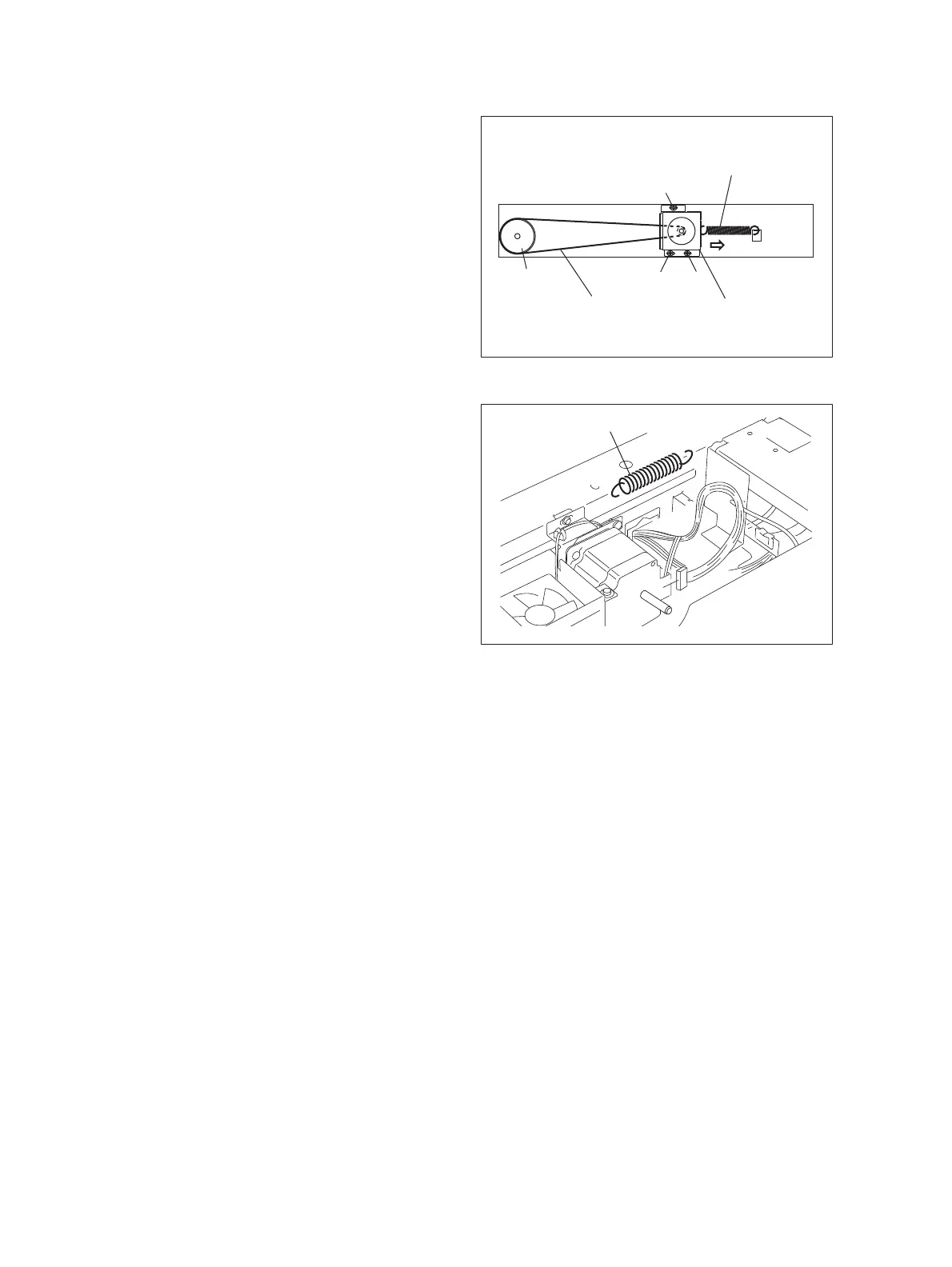

Fig. 3-26
Fig. 3-27
A
B
C
Pulley
Timing belt
Scan motor
Belt tension jig
Belt tension jig
To Next Page
