ADJUSTMENT
3 - 3
(5) When the “Current sensor voltage (V)” in (B) is converged and the “Sensor output control value
(bit value)” corresponding to the value for initial developer material is displayed in (C), the
adjustment is completed.
• When the adjustment is completed, the [ENTER] button is displayed on the screen.

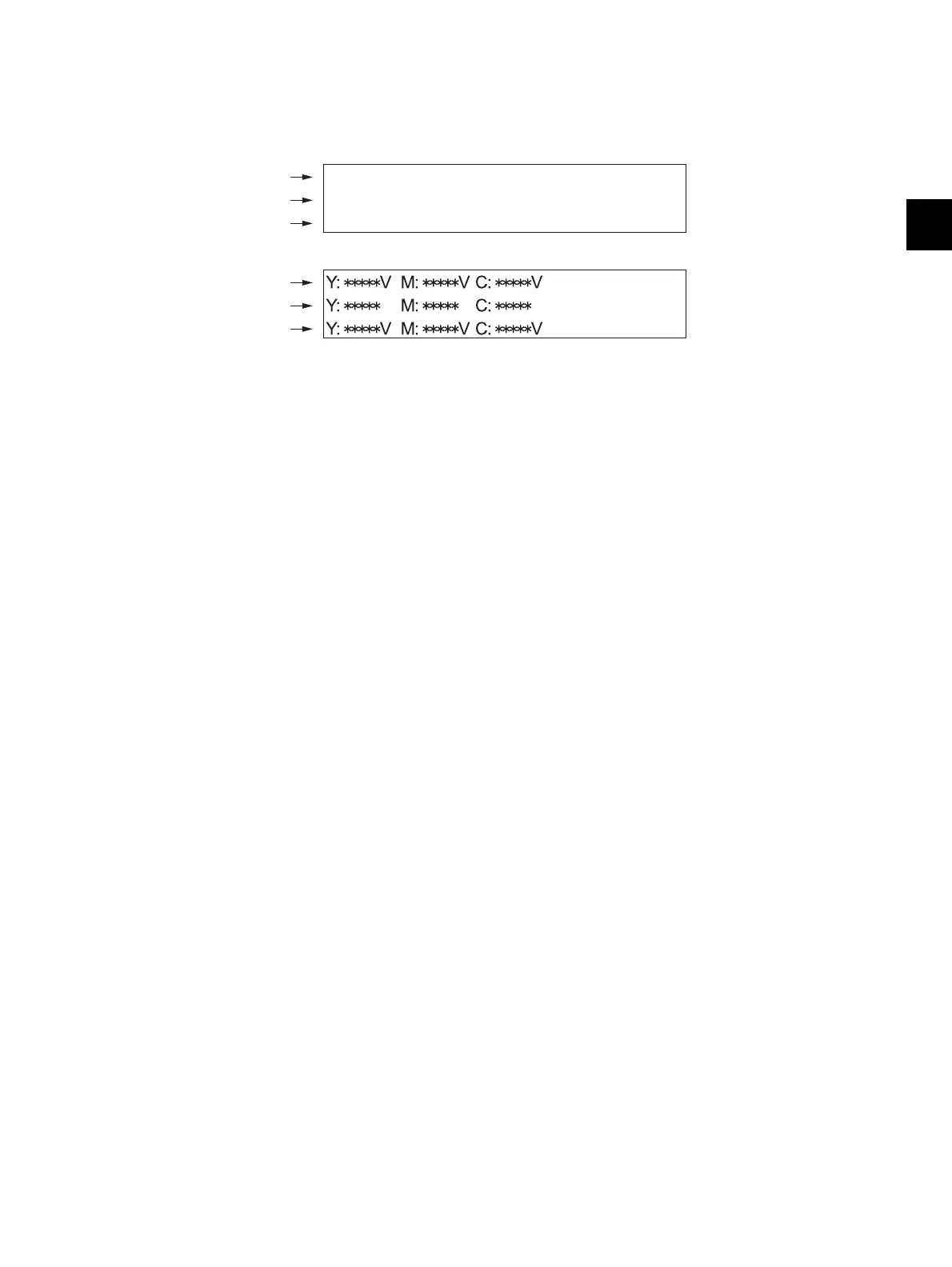

Fig. 3-5
Note:
The values in (A), (B) and (C) vary with humidity.
(6) Press the [ENTER] button to store the adjustment result in the memory.
(7) Turn the power OFF.
(8) Install the toner cartridges.
(
B
)
(
C
)
(
A
)
M: z.zzV C: z.zzV K: z.zzVY: z.zzV
M: x.xxV C: x.xxV K: x.xxVY: x.xxV
M: yyy C: yyy K: yyyY: yyy
e-STUDIO2820C/ 2830C / 3520C / 4520C
(
B
)
: Current sensor voltage
(
V
)
(
A
)
: Target value
(
V
)
for adjustment reference voltage
(
C
)
: Sensor output control value
(
bit value
)
(
B
)
(
C
)
(
A
)
e-STUDIO3530C
K: z.zzV
K: x.xxV
K: yyy
