e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C © 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
7 - 6

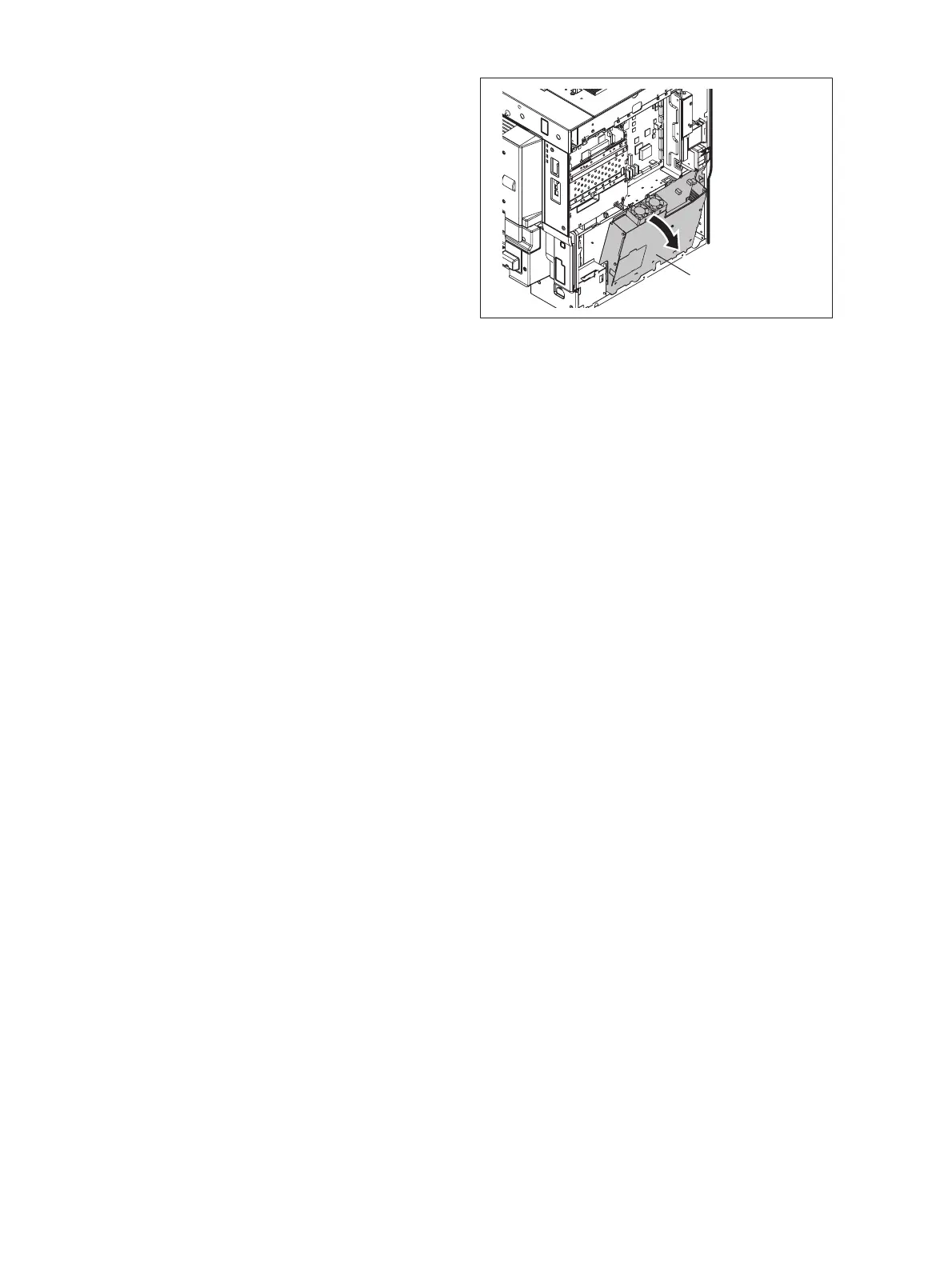

(7) Tilt the switching regulator to the front side
and take it off.
Fig. 7-15
Switching regulator
